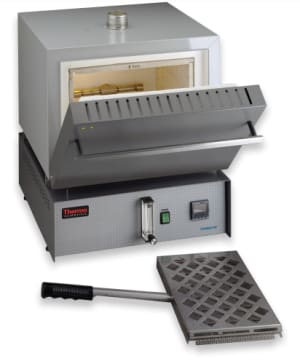

Thermo Thermolyne F30438CM-60 - Atmosphere Controlled Ashing Furnaces, 45 L.

Atmosphere Controlled Ashing Furnaces

• Stainless-steel manifold at rear chamber prewarms incoming gases, provides a maximum temperature gradient of only ±3 °C at 750 °C
• Chamber rear has a 0.25 in. diameter port for monitoring chamber temperatures with independent measuring devices
• Includes hose barb (in back of chamber) for inert gas line with tubing 0.64 cm (0.25 in.) I.D. and 0.96 cm (0.375 in.) O.D
• Thermo Scientific Thermolyne atmosphere controlled ashing furnaces
• Adjustable gas flowmeter/valve (0- 80 L/min.) on front for easy access when adjusting the airflow rate

Achieve consistent temperature control with the Thermo Scientific Thermolyne Atmosphere Controlled Ashing Furnace, which reaches 975°C with the standard stainless-steel manifold and 1093°C with the optional inconel manifold.

Type F6000:

• With two dual-purpose stainless-steel trays and handle to accommodate 24 (30mL) porcelain crucibles or 38 (10mL) quartz crucibles

Type F6000-60:

• Meets ASTM™ D3174 specifications: 3 to 4 air exchanges per min.
• Heating rate of 8°C/min. to 500°C, 6°C/min. from 500° to 750°C
• Holds at 750°C for two hours, then turns off
