| General Specifications |
| Description |

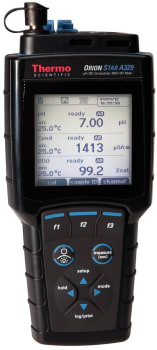

Orion Star A329 pH/ISE/conductivity/RDO/DO portable meter |
| Model |
Orion Star A329 pH/ISE/mV/RmV/ORP/Conductivity/TDS/Salinity/Resistivity/RDO Optical/Dissolved Oxygen/Temperature Portable Meter |
| Item Description |
Orion Star A329 pH/ISE/conductivity/RDO/DO portable meter |
| Includes |
Star A329 pH/ISE/conductivity/RDO/DO meter, 4 AA batteries, literature CD, printed quick start guide, computer interface cable and meter test certificate |
| Range (pH) |
-2.000 to 20.000pH |
| Resolution (pH) |
0.1, 0.01, 0.001pH |
| Accuracy (pH) |
±0.002pH |
| Range (mV) |
±2000.0mV |
| Range (Relative mV) |
±2000.0mV |
| Range (ORP) |
±2000.0mV |
| Resolution (mV) |
0.1mV |
| Accuracy (mV) |
±0.2 mV or ±0.05% of reading whichever is greater |
| Range (ISE) |
0.0001 to 19900 with selectable units of ppm, Molar, mg/L, %, ppb or none |
| Resolution (ISE) |
0.0001 minimum, 1 to 3 significant digits (user selectable) |
| Accuracy (ISE) |
±0.2 mV or ±0.05% of reading whichever is greater |
| Advanced ISE Functions |
Segmented (point-to-point) slope, non-linear selectable auto-blank, low concentration range stability |
| Isopotential Point |
7.000pH |
| Range (Conductivity) |
0.001 µS/cm to 3000 mS/cm |
| Resolution (Conductivity) |
0.001 μS minimum, auto ranging up to 4 significant digits |
| Accuracy (Conductivity) |
0.5% of reading ±1 digit > 3 μS; 0.5% of reading ±0.01 μS ≤ 3 μS |
| Range (TDS) |
0.001 to 200.0 ppm |
| Resolution (TDS) |
0.001 ppm minimum, auto ranging up to 4 significant digits |
| Accuracy (TDS) |
0.5% of reading ±1 digit |
| TDS Factor Range |
Linear (0.02 to 9.99) |
| Range (Salinity) |
0.06 to 80.00 psu, 0.05 to 42.00 ppt |
| Resolution (Salinity) |
0.01 psu or 0.01 ppt minimum, auto ranging |
| Accuracy (Salinity) |
0.5% of reading ±1 digit |
| Salinity Measurement Modes |
Practical salinity (psu) or natural sea water (ppt) |
| Range (Resistivity) |
2 ohm to 100.0 meg-ohm |
| Resolution (Resistivity) |
1 ohm or 0.1 meg-ohm, auto ranging |
| Accuracy (Resistivity) |
0.5% of reading ±1 digit |
| Cell Constant |
0.001 to 199.9cm-1 |
| Temperature Compensation |
Linear, nLFn (non-linear ultra pure water), nLFu (non-linear ultra pure degassed water), EP (off with warning) or off |
| Temperature (Metric) Reference |
5, 10, 15, 20, 25°C |
| Range (Polarographic DO) |
0.00 to 90.00mg/L |
| Resolution (Polarographic DO) |
0.01, 0.1mg/L |
| Accuracy (Polarographic DO) |
±0.2mg/L or ±2% of reading, whichever is greater |
| Range (RDO) |
0.00 to 50.00mg/L |
| Resolution (RDO) |
0.01, 0.1mg/L |
| Accuracy (RDO) |
±0.1mg/L up to 8mg/L, ±0.2mg/L from 8 to 20mg/L, ±10% of reading up to 50mg/L |
| Percent Saturation Range (Polarographic DO) |
0.0 to 600.0 % saturation |
| Percent Saturation Range (RDO) |
0.0 to 500.0 % saturation |
| Percent Saturation Relative Accuracy (Polarographic DO) |
±2 % saturation or ±2% of reading whichever is greater |
| Percent Saturation Relative Accuracy (RDO) |
±2 % saturation ≤ 200 % saturation, ±10 % saturation > 200 % saturation |
| Percent Saturation Resolution (Polarographic DO) |
0.1, 1 % saturation |
| Percent Saturation Resolution (RDO) |
0.1, 1 % saturation |
| Barometric Pressure Correction |
400 to 850mmHg, automatic using built-in barometer or manual entry |
| Pressure Range |
400 to 850mmHg |
| Pressure Resolution |
1mmHg |
| Accuracy (Barometer) |
±6mmHg |
| Salinity Factor |
0.0 to 45.0 ppt, automatic correction using conductivity reading or manual entry of sample salinity |
| Calibration |
pH with calibration editing option, ion concentration (ISE) with calibration editing option, relative mV (RmV), ORP, conductivity with calibration editing option, dissolved oxygen and temperature |
| Calibration Points |
1 point relative mV (RmV) mode, 1 point ORP mode |
| Calibration Points (ISE) |
1 to 5 |
| Calibration Points (Conductivity) |
Up to 5 |
| Calibration Modes |
Water-saturated air, air-saturated water, manual (Winkler titration), zero point |
| Range (Temperature) |
-5.0° to 105.0° C, 22.0° to 221.0° F |
| Resolution (Temperature) |
0.1°C, 0.1°F |
| Accuracy (Temperature) |
±0.1°C |
| Temperature Selection |
Manual or automatic with ATC temperature probe |
| Temperature Probe Calibration |
1 point temperature offset calibration |
| Channels |
3 |
| Display Type |
Graphic LCD with backlight |
| Backlight Option |
Yes, selectable |
| Keypad |
Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys |
| Measurement Modes |
pH, mV, relative mV (RmV) or ORP with temperature; conductivity, TDS, salinity or resistivity with temperature; dissolved oxygen as % saturation or mg/L with temperature and barometric pressure |
| Stability |
Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| Data Management Details |
Transfer single, range or all data points to printer or computer |
| Data Points |
5000 with date and time stamp |
| Log Function Type |
Automatic data logging with Auto-Read and Timed measure modes; manual data logging with Continuous measure mode |
| Memory |
Non-volatile memory preserves data log, calibration log and meter settings |
| Alarm Output |
High/low limit alarm, calibration due alarm |
| Languages |
English, Spanish, French, Italian, German and Chinese; Portuguese and Korean available with software update |
| Inputs |
BNC (pH or ORP electrode), pin-tip (reference electrode), 8 pin MiniDIN (conductivity sensor with built-in temperature or ATC temperature probe), 9 pin MiniDIN (RDO optical or polarographic DO sensor with built-in temperature) |
| Outputs |
USB, RS232 |
| Power Supply |
4 AA batteries (included) or universal AC adapter (sold separately) |
| AC Adapter |
Universal 50-60 Hz, 100-240 VAC power adapter (sold separately, Cat. No. 1010003) |
| Battery Life |
800 hours |
| Battery Type |
Four AA (included) |
| IP Rating |
IP-67 |
| Certifications/Compliance |
CE, TUV 3-1, FCC Class A |
| Temperature (English) Operating |
41° to 113°F (ambient) |
| Temperature (Metric) Operating |
5° to 45° C (ambient) |
| Relative Humidity Range |
5 to 85 %, non-condensing |
| Dimensions (L x W x H) |
24cm x 10cm x 6.5cm (9.5 in. x 3.9 in. x 2.6 in.) |
| Weight (English) |
1.2 lb. |
| Weight (Metric) |
0.5kg |
| Calibration Points (pH) |
1 to 5 |
| Methods |
10 per channel with password protection |
| Warranty |
3 year meter warranty |
| Unit Size |
Each |
