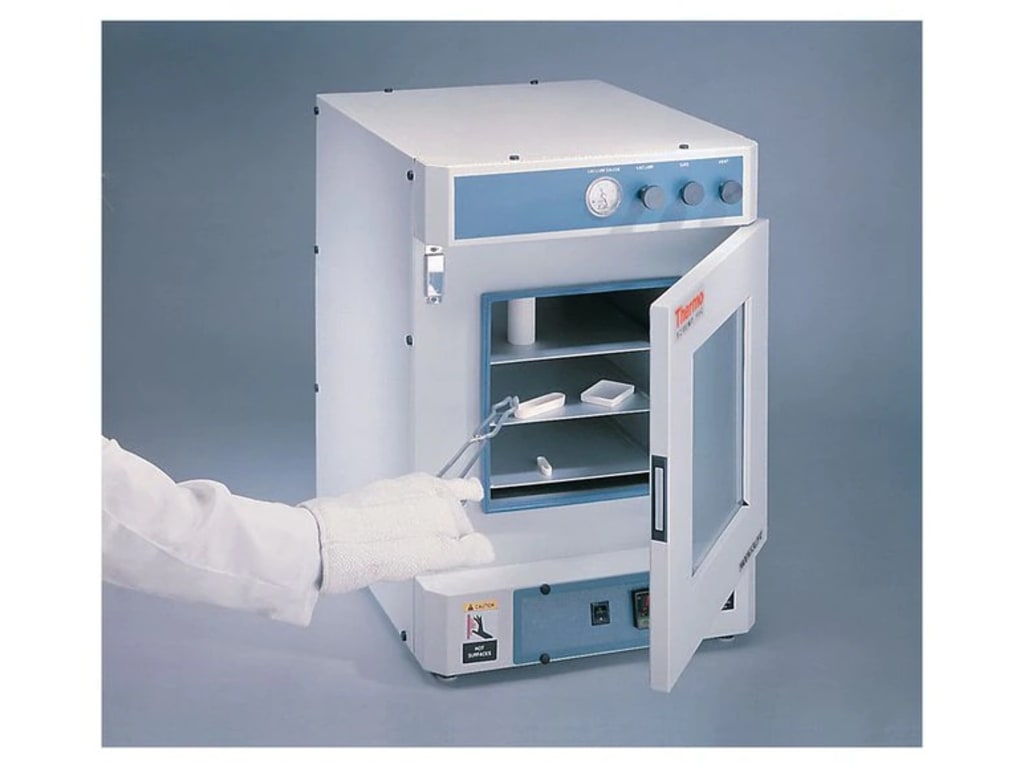

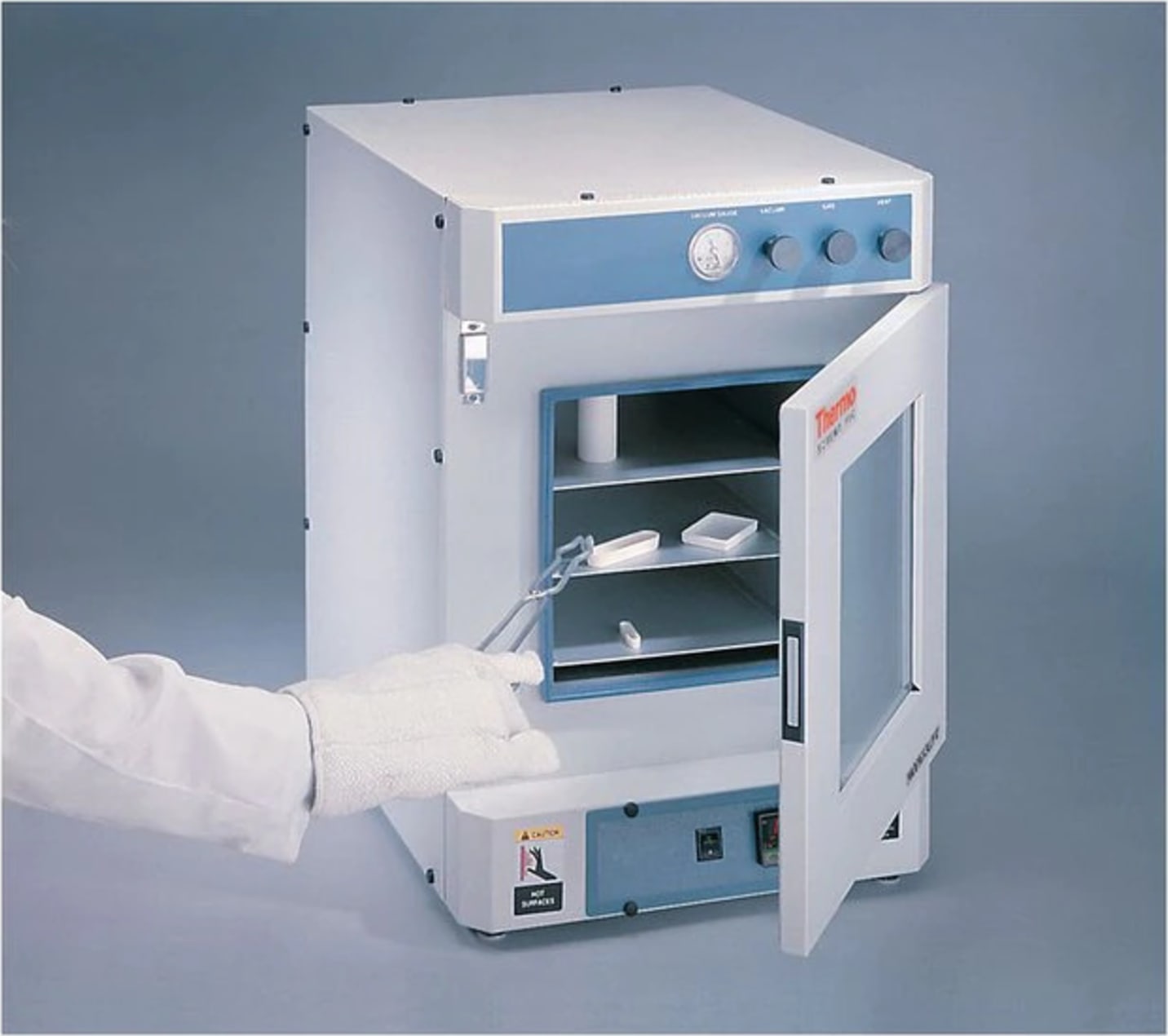

Blue M Vacuum Oven, 42.5L, 260C, Stainless Steel Chamber and Cabinet, 2 Door, 120V 50/60Hz
Developed for industrial, life science and general laboratory use requiring higher performance standards than conventional ovens, Lindberg/Blue M vacuum ovens feature digital controls, laboratory-grade cabinet construction and operational features which offer improved safety, quality, convenience, and high-drying performance.
These ovens work well with a range of applications including drying, curing, outgassing, aging, process control and other applications requiring elevated temperature in reduced atmospheres or vacuum/purge with non-flammable and inert atmospheres.
- 42.5L Chamber Size
- Ambient +6C to 260C
- Stainless Steel Chamber and Cabinet
- 2 Door
- 120V 50/60Hz
- Heating technology: Jacket heating
- Independent over-temperature safety system factory set with reset push-button
- Alternative 3/8in (9.5mm) vacuum connection included
- 1/4in (6.4mm) inert gas connection for non-flammable, non-corrosive inert gases and separate vent port located on the back
- Vacuum, gas, and inlet valves conveniently located on the front
- Vacuum capability: 1.33 mbar
- Aluminum shelves for fast heat transfer; removable
Single-Setpoint Digital Microprocessor Control
- Maximum temperature: 260C (500F) with nominal uniformity of +/-3.5% of setpoint
- Simultaneous LED display of setpoint and actual temperature with push-button view; resolution to within 1C
- Keypad data entry and pull-out control module for easy service
- Independent overtemperature safety system factory set with reset pushbutton
Vacuum System
- 25.4mm (1in) manifold at rear of unit connects to pump (not included) or in-house vacuum source, can also be used as port
- With inert gas injection valve, fresh air inlet, vacuum exhaust port, controllable vacuum release vent port
- 1000 microns (1 torr) capacity
- Vacuum gauge, vacuum, gas, and inlet valves located on front
Construction
- Corrosion-resistant stainless-steel cabinet includes three aluminum shelves with stainless-steel finish
- Rear-mounted vacuum manifold connects to pump (not included) or in-house vacuum source
- Low-watt heating element extends oven life
- Heavy-gauge steel, dual-wall construction with fiberglass insulation for minimum heat loss in walls and door
- High-temperature silicone gasket for a positive seal; Buna N seals available for applications below 150°C that require no silicone
- Magnetic latch for positive door seal (4.5cu.ft. capacity models include mechanical latches)
- Viewing windows: 0.5in (1.3cm) thick in two smaller capacity models or 0.75in (1.9cm) thick in 4.5cu.ft. model; permit observation of work in progress without loss of heat
- Stainless-steel exterior models come with double door—a solid outer door over inner window door
