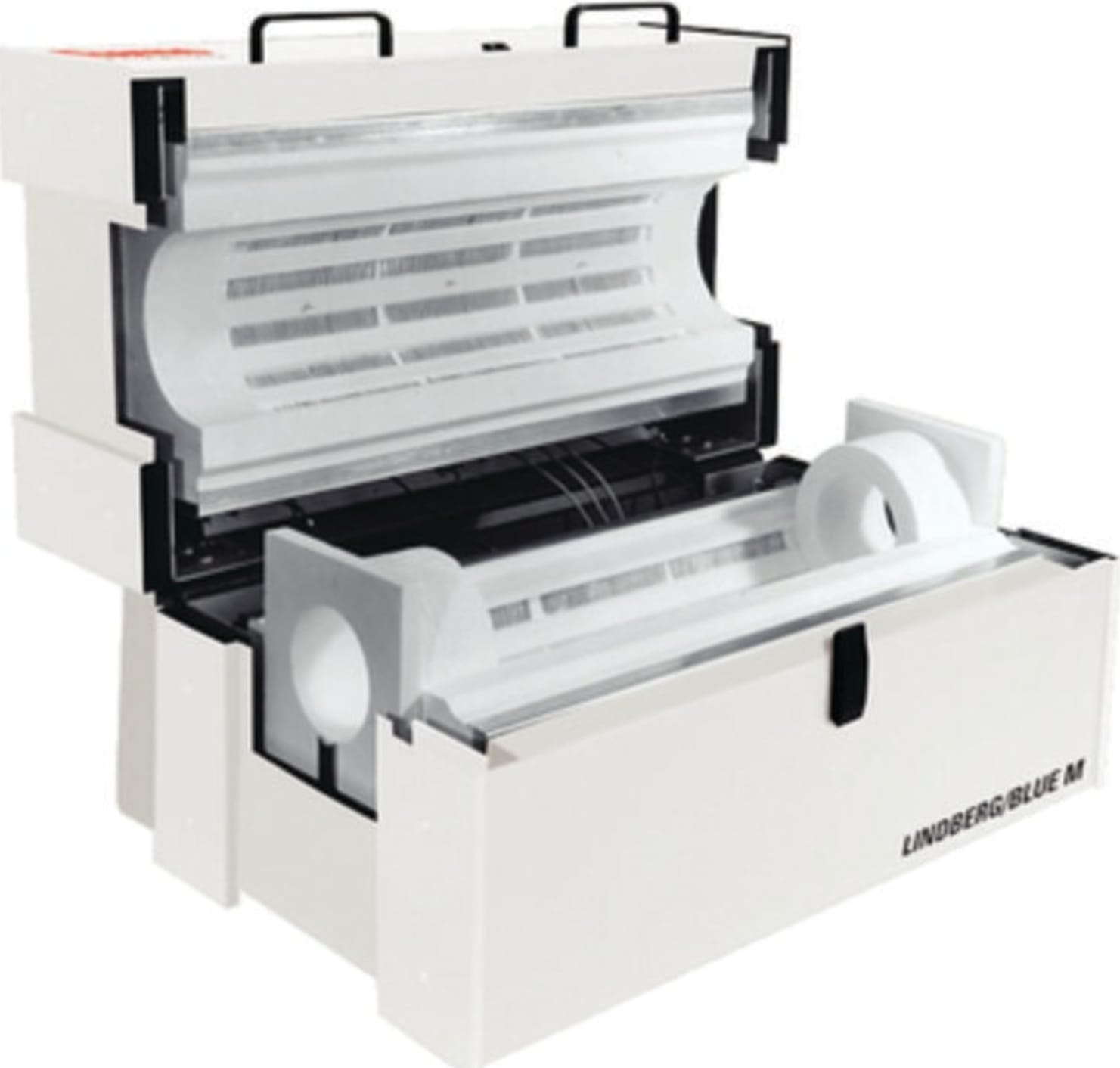

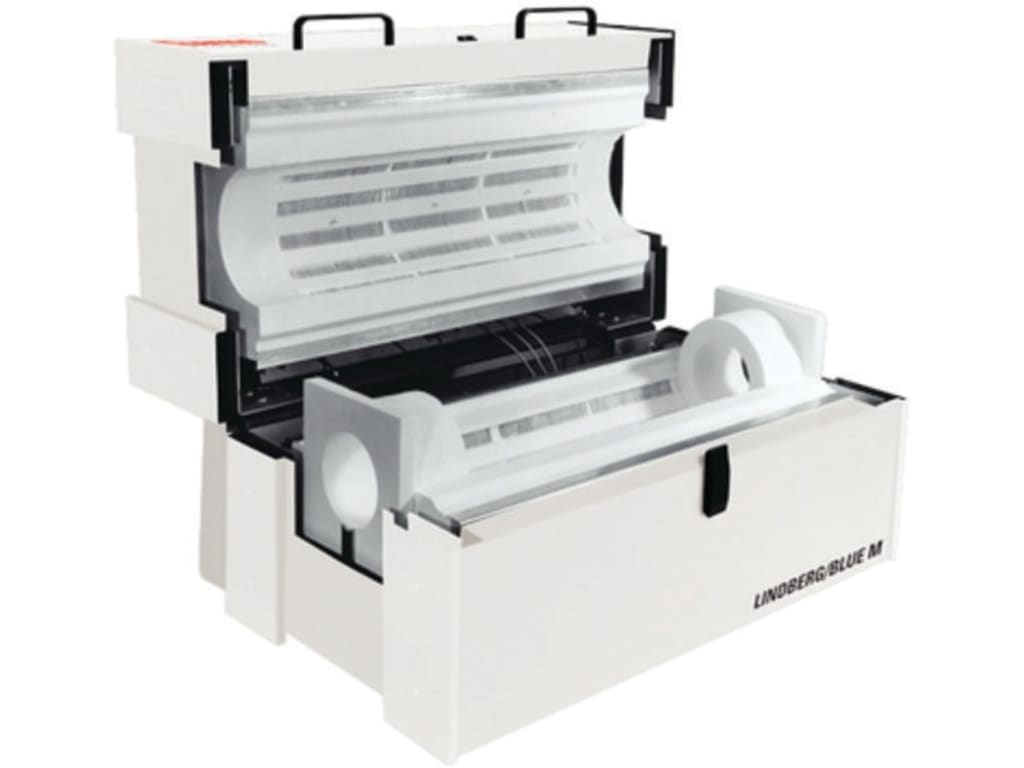

Lindberg/Blue M 100C - 1200C Split-Hinge Tube Furnace, Three Zone 36-Inch, 3in - 6in Tube Diameter, Controller Sold Separately
Configure Thermo Scientific Lindberg/Blue M 1200°C Split-Hinge Tube Furnaces for horizontal or vertical use. Features independent digital temperature control modules (sold separately) which are available in standard or programmable options.
- Moldatherm LGO™ heating element modules for superior radial and linear temperature uniformity and a fast heat up and cool down
- Long-life, energy-efficient elements require little or no maintenance
- Unique cabinet design achieves lower exterior surface temperature
- Heat-reflecting element support assembly creates two highly effective insulating air spaces
- Compact cabinet with high temperature-resistant painted finish
- Accepts interchangeable Moldatherm tube adapters
- Long-life Platinel II thermocouple(s) with 10ft. compensated lead wire and polarized plug
Three Zone Models
- Three independent power circuits (zones) with independent thermocouples for control references
- Full adjustment of each zone over the entire operating range to 1200°C
- Center zone uniformity achieved, and operating length maximized through adjustable profiling of end zones by an independent controller
- Temperature uniformity is achieved with an independent setpoint of end zones higher or lower than center
Applications
- Annealing
- Crystal growing
- Calibration
- Heat treatment
