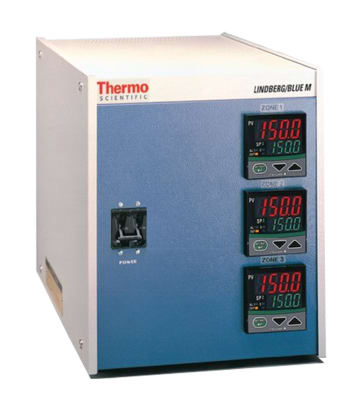

Thermo Scientific CC584343PBC-1, Lindberg/Blue M Controller Console 1200 deg C

• Lindberg/Blue M Controller Console 1200 deg C
• 3-Zone, programmable
• OTC (adjustable overtemperature control)
• Split hinge tube, console 58
• Built-in adjustable high-limit overtemperature protection
• LED simultaneously displays actual temperature vs. setpoint in °C or °F
• Designed for operation on 120, 208, or 240V 50/60Hz, single-phase line

• Adjustable digital control is factory installed
• Protects furnace and load in the event of primary control curcuit failure
• Overrides main controller and shuts off power to furnace if high limit is reached
• Must be manually reset for safety
• Operates via magnetic contacts through a signal from an independent thermocouple

Program segments into Thermo Scientific™ Lindberg/Blue M™ Box and Tube Furnace Controllers for increased temperature accuracy. Features overtemperature control and multiple segment configuration; designed to work with the 1200°C split-hinge and 1500°C box furnaces.

1200°C Three Zone, 16 Segment, Three Programmable Controllers for Split-hinge Furnaces (CC58434PC)

• Center Zone—One microprocessor-based PID programmable control, with one program of 16 segments for ramps (up and down) and eight dwells (timed holds)
• End Zones—Two microprocessor-based PID control, single segment, single setpoint; microprocessers mimic the programmed profile of the center zone controller, but allow a digitally displayed offset up to 100°C

1500°C Digital, Single Program, Multiple Segment Programmable Controllers for Box Furnaces (CC58125PC, CC58125PBC)

• Advanced microprocessor-based PID control, single program with multiple segments for ramp and dwell temperature control
• CC58125PBC includes overtemperature control

1200°C Three Zone, 16 Segment, One Programmable Controller for Split-hinge Furnaces (CC58434C)

• Three microprocessor-based PID controls, single segment, single setpoint, one ramp to set point

1200°C Digital, Single Setpoint Controllers for Split-hinge Furnaces (CC58114PBA, CC58114PA)

• Includes one microprocessor-based PID control, single segment, single setpoint, one ramp to setpoint
• CC58114PBA includes overtemperature control

1500°C Digital, Single Setpoint Controller for Box Furnaces (CC58125C)

• Includes three microprocessor-based PID controls, single segment, single setpoint, one ramp to set point
