Thermo Scientific 083025MD - Dissolved oxygen probe

• 10m Cable Length
• Durable and accurate
• Featuring automatic temperature compensation and convenient screw-on membrane caps
• Dissolved Oxygen Probe, Mini-DIN Connector
• Connection: 9 pin MiniDIN connector

Use this dissolved oxygen probe as the name implies, either in the lab or field. The Thermo Scientific Orion DO Probe for Lab or Field is durable and accurate, featuring automatic temperature compensation and convenient screw-on membrane caps.

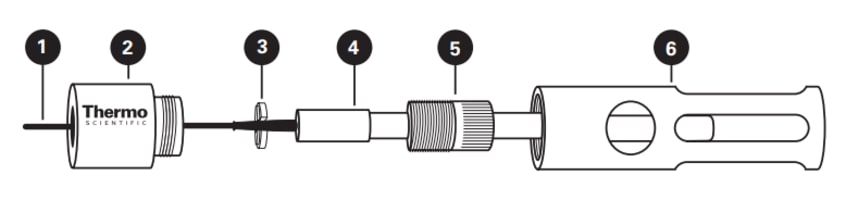

Assembly of the Protective Guard
Insert the probe cable (1) into the slot in the clamping ring (3) with the recessed side placed on the top of the probe cap (4). Insert the probe connector into the threaded side of the retainer (2) and pull the cable through the hole until the clamping ring is seated flush in the retainer. Slide the probe retainer nut (5) over the probe body and screw it into the retainer threads until hand tight. Do not overtighten the probe retainer nut. Screw the probe body sleeve (6) onto the retainer threads until hand tight.

Disassembly of the Protective Guard
Remove the probe body sleeve (6) by unscrewing it. Remove the probe retainer nut (5) from the retainer (2) by unscrewing it. Slide the probe out of the retainer so that the clamping ring (3) can be removed without obstruction. Continue pulling the probe cable (1) through the retainer, taking care not to lose the clamping ring. Slide the clamping ring away from probe cap (4) and off of the strain relief so that it can easily be removed from the probe cable. To prevent loss of components, reassemble the protective sleeve before storing the assembly.

Note: Do not place excessive force on the probe cable when disassembling as this may damage the cable.
