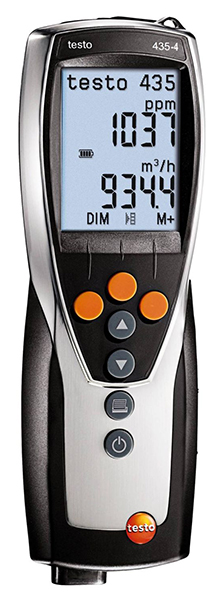

The testo 435-4 multifunction meter is perfect for monitoring, analyzing, and diagnosing indoor air quality issues. Users can easily pinpoint and troubleshoot problems with HVAC systems, immediately seeing the results of actions. Commissioning, validating, benchmarking, or simply adjusting HVAC systems are all easy with the testo 435-4.
The testo 435-4 multifunction meter allows you to carry out all the measurements that are necessary to check and adjust HVAC systems, and to assess the quality of indoor air. The 435-4 accepts a wide variety of probes to measure and record airflow, humidity, temperature, and indoor air quality (IAQ) readings. And with the included ComSoft Software, this data can be organized by location, analyzed, and reported.
Probe dependent menus and selectable user profiles ensure that the testo 435-4 multifunction meter is always ready to use. Easy setup of user defined IAQ and airflow / duct profiles allows for fast measurement of many different tasks. And with a wide variety of probe choices available, the testo 435-4 is ready to handle a vast array of HVAC and IAQ applications. The superb data handling will keep your readings organized and ready, however you need them, whether in a quick printout on-site, or for further analysis and placement into a report.
Improved convenience of operation thanks to user profiles
The operation of testo 435 is easy and efficient - User profiles are stored for the typical applications of duct and IAQ measurement. This makes complicated programming of the instrument unnecessary.
Secure measurement data monitoring
Measurement data reports provide the customer with data from the duct, long-term and degree of turbulence measurement. The company logo can be integrated into the form, and measurement values can be printed on the Testo fast printer.
Flexibility thanks to wireless probes
In addition to classical probes on wires, a wireless measurement up to a distance of 65 feet (without
obstruction) is possible. Damage to the wire or hindrances in usage are thus eliminated. A maximum of
three wireless probes can be recorded and displayed with testo 435. The optional, easily plugged-in
radio module can be retrofitted at any time.
There are several models available in the testo 435 series. The chart below provides an overview of each.
| Connectable probes (optional) |
testo 435-1 |
testo 435-2 |
testo 435-3 |
testo 435-4 |
| IAQ probe for the measurement of CO2, air temperature, indoor air humidity and absolute pressure |
X |
X |
X |
X |
| Thermal flow velocity probe with integrated temperature and air humidity measurement |
X |
X |
X |
X |
| Vane and hot wire probes |
X |
X |
X |
X |
| Temperature probe for immersion/penetration, air and surface measurements |
X |
X |
X |
X |
| Wireless probes for temperature measurements |
X |
X |
X |
X |
| Ambient CO probe |
X |
X |
X |
X |
| Absolute pressure probe |
X |
X |
X |
X |
| Integrated differential pressure measurement for flow velocity measurement with Pitot tube and for monitoring filters (not retro-fittable) |
|
|
X |
X |
| Comfort probe for degree of turbulence measurement for the objective evaluation of the air velocity in a room |
|
X |
|
X |
| Humidity probe for air temperature and air humidity measurements |
|
X |
|
X |
| Wireless probe for air temperature and air humidity measurement |
|
X |
|
X |
| Lux probe for the measurement of light intensity |
|
X |
|
X |
| Temperature probe for determining U-value |
|
X |
|
X |
| Instrument equipment |
| Easy operation with user profiles |
X |
X |
X |
X |
| Illuminated display |
X |
X |
X |
X |
| Testo fast printer for documenting measurement data (optional) |
X |
X |
X |
X |
| Instrument store for 10000 measurement values (not retro-fittable) |
|
X |
|
X |
| PC software for the analysis, archiving and documentation of the readings |
|
X |
|
X |
