testo Saveris System overview
testo Saveris radio probe
Probe versions with internal and external temperature and humidity sensors allow the adaptation to every application. The radio probes are available with or without a display as an option. The memory in the probe ensures that the measurement data is not lost in the event of an interference in the radio link. Current measurement data, the battery status and thequality of the radio link are shown in the display.
testo Saveris router
The radio link can be improved or lengthened with poor structural conditions by using a router. Naturally several routers are possible in the testo Saveris system, but several routers are not connected in series.
Through the connection of a converter to an Ethernet jack, the signal of a radio probe can be converted into an Ethernet signal. This combines the flexible connection of the radio probe with the use of the existing Ethernet even over long transmission paths.
testo Saveris analog coupler
The two versions of the analog coupler (wireless/Ethernet) allow the inclusion of further measurement parameters into the testo Saveris monitoring system, by integrating all transmitters with standardized current/voltage interfaces, e. g. 4 to 20 mA or 0 to 10 V.
testo Saveris base
The base is the heart of testo Saveris and can save 40,000 readings per measurement channel independent of the PC. This corresponds to around one year of memory capacity at a measuring rate of 15 minutes. The system data and alarms are visible via the display of the Saveris base.
- Display for showing alarms and system data
- Large data memory
- Issue of alarms via LED/relay
- SMS alarm (optional)
- Emergency battery integrated
- Up to 150 probes can be connected
- Connection option via USB or Ethernet
testo Saveris software
The testo Saveris software offers simple operation and an intuitive user interface. The Saveris software is available in two different versions: as the basic version SBE (Small Business Edition) or the PROF (Professional) software version with diverse additional options, or as a CFR version. The CFR software fulfils the requirements or 21 CFR Part 11 of the FDA, and is thus validatable.

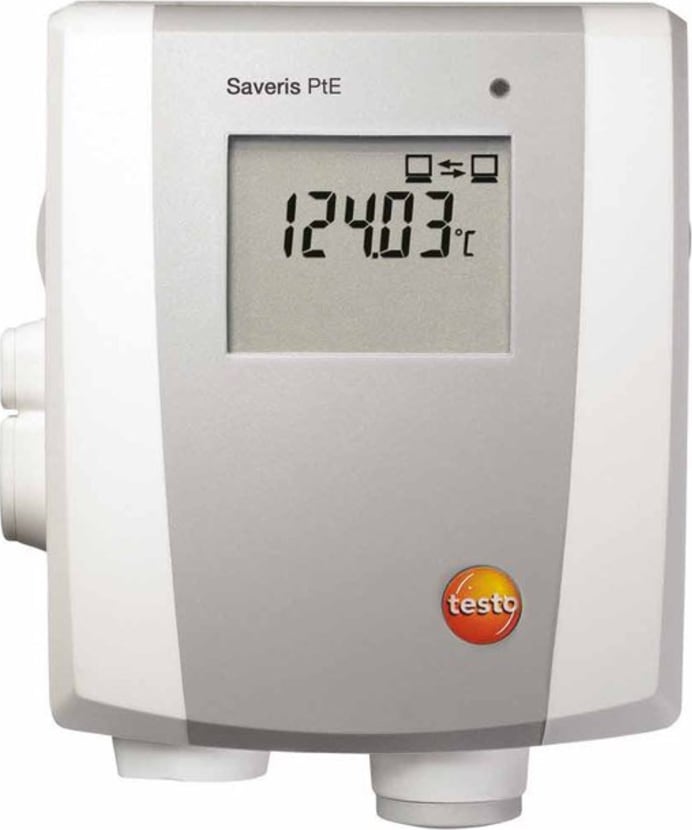

testo Saveris Ethernet probe
In addition to the wireless probes, probes can be used which are directly connectable to the Ethernet. This allows the existing LAN infrastructure to be used, making data transfer from the probe to the base possible, even over long distances.
By connecting a converter to an Ethernet socket, the signal from a wireless probe can be converted to an Ethernet signal. This combines the flexible positioning of a wireless probe with the use of the existing Ethernet even over long transfer distances.
|
