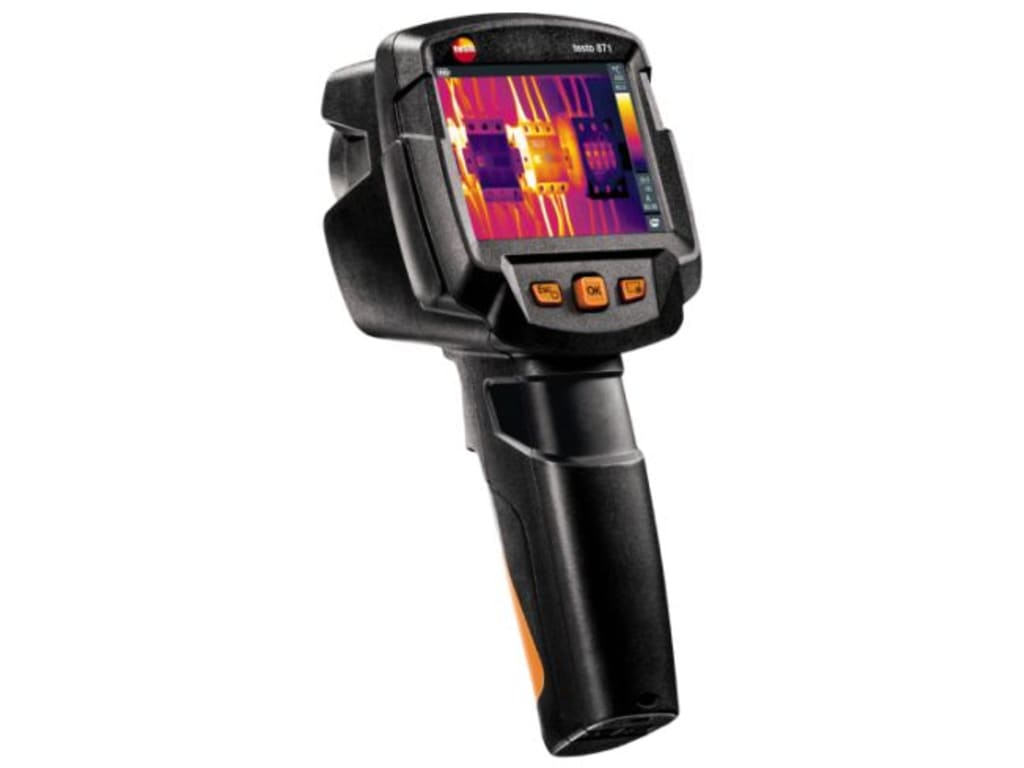

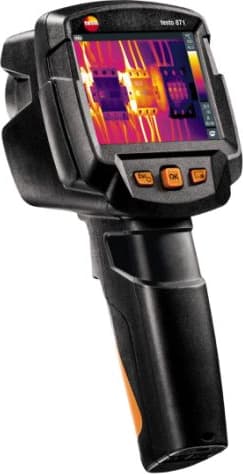

The Testo 871 thermal imager combines high infrared resolution with professional measuring performance and easy handling. Its’ high-quality pixel detector, an integrated digital camera, and innovative functions are the features that impress. The Testo Thermography App enables Testo 871 to offer smart thermography to meet professional requirements in industry and trade. Generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, Testo ɛ-Assist and Testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (E) and reflected temperature (RTC) for building thermography, but also of the color scale.
The Testo 871 delivers even more informative thermal images in combination with the compatible 770-3 clamp meter and the Testo 605i thermohygrometer. Both are available separately. The measurement results of both measuring instruments can easily be transmitted via Bluetooth. The additional output, current, and voltage values of the Testo 770-3 clamp meter enable better interpretation of measured temperatures. Measure the air temperature and humidity with the Testo 605i and easily detect locations at risk of developing mold using the special humidity palette in the thermal imager via the traffic light principle.
Technical highlight of the Testo 871 Thermal Imager
- 43,200 temperature measuring points for precise thermography
- Detecting temperature differences from 0.09°C
- Wirelessly integrate the readings of Testo 770-3 clamp meter and 605i thermohygrometer
- The built-in digital camera generates a real image in parallel to the thermal image
- Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
- The IFOV warner means the distance from the measurement object/measurement spot size is determined and the measurement spot is shown on the thermal image
Testo E-Assist
For precise thermal images, it is important to set the emissivity (E) and the reflected temperature of the object being examined in the imager. Previously, this was complicated, and with regard to the reflected temperature, less than accurate. This changes with Testo E-Assist: Simply attach one of the reference stickers included in delivery to the measurement object. Via the integrated digital camera, the thermal imager recognizes the sticker, determines the emissivity and reflected temperature, and sets both values automatically.
Testo ScaleAssist
Since the temperature scale and coloring of thermal images can be adapted individually, it is possible that the thermal behavior of a building, for example, can be wrongly interpreted. The Testo ScaleAssist function solves this problem by adjusting the color distribution of the scale to the interior and exterior temperature of the measurement object and the difference between them. This ensures objectively comparable and error-free thermal images
Testo Thermography App
With the Testo Thermography App, your smartphone/tablet becomes a second display and remote control for your thermal imager. In addition to this, you can use the app to create and send compact reports on site, and to save them online
Testo SuperResolution
The patent-pending SuperResolution technology improves the thermal image quality of images taken with a Testo thermal imager by a downloadable software-based upgrade. With SuperResolution, thermal images will show 4x higher resolution, and quadruple the number of recorded temperature points, ensuring high detail thermal images when viewed through IRSoft. Using a pixel shift technology based on natural hand movement, SuperResolution will easily display smaller image points, even if the images were captured from a larger distance.
Please click here for technical specifications.
