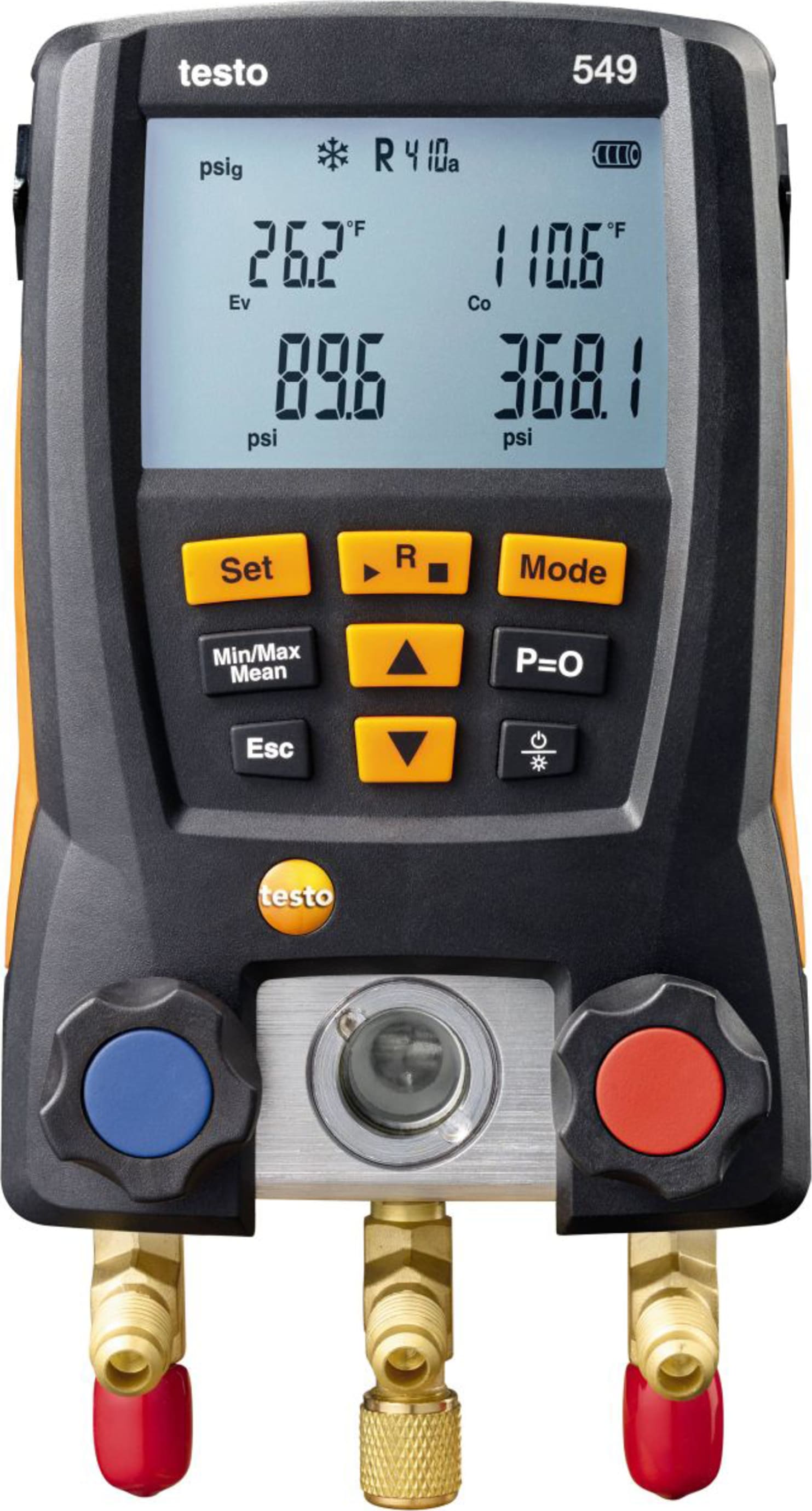

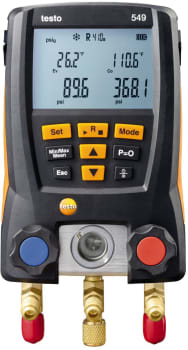

Testo 549 - Digital Manifold

Name: Testo 549 - Digital Manifold
Brand: Testo
SKU: Testo549
Price: 305.15 USD
Availability: InStock
Rating: 4.00 (1 reviews)

4 (1 Review) | Catalog: 0560 0550 | UPC: 4029547013386 | Model: Testo 549

Compare

testo 549 Digital Manifold

Measures high side / low side pressure and displays saturation / evaporation temperatures
2-way valve block with three connections and sight glass
60 refrigerant profiles stored in the instrument
Large 2-line backlit display
2 year warranty - 3 years additional with registration
Does not include temperature clamps

View Product Details

List Price: $359.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Testo 549

Testo 0516 0012 Case for549/550/557

Catalog: 0516 0012

(0)

In Stock!

Add to Cart

Yellow Jacket 15060 HCA-60 HEAVY DUTY HOSE

Catalog: 15060

(0)

In Stock!

Add to Cart

Yellow Jacket 21985 1/4" PLUS II Hose set - 5 Feet, 1/4" Standard Flare Fitting,...

Catalog: 21985

(1)

In Stock!

Add to Cart

Yellow Jacket 22985 1/4" PLUS II Hose set - 5 Feet, Seal Right Low Loss Anti-Blow Back...

Catalog: 22985

(5)

In Stock!

Add to Cart

Yellow Jacket 25980 3-PAK BALL VALVE HOSE RYB

Catalog: 25980

(1)

In Stock!

Add to Cart

Yellow Jacket 25985 1/4" PLUS II Hose set - 5 Feet, Flex Flow Valve, includes one Red,...

Catalog: 25985

(0)

In Stock!

Add to Cart

Yellow Jacket 29985 1/4" PLUS II Hose set - 5 Feet, Compact Ball Valve, includes one...

Catalog: 29985

(7)

In Stock!

Add to Cart

Testo 0554 5570 2-valve manifold field service kit

Catalog: 0554 5570

(1)

In Stock!

Add to Cart

Yellow Jacket 60610 60613 WITH 60609 ADAPTER

Catalog: 60610

(2)

In Stock!

Add to Cart

Testo 0613 4611 Pipe wrap NTC probe with Velcro, for pipe diameter up to 3 in., NTC,...

Catalog: 0613 4611

(0)

In Stock!

Add to Cart

Testo 0613 5505 Clamp probe NTC for pipes from 1/4 inch to 1 1/3 inch

Catalog: 0613 5505

(0)

In Stock!

Add to Cart

Testo 0613 5506 Clamp probe 5m 549/550/557/570

Catalog: 0613 5506

(0)

In Stock!

Add to Cart

Testo 0613 5605 Clamp probe NTC for pipes from 1/4 inch to 2 1/2 inch

Catalog: 0613 5605

(0)

In Stock!

Add to Cart

Yellow Jacket 18975 1/4 CORE/VACUUM/CHG TOOL

Catalog: 18975

(6)

In Stock!

Add to Cart

Testo 549 - Digital Manifold

Measures high side / low side pressure and displays saturation / evaporation temperatures
2-way valve block with three connections and sight glass
60 refrigerant profiles stored in the instrument
Large 2-line backlit display
2 year warranty - 3 years additional with registration
Does not include temperature clamps

The testo 549 sets new standards in performance and durability making it a breakthrough value. Digital accuracy assures that you have reliable readings on every job. The versatility of 60 on-board refrigerants means it is the only gauge that you need. The proven, rugged design will give you years of dependable service. With optional temperature probes the testo 549 provides accurate, real-time superheat and sub-cooling at the push of a button.

Products in comparison	Analog	testo AC & refrigeration test kit	testo 549	testo 550	testo 557	testo 570
Identical pressure measuring range HP/LP	–	up to 870 psi	up to 870 psi	up to 870 psi	up to 870 psi	up to 870 psi
Pressure measurement accuracy	> 1 psi	< 0.5 psi	< 0.5 psi	< 0.5 psi	< 0.5 psi	< 0.5 psi
Integrated temperature measurement	–	✔	✔ (up to 2 temp probes)	✔ (up to 2 temp probes)	✔ (up to 2 temp probes)	✔ (up to 3 temp probes)
Four-way valve manifold	Product-dependent	..	..	..	✔	✔
Internal memory, documentation	–	With the App	With the App	With the App	With the App	✔
Refrigerants stored	max. 4	> 80	60	60	60	40
Refrigerant update by customer	–	Possible on site via App	..	Possible on site via App	Possible on site via App	Via testo EasyKool software
Automatic absolute pressure measurement	–	..	..	..	✔	✔
Heat pump mode	–	..	✔	✔	✔	✔
Temperature compensated leakage testing	–	..	✔	✔	✔	✔
Vacuum measurement	–	..	indication	indication	Highly precise, with external probe	accurate and robust
Via testo EasyKool software	–	..	..	..	..	✔
App and Bluetooth	–	✔	..	✔	✔	..

Technical Data
Operating temperature	-4° to 122 °F (-20 to +50 °C)
Storage temperature	-4° to 140 °F (-20 to +60 °C)
Battery life (4 x AA)	250 h (without backlight)
Dimensions	7.9" x 4.3" x 2.5" (200 x 109 x 63 mm)
Weight	2.8 lb (1060 g)
Protection class	IP42 (splash proof)
Refrigerants in the instrument	60 profiles: R11, R12, R123, R1234yf, R1234ze, R125, R13B1, R134a, R14, R142B, R152a, R161, R22, R227, R23, R290, R32, R401A, R401B, R401C, R402A, R402B, R404A, R406A, R407A, R407B, R407C, R407D, R407F, R408A, R409A, R410A, R411A, R412A, R413A, R414B, R416A, R417A, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R424A, R426A, R427A, R434A, R437A, R438A, R502, R503, R507, R508A, R508B, R600, R600a, R744 (CO2), R718 (H2O)
Warranty	2 years; 5 years with registration

	Pressure	Temperature (option)	Vacuum (indication)
Measuring range	-14.7 to 870 psi (-1 to 60 bar)	-58 to 302° F (-50 to +150 °C)	-14.7 to 0 psi (-1 bar to 0 bar)
Accuracy (at 70 °F)	±0.5 % fs	±.9° F (±0.5 °C)	-
Resolution	0.1 psi (0.01 bar)	0.1° F (0.1 °C)	-
Connections	1/4"	2 x plug-in (NTC probes)	-
Overload	940 psi (65 bar)	-	-

Tech Specs

Test Equipment General Attributes
Product Height	4.00 IN
Product Length	14.00 IN
Product Width	10.00 IN
HTS/Schedule B Number	90262020000
ECCN Number	EAR99
Country of Origin	China
Shipping Height	4.00 IN
Shipping Length	14.00 IN
Shipping Width	10.00 IN

4

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

testo presto

4.0

good manifold gauge. I do think it should cone with temp. clamps.

jeremy on May 08, 2017
