Testo 440 Vane Kit (16mm, 0.63")

Name: Testo 440 Vane Kit (16mm, 0.63")
Brand: Testo
SKU: Testo440 16mm Vane
Price: 748.00 USD
Availability: InStock

0 reviews | Catalog: 0563 4401 | UPC: 4029547019371 | Model: Testo 440 16mm Vane

Testo 440 Vane Kit (16mm, 0.63") - Part number 0563 4401

Images (6) | Videos (5)

Compare

testo 440 16 mm Vane Kit

440 vane kit
Includes 16mm vane (0.63")
Used to measure air velocity and volume flow in ventilation ducts
Low maintenance, easy to use, and maximizes convenience when adjusting air conditioning and ventilation systems
Many configurations available - see Q&A section on this page for more information
Large variety of accessory probes available

View Product Details

List Price: $880.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Printers and Printing Supplies

for the Testo 440 16mm Vane

Testo 0554 0621 testo BLUETOOTH / IRDA printer

Catalog: 0554 0621

(0)

In Stock!

Add to Cart

Testo 440 Vane Kit (16mm, 0.63")

Used to measure air velocity and volume flow in ventilation ducts
Low maintenance, easy to use, and maximizes convenience when adjusting air conditioning and ventilation systems

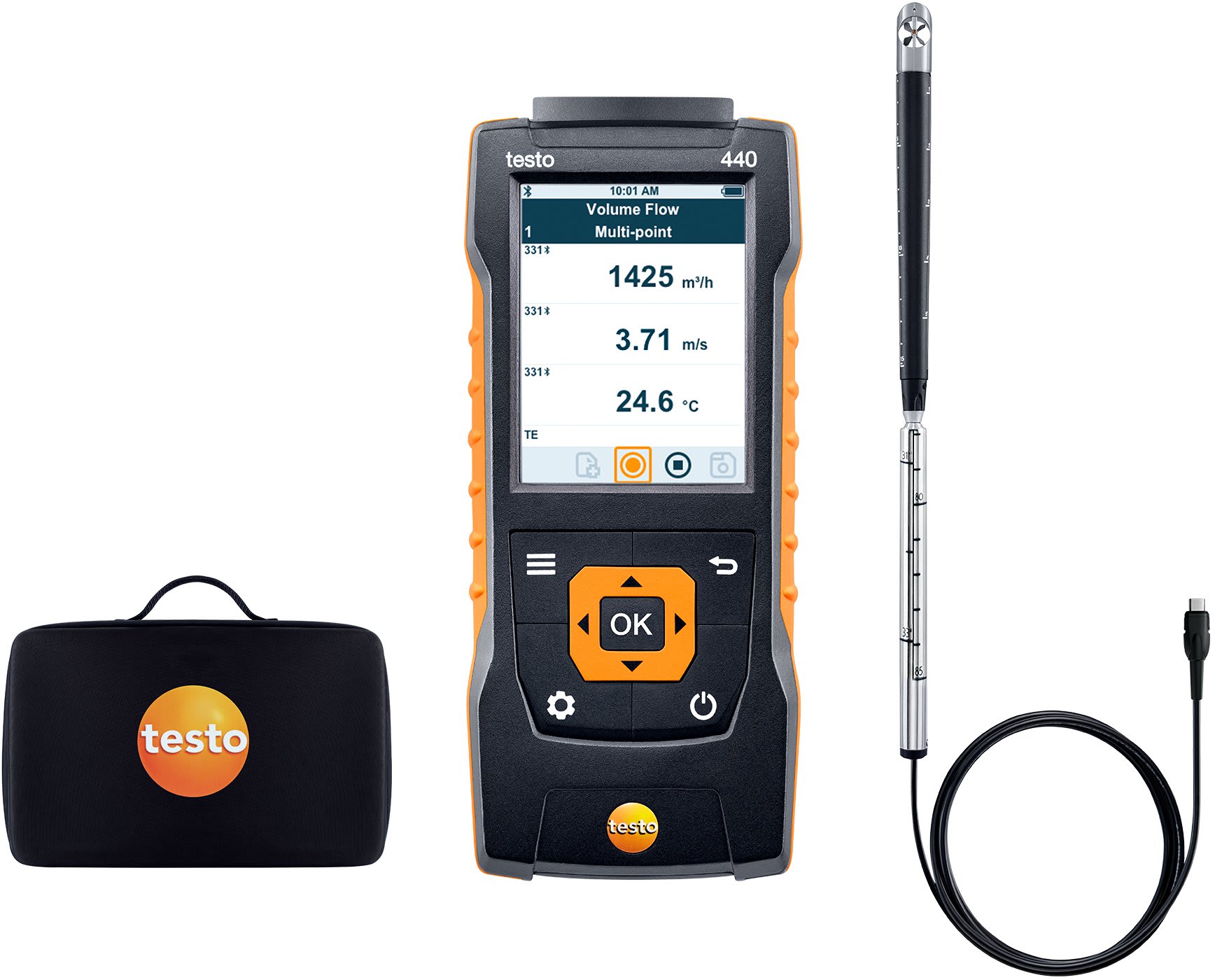

The Testo 440 16mm vane kit is great for carrying out measurements in ventilation ducts. The testo 440 air velocity and IAQ measuring instrument and its vane probe (Ø 0.63") can all be safely stored in the included case.

Intuitive: Clearly structured measurement menus for volume flow and determination of air velocity in ventilation ducts
Convenient: Integrated telescope with scaling can be extended up to 2.8 feet, making it easy to carry out all kinds of measurements
Reliable: Internal memory for data storage and USB port for data export
Versatile: Your testo 440 setup can be expanded with a large selection of digital probes

Testo 440 air velocity and IAQ measuring instrument:

No task is too challenging, no application too specific - the testo 440 combines a compact handheld measuring instrument with intuitive measurement menus and a wide selection of air velocity and IAQ probes (probes sold separately)
Clearly structured measurement menus - volume flow is calculated precisely, thanks to convenient inputs for the size and geometry of a duct's cross-section. Displays timed and multi-point mean calculation, average volume flow, current reading, and maximum / minimum values
Other practical measurement menus, e.g. long-term measurement, volume flow measurement with a funnel, etc.
Easy storage and evaluation of measurement data - internal memory for up to 7,500 measurement protocols, which can be read via USB port and further processed as a CSV file on the computer (e.g. with Excel)
Practical rear magnets for secure attachment of the measuring instrument to metal surfaces (e.g. ducts)
Automatic detection of probes, e.g. hot wire probe
Large, backlit color display

Temperature - NTC
Measuring range	-40.0° to 302.0 °F / -40 to +150 °C
Accuracy	±1 °F (-40° to -13.2 °F) / ±0.4 °C (-40 to -25.1 °C) ±0.5 °F (-13° to 166.8 °F) / ±0.3 °C (-25 to 74.9 °C) ±0.7 °F (167° to 211.8 °F) / ±0.4 °C (75 to 99.9 °C) ±0.5 % of mv (Remaining Range)
Resolution	0 °F / 0.1 °C
Temperature - Type K TC
Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
Accuracy	±(0.5 °F + 0.3 % of mv) / ±(0.3 °C + 0.3 % of mv)
Resolution	0 °F / 0.1 °C
General technical data
Dimensions	6.1 x 2.6 x 1.3 in. / 154 x 65 x 32 mm
Operating temperature	-4.0° to 122.0 °F / -20 to +50 °C
Connectable probes	1 x digital probe with cable or 1 x Temperature NTC TUC, 1 x digital Bluetooth probe or testo Smart Probe, 1 x Temperature TC Type K
Battery type	3 x AA 1.5 V
Battery life	12 h (typically vane measurement)
Data transfer	Bluetooth®; USB interface
Storage temperature	-4.0° to 122.0 °F / -20 to +50 °C
Weight	8.8 oz./ 250 g

Tech Specs

Test Equipment General Attributes
Product Height	5.00 IN
Product Length	18.00 IN
Product Width	13.00 IN
Shipping Weight	4.24 LBS
HTS/Schedule B Number	90268020000
ECCN Number	EAR99
Country of Origin	China
Shipping Height	5.00 IN
Shipping Length	18.00 IN
Shipping Width	13.00 IN

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

These packages all contain the Testo 440 or 440dP, but are offered with a variety of different probes and accessories. The following is an overview of each system: •440 100mm Vane BT •Part number 0563 4403 •testo 440 100 mm Vane Kit with Bluetooth •Includes 100 mm vane probe with Bluetooth, incl. temperature sensor •440 16mm Vane •Part number 0563 4401 •testo 440 16 mm Vane Kit •Includes Vane probe, fixed cable (1.8 m) with telescope (0.85 m) •440 Airflow Kit 1 BT •Part number 0563 4406 •testo 440 Air Flow ComboKit 1 with Bluetooth •Includes 100 mm vane probe with Bluetooth, incl. temperature sensor •Includes Hot wire probe with telescope (0.85 m) incl. temperature sensor, fixed cable (1.8 m) •440 Airflow Kit 2 BT •Part number 0563 4407 •testo 440 Air Flow ComboKit 2 with Bluetooth •100 mm vane probe with Bluetooth, incl. temperature sensor •16 mm vane probe with telescope (0.85 m), fixed cable (1.8 m) •440 CO2 BT •Part number 0563 4405 •testo 440 CO2 Kit with Bluetooth •Includes CO2 probe with Bluetooth, incl. temperature and humidity sensor •440 Delta P Kit 1 BT •Part number 0563 4409 •testo 440 delta P Air Flow ComboKit 1 with Bluetooth •Includes the following: •Universal probe handle with Bluetooth •Hot wire probe head incl. temperature and humidity sensor •100 mm vane probe head incl. temperature sensor •Telescope (1 m) and 90° angle to fit both probes •440 Delta P Kit 2 BT •Part number 0563 4410 •testo 440 delta P Air Flow ComboKit 2 with Bluetooth •Includes the following: •Universal probe handle with Bluetooth •16 mm vane probe head •100 mm vane probe head incl. temperature sensor •Humidity probe head incl. temperature sensor •Telescope (1 m) and 90° angle for both probes •440 Hot Wire •Part number 0563 4400 •testo 440 Hot Wire Kit •Includes Hot wire probe incl. temperature sensor, fixed cable (1.8 m) with telescope (0.85 m) •440 Humidity BT •Part number 0563 4404 •testo 440 Humidity Kit with Bluetooth •Includes humidity and temperature probe with Bluetooth •440 Indoor BT •Part number 0563 4408 •testo 440 Indoor Comfort ComboKit with Bluetooth •Includes the following: •Turbulence probe (400mm) •CO2 probe with Bluetooth, incl. temperature and humidity sensor

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous
