Testo 400563 417N Rotating Vane Anemometer Kit with NIST Certification

Name: Testo 400563 417N Rotating Vane Anemometer Kit with NIST Certification
Brand: Testo
SKU: Testo417-LG KIT -NIST
Price: 437.75 USD
Availability: InStock

0 reviews | Catalog: 417-LG KIT -NIST | UPC: 029547003769 | Model: Testo 417-LG KIT -NIST

Compare

417 Large Vane Anemometer Kit with NIST cert.

Soft carrying case for worry-free transportation
Air velocity, CFM, and temperature measurements
Multi-point and timed average calculations for in-duct readings
Bright backlit display provides easy viewing in any environment
Measurement of flow velocity, volume flow and temperature
Recognition of flow direction
Point and timed mean value calculation
Max./min. values
Hold button for freezing measurement value
Display illumination
Auto-off function
Resolutions of 0.01 fpm, and .01 cfm, ensure accurate readings with this air flow meter
Quality design and construction for dependable use day after day
Timed average calculations ensure accurate readings when encountering eddys

View Product Details

List Price: $515.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Cases
General Accessories

for the Testo 417-LG KIT -NIST

Testo 0516 0210 Zip style case (no longer available)

Catalog: 0516 0210

(0)

In Stock!

Add to Cart

Testo 0563 4170 Flow Funnel Kit for low flow measurments (< 50 CFM) (8 inch round and...

Catalog: 0563 4170

(0)

In Stock!

Add to Cart

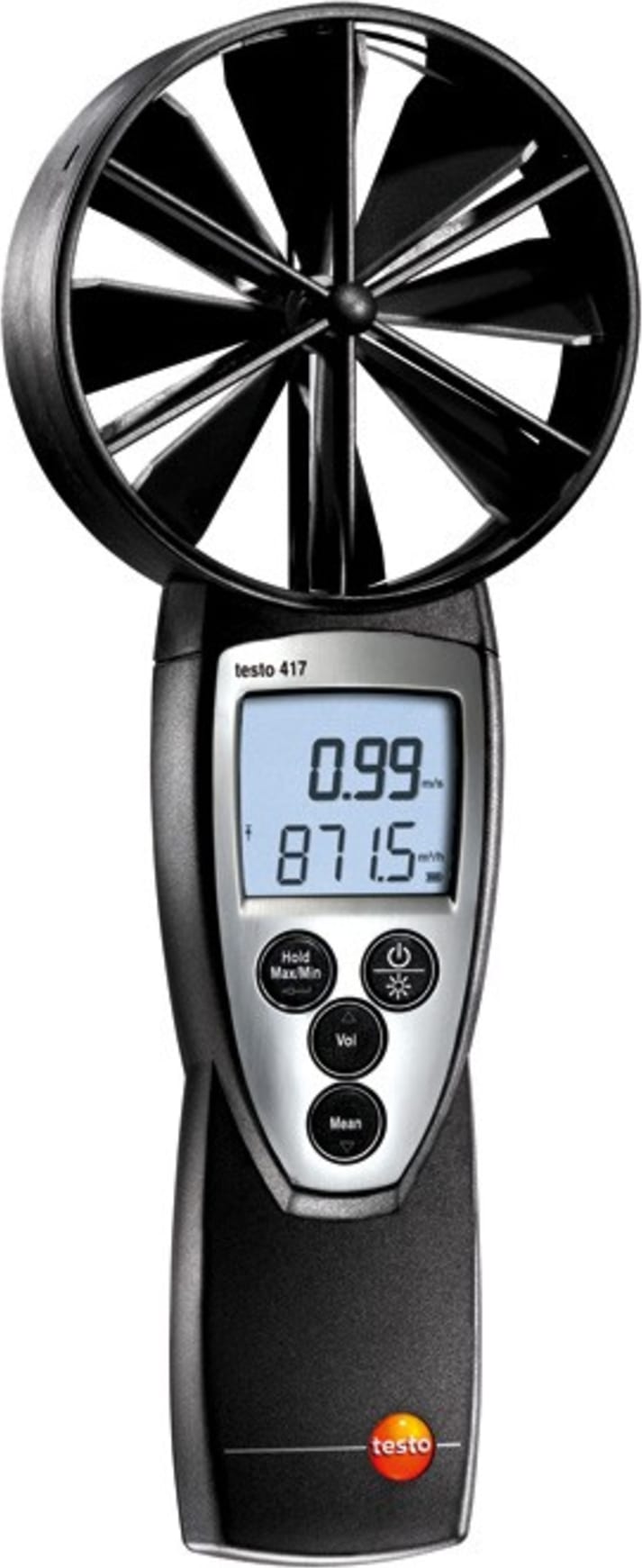

Testo 400563 417N Large Rotating Vane Anemometer Kit with NIST Cert.

The testo 417 rotating vane anemometer has a 4 inch vane, allowing for precise readings of air velocity, CFM, and temperature on its easy to read display. By inputting duct measurements into the 417, volume flow calculations can automatically be displayed. With the capability of quickly switching between air velocity and temperature, using the testo 417 RVA is a breeze.

With readings of up to 4,000 fpm and the attached large vane, the testo 417 rotating vane anemometer kit is ideal for collecting reliable measurements for air velocity, CFM, and temperature at both supply and return grills. The included soft carrying case ensures the air flow meter is protected against light drops and the elements.

Testo 400563 417N Large Rotating Vane Anemometer Kit with NIST Cert. Specifications

Temperature - NTC
Technical data
Measuring range	32° to 122 °F / 0 to +50 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Velocity - Vane anemometer
Technical data
Measuring range	+0.3 to +20 m/s
Accuracy	±(0.1 m/s + 1.5 % of remaining measurement value)
Resolution	0.01 m/s
Volume flow
Technical data
Measuring range	0 to +99999 m³/h
Resolution	0.1m³/h (0 to +99.9 m³/h) 1 m³/h (+100 to +99999 m³/h)
General technical data
Housing	ABS
Warranty	2 years
Battery type	9V block battery, 6F22
Battery life	50 h
Dimensions	11 x 4 x 2 in. / 277 x 105 x 45 mm
Operating temperature	32° to 122 °F / 0 to +50 °C
Storage temperature	-40° to 185 °F
Weight	8 oz. / 230 g

Tech Specs

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Type (anemometer)	Vane
Measurement (anemometer)	m/s
Air Velocity Max	20 mps (0.1016 ft/min)
Air Velocity Min	0.3 ft/min
Accuracy Air Velocity	±(0.1 m/s + 1.5 % of remaining measurement value)
Humidity	No
Temperature	Yes
Dew Point	No
Windchill	No
Light Meter	No
Water Proof	No
Min/Max Display	Yes
Data Hold	Yes
Thermal Printer Option	No
Test Equipment General Attributes
Unique Features	Measurement of flow velocity, volume flow and temperature Recognition of flow direction Point and timed mean value calculation Max./min. values Hold button for freezing measurement value Display illumination Auto-off function
Warranty	2 YEARS
Product Weight	230 GRAMS (0.5071 LBS)
Product Height	11 IN
Product Length	4 IN
Product Width	2 IN
Calibration Included	NIST Calibration
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	Germany
