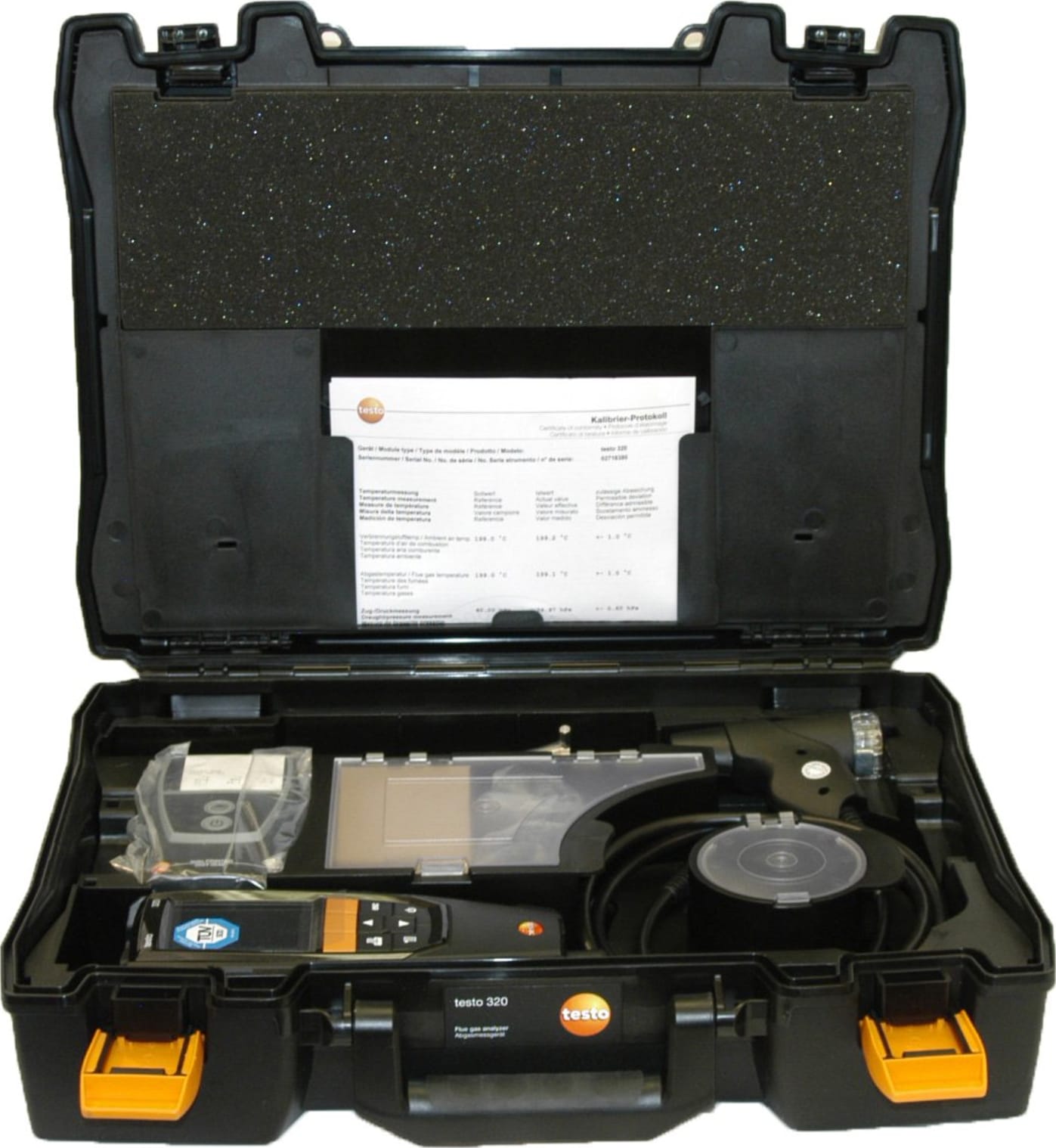

Testo 320 Combustion Analyzer Kit with Printer (0563 3220 71)
Combustion analysis in high definition is more than just a brilliant display. It’s a combination of proven measurement standards, contractor-rugged design, and Testo’s innovation. The result - testo 320 - makes combustion analysis easier to perform, easier to control, and easier to understand.
The 320 is designed for the job site and for the contractor that expects more. Use it for basic testing and tuning of all types of boilers, heater or furnaces. Use it to set up and commission more complex multi-stage, or modulating heating systems. Combustion analysis, draft, temperature, pressure, combustion efficiency and a host of other calculations and functions - all shown in vivid color. With simple icon navigation, you soon realize it will do more for HVAC testing.
![Testo_320_tn]()
|
- O2, CO (with built-in NOx filter), CO2
- Combustion calculations
- Draft
- Pressure
- Flue gas matrix
- User-changeable, pre-calibrated sensor
|
With the testo 320 you gain more testing flexibility giving you more customer opportunities and greater profit potential. It provides all the parameters listed, plus the capabilities shows in the following pages.
Designed for the job site and the needs of a busy contractor. The testo 320 gives you a wider measurement range that lets you test not only controlled or normal combustion applications but those that have problems. With a CO measurement range up to 4000 ppm (or optional 8000 ppm) you can test more combustion appliances.
CO sensor with integrated NOx filter.
The testo 320 eliminates the guess work and provides accurate readings. Integrated NOx filters assure you of the highest CO measurement accuracy, unlike other analyzers that add the NOx concentration to the CO measurement displayed. Whether you are measuring combustion, air free, or ambient CO – you need to make the decision on a correct measurement.
Faster, Easier, More Accurate.
Innovative features like the “flue gas matrix” will graphically display the combustion characteristics. This is an easy way show if the heating system is running e ciently “in the green” or wasteful and unsafe “in the red.” Simply make adjustments to the heating system until the cross-hair is “in the green” zone. Clever functions like this give you more information for easier adjustments and set-up.

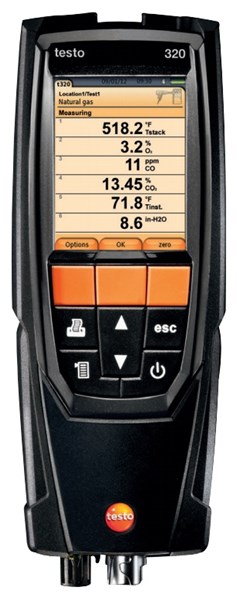

The testo 320 makes your job easier by displaying two to eight user-defined parameters. With 8 parameters you see all the measurements simultaneously. No need to scroll up and down chasing the measurements and double guessing.
Magnets on the back of both the analyzer and the printer attach in a secure and convenient spot. The printout documents the results with your company’s contact information. This helps to remind your customer who to call for their next cleaning or yearly service check. easyHeat software (optional) can help schedule jobs and print reports with your company’s logo for a professional look. The testo 320 combines many combustion tools into one rugged package for faster combustion analysis so you can focus on growing your business.

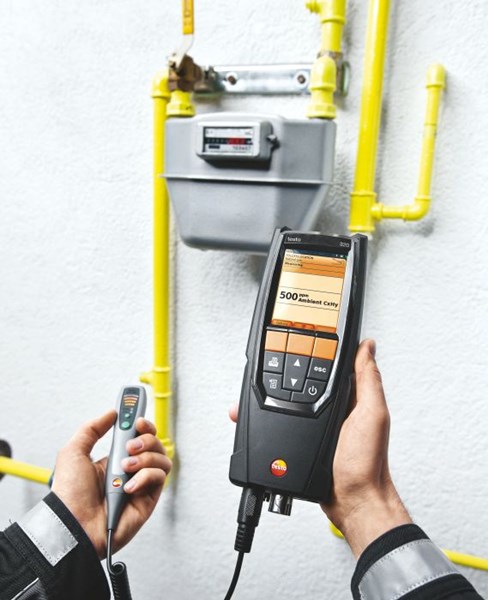

Gas leak detection
The gas leak probe allows you to safely identify gas leaks. The results can be stored and documented. The test results are displayed in ppm.
Draft and Pressure measurement
Critical for proper combustion performance is the draft measurement to determine if flue gases are flowing correctly. With the simultaneous flue gas temperature displayed, you know if the probe is positioned properly. The pressure measurement gives you the flexibility to test a variety of flow pressures in lines and switches.
Ambient CO measurement
The 320’s ambient CO function (or optional probe) will display results graphically and sound audible alarms when levels are unsafe (user-defined levels). The optional CO probe can also be used for simultaneous measurement of flue gas and ambient CO.
Differential Temperature
This option measures the difference between the outgoing and return line temperatures. This provides critical information for flow rate adjustments and compliance with boiler specifications.
Data management for combustion analysis
An infared printer or optional Bluetooth printer is available for the testo 320, for printing out measurement values on site. The testo 320 has built-in memory that can save up to 500 measurements.
Easyheat software option
easyheat software simplifies the management and archiving of your valuable customer data and measurement values on a laptop at the job site or on a PC at home. With easyheat, you can create customized individual reports.
You can transfer your data easily and securely through the USB port or Bluetooth (factory installed option) to a PC, printer, or other hardware Thanks to easyheat software.
Wide variety of probes for any application
The testo 320 has a probe available for almost any measurement. Well-designed cam-lock couplings assure leak free operation and quick changes. Simply click in various lengths and diameters to fit different flue or stack configuration. Additional probes like the gas leak, ambient CO, CO2, and the fine pressure probe provide more job site testing flexibility.
| |
testo 310 |
testo 320 |
testo 330-1G / -2G LL |
| CO Sensor (0 - 4,000 ppm) with integral NOX filter |
● |
● |
● |
| O2 Sensor (0 - 21%) |
● |
● |
● |
| CO, O2 Sensor Life |
2 yrs. |
2 yrs. |
4 yrs. |
| Field Replaceable sensors |
|
● |
● |
| Built-in Condensate trap with clear polymer window |
● |
● |
● |
| Condensate trap with Level Sensor, LED alarm and display indication |
|
● |
● |
| Detachable probe |
|
● |
● |
| Metal hose connection, Bayonett cam lock |
|
● |
● |
| User settable automatic pump shut-off for CO over range |
|
● |
● |
| Draft / Pressure measurement plus Differencial Pressure |
Draft only |
● |
● |
| Pre-programmed fuels |
5 |
20 |
20 |
| Internal storage capacity (# of complete tests) |
|
500 |
500,000 |
| Color Graphic Display with backlighting / zoom |
Numeric |
● |
● |
| Warranty - Instrument and O2 and CO sensors |
2 yrs. |
2 yrs. |
4 yrs. |
| Bluetooth option with free Android App |
|
● |
● |
