Testo 0635 9532 - 16mm Vane Probe (Wired - Not Wireless)

Name: Testo 0635 9532 - 16mm Vane Probe (Wired - Not Wireless)
Brand: Testo
SKU: Testo0635 9532
Price: 391.85 USD
Availability: InStock

0 reviews | Catalog: 0635 9532 | UPC: 4029547018916 | Model: Testo 0635 9532

Compare

Vane probe ( Diameter 16 mm) fixed cable

16mm vane probe
Used to measure air velocity, volume flow and humidity
Accurate measurement results from +0.6 to +50 m/s
Integrated telescope that can be extended to 0.85 m, with scaling, makes it easy to measure in any cross-section
Must be used along with a compatible Testo multifunction instrument

View Product Details

List Price: $461.00

Your Price: $391.85

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Testo 0635 9532 - 16mm Vane Probe (Wired - Not Wireless)

Used to measure air velocity, volume flow and humidity
Accurate measurement results from +0.6 to +50 m/s
Must be used along with a compatible Testo multifunction instrument

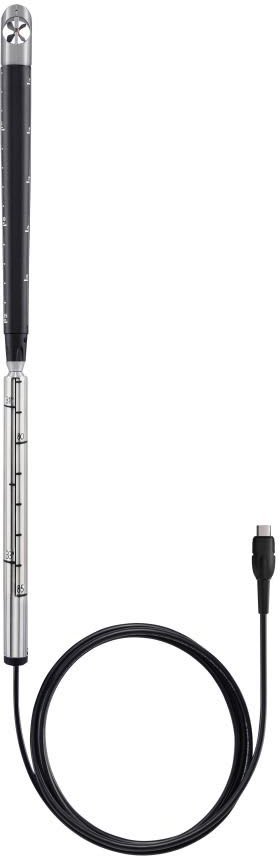

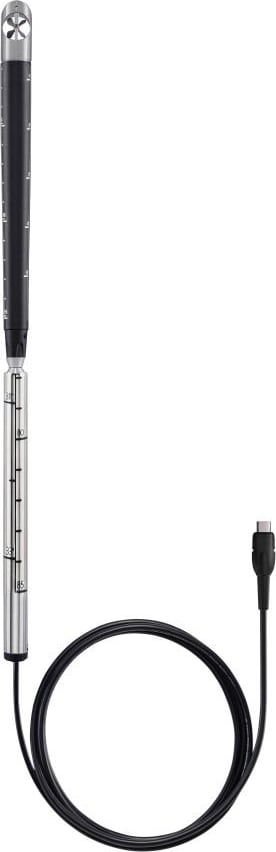

The Testo 0635 9532 is a 16mm vane probe and is used to measure air velocity, volume flow and humidity. Please note, this probe cannot be used on its own - it must be used with a compatible Testo multifunction instrument.

Vane probe - features

Use the fixed cable to connect the vane probe to the measuring instrument. The probe is equipped with a telescope, which can be extended to a maximum length of 0.85 m. The immersion depth is easy to read off thanks to the scaling on the telescope.

The clearly structured measurement menu for volume flow makes the measuring instrument intuitive to operate. The volume flow is precisely calculated thanks to convenient input of the size and geometry of the duct cross-section. Timed and multi-point mean calculation, average volume flow, current reading and min./max. values are displayed in the measuring instrument.

Intelligent calibration concept

You will get exceptionally accurate measurement results with the digital probe, because the measuring instrument makes measurement uncertainty a thing of the past. You only need to send the probe in for calibration - so the measuring instrument remains in continuous use.

Areas of application for the vane probe

Ventilation ducts: Use the vane probe to measure air velocity in ventilation ducts with reliability. Benefit from fast calculation of the volume flow: in the “volume flow” measurement menu of the compatible measuring instrument (please order separately), configure the dimensions and geometry of the duct cross-section - the measuring instrument shows you the volume flow straight away.

Velocity / Volume flow
Measuring range	118.1 to 9843 fpm / 0.6 to 50 m/s
Accuracy	±(39.4 fpm + 1 % of mv) (118.1 to 7874 fpm) / ±(0.2 m/s + 1 % of mv) (0.6 to 40 m/s) ±(39.4 fpm + 2 % of mv) (7893.7 to 9843 fpm) / ±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s)
Resolution	19.7 fpm / 0.1 m/s
General technical data
Storage temperature	14° to 158 °F / -10 to +70 °C
Dimensions	13.0 x 0.6 x 0.6 in. / 330 x 16 x 16 mm
Operating temperature	14° to 158 °F / -10 to +70 °C
Cable length	5.577 ft. / 1.7 m
Length telescope	33.465 in. / 850 mm
Probe head diameter	0.63 in. / 16 mm
Diameter telescope	0.472 in. / 12 mm
Weight	5.3 oz.

Test Equipment General Attributes
Product Height	2.00 IN
Product Length	13.00 IN
Product Width	11.00 IN
Shipping Weight	2.10 LBS
HTS/Schedule B Number	90268020000
ECCN Number	EAR99
Country of Origin	Germany
Shipping Height	2.00 IN
Shipping Length	13.00 IN
Shipping Width	11.00 IN
