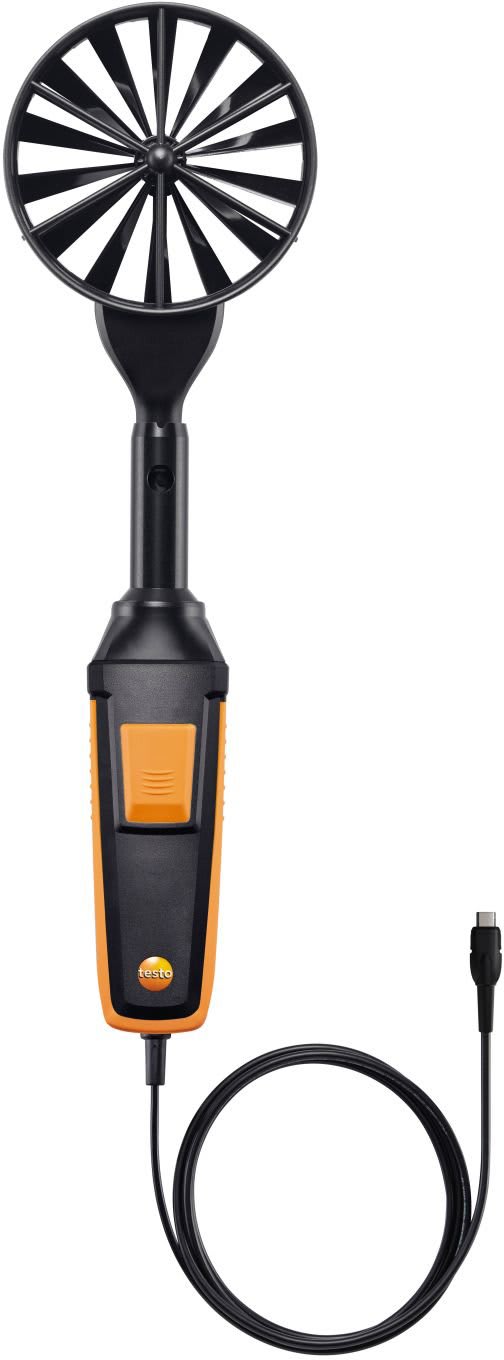

Testo 0635 9432 - 100mm (4 inch) Vane Probe Head (Includes Wired Handle)

Name: Testo 0635 9432 - 100mm (4 inch) Vane Probe Head (Includes Wired Handle)
Brand: Testo
SKU: Testo0635 9432
Price: 551.65 USD
Availability: InStock

0 reviews | Catalog: 0635 9432 20 | UPC: 4029547018978 | Model: Testo 0635 9432

Images (5) | Videos (1)

Compare

Vane probe ( Diameter 100 mm) incl. temperature sensor, fixed cable

100mm (4 inch) vane probe head
Used to determine air velocity, volume flow and air temperature
Probe with a practical button on the handle for storing individual readings, convenient measurement at ceiling outlets with optional telescope (up to 1 m)
Must be used along with a compatible Testo multifunction instrument

View Product Details

List Price: $649.00

Your Price: $551.65

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Testo 0635 9432 Vane probe ( Diameter 100 mm) incl. temperature sensor, fixed cable	Testo 0635 9430 100 mm vane probe head	Testo 0635 9431 20 Vane probe ( Diameter 100 mm) with Bluetooth, incl. temperature sensor
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Testo 0635 9432 Accessories

Choose a Category

for the Testo 0635 9432

Testo 0430 0946 Extendable telescope with ball head joint

Catalog: 0430 0946

(0)

In Stock!

Add to Cart

Testo 0554 1592 Measuring Tripod for Flow Measurements

Catalog: 0554 1592

(0)

In Stock!

Add to Cart

Testo 0563 4170 Flow Funnel Kit for low flow measurments (< 50 CFM) (8 inch round and...

Catalog: 0563 4170

(0)

In Stock!

Add to Cart

Testo 0554 0960 Extendable telescope for testo 400 sir flow probes (length xx to 1.0 m...

Catalog: 0554 0960

(0)

In Stock!

Add to Cart

Testo 0554 0990 Telescope extension (length 0.40 to 0.85 m) for testo 400 air flow probes

Catalog: 0554 0990

(0)

In Stock!

Add to Cart

Testo 0554 0991 90 Degrees angle for connecting the testo 400 vane probe ( Diameter...

Catalog: 0554 0991

(0)

In Stock!

Add to Cart

Testo 0554 4172 flow straightener testovent 417

Catalog: 0554 4172

(0)

In Stock!

Add to Cart

Testo 0632 1270 CO probe head

Catalog: 0632 1270

(0)

In Stock!

Add to Cart

Testo 0632 1550 CO2 probe head incl. temperature and humidity sensor

Catalog: 0632 1550

(0)

In Stock!

Add to Cart

Testo 0635 1570 Hot wire probe head incl. temperature and humidity sensor

Catalog: 0635 1570

(0)

In Stock!

Add to Cart

Testo 0635 9370 High-precision 100 mm vane probe head incl. temperature probe

Catalog: 0635 9370

(0)

In Stock!

Add to Cart

Testo 0635 9430 100 mm vane probe head

Catalog: 0635 9430

(0)

In Stock!

Add to Cart

Testo 0635 9570 16 mm vane probe head incl. temperature probe

Catalog: 0635 9570

(0)

In Stock!

Add to Cart

Testo 0636 9730 Temperature-humidity probe head

Catalog: 0636 9730

(0)

In Stock!

Add to Cart

Testo 0636 9770 High-precision temperature-humidity probe head

Catalog: 0636 9770

(0)

In Stock!

Add to Cart

Testo 0635 9432 - 100mm (4 inch) Vane Probe Head (Includes Wired Handle)

Includes wired handle
Used to determine air velocity, volume flow and air temperature
Must be used along with a compatible Testo multifunction instrument

The Testo 0635 9432 is a 100mm (4 inch) vane probe head. The 0635 9432 includes a wired handle (not Bluetooth) for connection to your measuring device. Please note, this probe cannot be used on its own - it must be used with a Testo multifunction instrument, and can be used to determine air velocity, volume flow and air temperature.

Vane probe including temperature sensor

Use the fixed cable on the handle to connect the vane probe to the measuring instrument (please order separately).

The clearly structured measurement menu for volume flow enables the measuring instrument to be operated intuitively. The volume flow is precisely calculated thanks to convenient input of the size and geometry of the duct cross-section. Timed and multi-point mean calculation, average volume flow, current reading and min./max. values are displayed in the measuring instrument.

Particularly useful: press the button on the vane probe to operate the measuring instrument. For example, to store individual readings for multi-point mean calculation or to start and stop measurement series for mean calculation over time.

Space-saving: more applications, less equipment

Endlessly versatile: a universal handle can be connected to all probe heads - so you can master more applications using less equipment and save space.

Order the Bluetooth® handle to make it more convenient to carry out your measurement and guarantee less cable clutter in the case. This transmits the readings to the measuring instrument from a distance of up to 20 meters. If the vane needs to be replaced in the distant future, you can change the probe head.

If required, you can also fit the vane probe with the extendable telescope with 90° angle and, if necessary, the telescope extension (both can be ordered separately; in combination 2 m long). This makes it easy to measure at ceiling outlets.

Intelligent calibration concept

You will get exceptionally accurate measurement results with the digital vane probe, because the measuring instrument makes measurement uncertainty a thing of the past. You only need to send the probe head in for calibration - so the measuring instrument remains in continuous use.

Areas of application for the vane probe

Air/ceiling outlets: Use the vane probe to determine air velocity and volume flow at air outlets. During loop-pattern scanning of the grille’s cross section, the air velocity values are integrated and averaged across a large area of 100 mm. As a result, precise measurement results are achieved with the loop measurement.

For measurements at ceiling outlets: the extendable telescope (1.0 m long) with easy-to-read scaling and 90° angle is easy to attach to the vane probe. The 90° angle ensures that the probe is positioned correctly under the ceiling. For high ceilings, you can also use the telescope extension, attaining a total length of 2 meters (please order the extendable telescope and telescope extension separately).

Plate outlets, ventilation grilles and swirl outlets: For convenient, accurate measurements at plate outlets and ventilation grilles, we recommend using the vane probe with the testovent 417 funnel set (please order separately). This guarantees simple testing of incoming/outgoing air - such as in the controlled ventilation of living spaces.

If you add in the volume flow straightener (please order separately), an impressively high level of precision can be achieved when carrying out measurements at swirl outlets.

Temperature - NTC
Measuring range	-4° to 158 °F / -20 to +70 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Velocity / Volume flow
Measuring range	59.1 to 6890 fpm / 0.3 to 35 m/s
Accuracy	±(19.7 fpm + 1.5 % of mv) (59.1 to 3937 fpm) / ±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s) ±(39.4 fpm + 1.5 % of mv) (3938.98 to 6890 fpm) / ±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)
Resolution	1.97 fpm / 0.01 m/s
General technical data
Storage temperature	-4° to 158 °F / -20 to +70 °C
Dimensions	14.8 x 4.1 x 1.8 in. / 375 x 105 x 46 mm
Operating temperature	-4° to 158 °F / -20 to +70 °C
Cable length	4.593 ft. / 1.4 m
Diameter probe shaft	3.937 in. / 100 mm
Weight	12.9 oz. / 365 g

Test Equipment General Attributes
Product Height	4.00 IN
Product Length	16.00 IN
Product Width	14.00 IN
Shipping Weight	2.10 LBS
HTS/Schedule B Number	90268020000
ECCN Number	EAR99
Country of Origin	Germany
Shipping Height	4.00 IN
Shipping Length	16.00 IN
Shipping Width	14.00 IN
