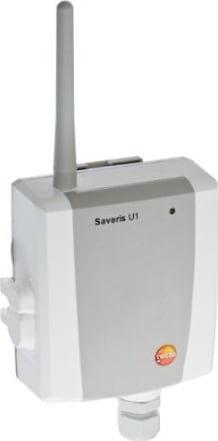

Testo 0572 3250 U1 Analog Wireless Converter

Name: Testo 0572 3250 U1 Analog Wireless Converter
Brand: Testo
SKU: Testo0572 3250
Price: 444.00 USD
Availability: InStock

0 reviews | Catalog: 0572 3250 | UPC: 4029547015694 | Model: Testo 0572 3250

Compare

U1 Analog wireless converter, 2.4 GHz, 1 channel, connections: 2-wire 4 - 20 mA, 4-wire 0/4 - 20 mA, 0 - 1/5/10 V

Plastic wireless analog current/voltage probe
Wall bracket included
2.4 GHz frequency
Operating temperature: -4 to 122 degree F
Measures 3-51/128" length by 1-1/2" width by 3-115/128" height

View Product Details

List Price: $444.00

In Stock:

View Payment Options

Recommended for you

Testo plastic wireless analog current/voltage probe. Probe type: 1 channel: current/voltage input. Measuring range: 2-wire: 4 to 20 mA, 4-wire: 0/4 to 20 mA, 0 to 1/5/10 V, load: max. 160 at 24 V DC. Connection: 2 or 4-wire current/voltage input; Service interface mini DIN for adjustment. Supply: AC power supply 6.3 V DC, 2 to 30 V DC max 25 V AC. Protection class: IP54. Measuring rate: Standard 15 min, 1 min to 24 h can be set. Operating temperature: -4 to 122 degree F. Storage temperature: -40 to 131 degree F. Display: LCD, 2 lines; 7-segment with symbols. Transmission distance: approx. 328' free field at a frequency of 2.4 GHz. Included wall bracket. Measures 3-51/128" length by 1-1/2" width by 3-115/128" height.

Probe type	1 channel: Current/voltage input
Meas. range	2-wire: 4 ... 20 mA 4-wire: 0/4 ... 20 mA, 0 to 1/5/10 V, load: max. 160 O at 24 V DC
Accuracy	Current ±0.03 mA / 0.75 µA Voltage 0 to 1 V ±1.5 mV/39 µV Voltage 0 to 5 V ±7.5 mV / 0.17 mV Voltage 0 to 10 V ±15 mV / 0,34 mV ±0.02% of m.v./K deviating from nominal temperature 22 °C
Connection	2/4-wire current/voltage input Service interface Mini DIN for adjustment
Dimensions	approx. 85 x 100 x 38 mm
Weight	approx. 240 g
Battery life	(Type: 4 x AA)
Supply:	Mains unit 6.3 V DC,20 to 30 V DC max. 25 V AC
Housing material	Plastic
Protection class	IP54
Radio frequency	2.4 GHz
Measuring cycle	Standard 15 min, can be set from 1 min up to 24 h
Memory	6.000 readings per channel
Operating temperature	-20 to +50 °C
Storage temperature	-40 to +55 °C (incl. batteries)
Display	(no display)
Transmission distance	approx. 100 m free field at a frequency of 2.4 GHz
Wall holder	included
