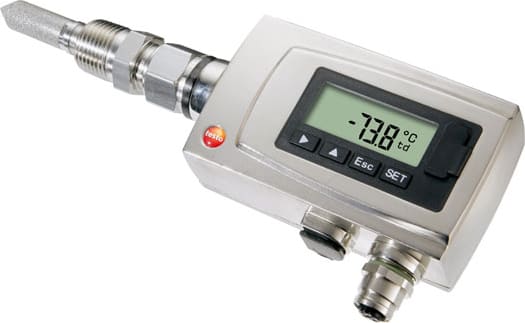

Testo 0555 6781 Dewpoint Transmitter to -90 °C

Name: Testo 0555 6781 Dewpoint Transmitter to -90 °C
Brand: Testo
SKU: Testo0555 6781
Price: 1065.90 USD
Availability: InStock

0 reviews | Catalog: 0555 6781 | Model: Testo 0555 6781

Compare

testo 6781 -90C tpd trace dew point transmitter

Measurement of dewpoints in the measuring range -90 to +30 °Ctd, with main applications under -40 °Ctd
New, very condensation-proof sensor with sol-gel technology guarantees highest process security and fast response
Automatic self-adjustment ensures high accuracy and long reliability
Optional display with multi-language user menu
Self-monitoring of the transmitter guarantees high system availability
The P2A software for parameterization, adjustment and analysis saves time and costs in commissioning and maintenance

View Product Details

List Price: $1,254.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Testo 0555 6781

Testo 0554 1749 DIN rail mount power supply, 90-240 V AC / 24 V DC (2.5 A)

Catalog: 0554 1749

(0)

In Stock!

Add to Cart

Testo 0554 3304 Measuring Chamber Cooling Coil

Catalog: 0554 3304

(0)

In Stock!

Add to Cart

Testo 0554 3312 Precision Measurement Chamber

Catalog: 0554 3312

(0)

In Stock!

Add to Cart

Testo 0554 6020 P2A Software with USB Cable fo

Catalog: 0554 6020

(0)

In Stock!

Add to Cart

The transmitter testo 6781 was developed specially for trace humidity measurement in compressed air and in dry air (e. g. in granulate dryers). The international norm ISO 8573 categorizes seven classes of compressed air. High-performance adsorption dryers are required in order to meet the highest quality classes 1 and 2. They can be monitored by the testo 6781 down to very low dewpoints of -90 °Ctd.

The newly developed sensor with sol-gel technology is characterized by its condensation-proofness and fast response time, thus guaranteeing highest process security.

Areas of application:

Dewpoint measurement in compressed air in ISO Classes 1 (-70 °Ctd ) and 2 (-40 °Ctd)
Monitoring of adsorption dryers, granulate dryers and medical compressed air
Quality assurance for noble gas preparation

Technical data

Parameters

Humidity/trace humidity

Units

°Ctd, °Ftd, %rF, %RH

Calculated variables

°CtdA, °tdA (normed atmosph. dewpoint), ppmV, g/m³, g/ft³, g/kg, g/lb

Measuring range

-90 to -20 °Ctd / -130 to -4 °Ftd

Measurement uncertainty

-20 °Ctd to -40 °Ctd: ±1,5K
-40 °Ctd to -60 °Ctd: ±2K
-60 °Ctd to -75 °Ctd: ±2,5K

Response time

t63 = 3s for switch from -75 °Ctd to -30 °Ctd
Mt90 = 9s for switch from -75 °Ctd to -30 °Ctd
t63 = 300s for switch from -30 °Ctd to -75 °Ctd
90 = 1080s for switch from -30 °Ctd to -75 °Ctd

Autom. self-adjustment

Cycle adjustable:
1 h / 6 h / 12 h / 24 h / 48 hU

General technical data

Materia

Metal housing

Dimensions

208 x 60 x 35 mm

Weight

0.5 kg

Display

optional: 2-line LCD with multi-language operating menu

Resolution

Measuring range	Resolution
0 to +100 %RH	0.001
0.001 to 28 g/kg	0.001
0.01 to 194 g/lb	0.01
0 to 31 g/m3	0.001
0.001 to 14 g/ft3	0.001
0.1 to 9999 ppm(V)	0.1
-90 to -20 °Ctd	0.1
-90 to -20 °Ctd	0.1
-130 to -4 °Ftd	0.1
-90 to -20 °CtdA	0.1
-130 to -4 °FtdA	0.1
-40 to +70 °C	0.01
-40 to +158 °F	0.01

Miscellaneous

Protection class

IP 65

EMC

EU guideline 2004/108/EC

Operating conditions

Process temperature

-40 to +70 °C / -40 to +158 °F

Process pressure

max. 50 bar

Operation temperature
Without display

-40 to +70 °C / -40 to +158 °F

Storage temperature
Without display

-40 to +80 °C / -40 to +176 °F

Operation temperature
With display

-20 to +70 °C / 4 to +158 °F

Storage temperature
With display

-20 to +70 °C / -4 to +158 °F

Tech Specs

Test Equipment General Attributes
Unique Features	Metal housing
IP Rating	IP65
Product Weight	0.5 KILOS (1.10 LBS)
Product Height	35 MM (1.38 IN)
Product Length	60 MM (2.36 IN)
Product Width	208 MM (8.19 IN)
ECCN Number	EAR99
