| Technical Data Probe Series Testo 6600 |
| |
6601 |
6602 |
6603 |
6604 |
6605 |
| Type |
Wall |
Duct |
Duct |
Cable |
Cable |
| Operating range |
Room climate probe wall mounting |
Climate probe duct mounting |
Process climate probe duct mounting for higher process temperatures |

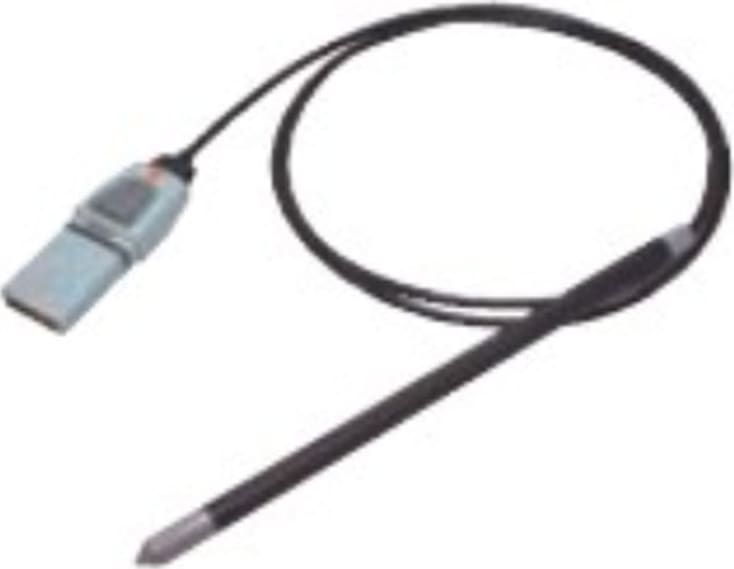

Climate probe with cable |
Stainless steel process probe with cable for higher process temperatures Type |
| Measuring Range |
0 to 100 %RH |
| Measurement uncertainty* (+25 °C)** |
±(1.7 + 0.007 * mv) %RH (0 to 90 %RH) / ±(1.9 + 0.007 * mv) %RH (90 to 100 %RH) +0.02 %RH per Kelvin dependent on the process and electronics temperature (for a deviation of 25 °C / 77 °F) |
| Selectable units |
%RH; °Ctd/°Ftd |
| Reproduceability |
better than ±0.2 %RH |
| Sensor |
Testo capacitive humidity sensor, plug-in |
Testo capacitive humidity sensor, plug-in |
Testo capacitive humidity sensor, plug-in |
Testo capacitive humidity sensor, plug-in |
Testo capacitive humidity sensor; soldered |
| Response time (without protective filter) |
t90 max. 10 sec |
| Selectable units |
°C/°FS |
| Sensor |
20 to +70 °C/ -4 to +158 °F |
30 ... +120 °C/ -22 ... +248 °F |
-20 ... +70°C/-4 ... +158 °F |
-30 ... +120 °C/ -22 ... +248 °F |
| Measurement uncertainty* (at +25 °C / +77 °F |
±0.15 °C / 0.27 °F (PT1000 Class A) |
Pt1000 Class AA |
| Probe Shaft |
Plastic ABS |
Stainless Steel |
| Cable |
FEP coated |
| Plug |
Plastic ABS |
| Probe dimensions (diameter) |
12 mm |
| Probe dimensions (probe shaft length) |
70/200 mm |
280 mm |
140/280 m |
200/500 m |
| Cable length |
- |
Specially for duct versions |
1 / 2 m |
1 / 2 / 5 m |
