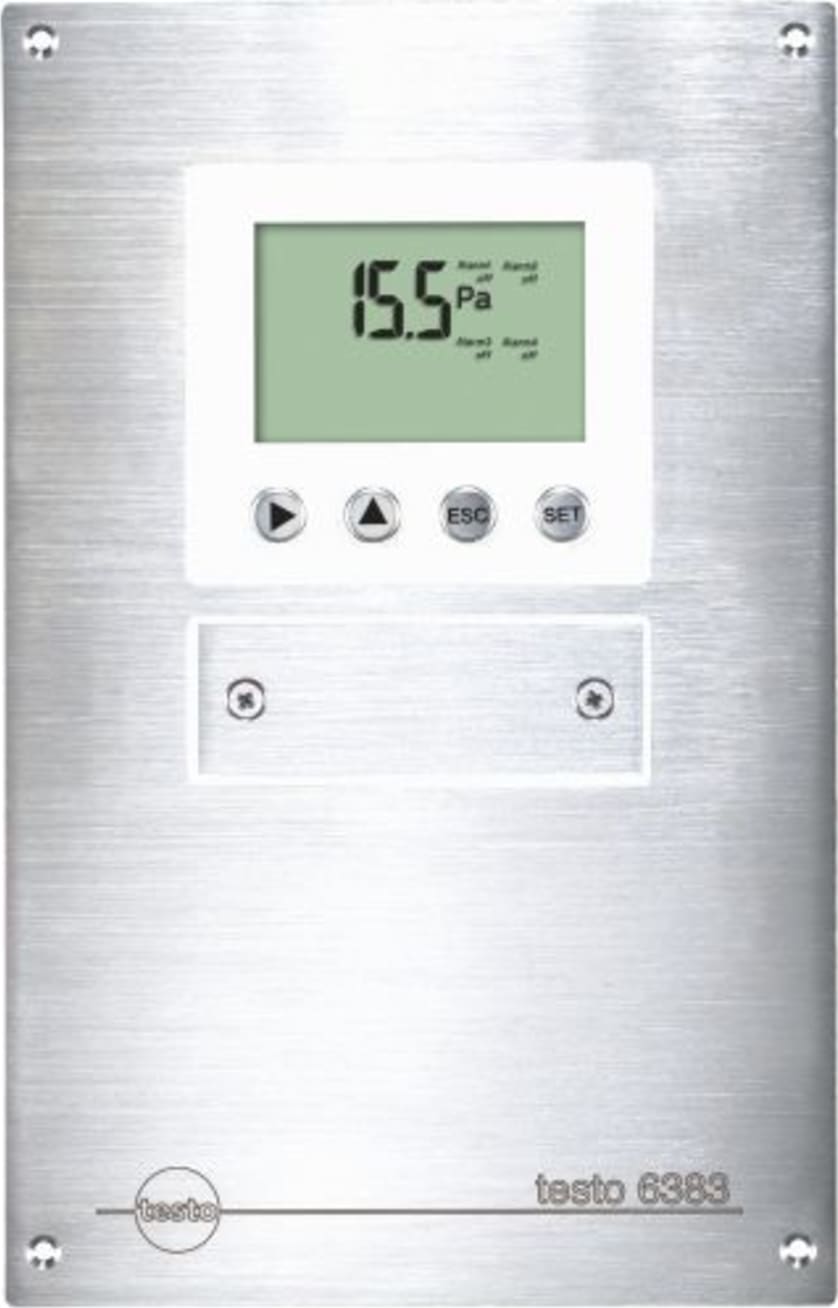

Testo 0555 6383-C Differential Pressure Transmitter

Name: Testo 0555 6383-C Differential Pressure Transmitter
Brand: Testo
SKU: Testo0555 6383-C
Price: 1047.20 USD
Availability: InStock

0 reviews | Catalog: 0555 6383-C | Model: Testo 0555 6383-C

Compare

6383 Differential Pressure Panel Transmitter with optional T/RH - standard panel housing metal

Flat housing enables flush surface integration in the cleanroom wall
With optional T/RH - standard panel housing metal
Low measuring range from 10 Pa ensures very high precision at the lowest pressures
Pressure transmitter for measuring differential pressure, as an option: humidity and temperature
Automatic zero-point adjustment guarantees high temperature-independent accuracy and long-term stability
Ethernet, relay and analog outputs allow optimum integration into individual automation systems
Self-monitoring of the transmitter and early warning function guarantee high system availability
The P2A software for parameterization, adjustment and analysis saves time and costs in commissioning and maintenance
Configurable alarm management with adjustable response delay and alarm acknowledgement

View Product Details

Non-Cancellable / Non-Returnable

Recommended for you

Testo 0555 6383-C Differential Pressure Transmitter

testo 6383 differential pressure transmitter in cleanroom-conform panel design, optionally with humidity/temperature, accuracy ±0.3% of measuring range final value, automatic zero-point adjustment, selectable measuring range between 10 to 10hPa, selectable signal outputs, optional display, output of all relevant pressure and humidity parameters

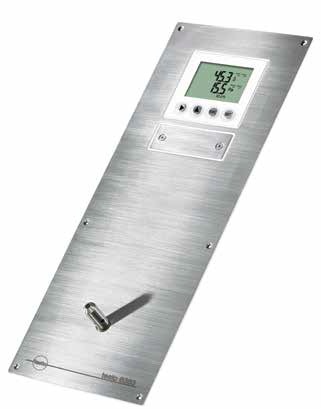

Testo_6383_1

The testo 6383 transmitter was specially designed for monitoring differential pressure in the 10 Pa to 10 hPa measuring range. In cleanroom technology, the maintenance of positive pressure prevents the entry of contaminated air.

An optional probe from the testo 6610 probe series also enables simultaneous recording of humidity and temperature with one transmitter.

A particularly outstanding feature of the testo 6383 pressure transmitter for differential pressure is the automatic zero-point adjustment, which ensures high accuracy and long-term stability. The integrated self-monitoring and early warning function also guarantees high system availability for the operator

testo 6383 pressure transmitter for differential pressure for use in cleanrooms

Monitoring positive and negative pressure in cleanrooms, operating theatres and isolation rooms
Optional monitoring of humidity and temperature in cleanrooms

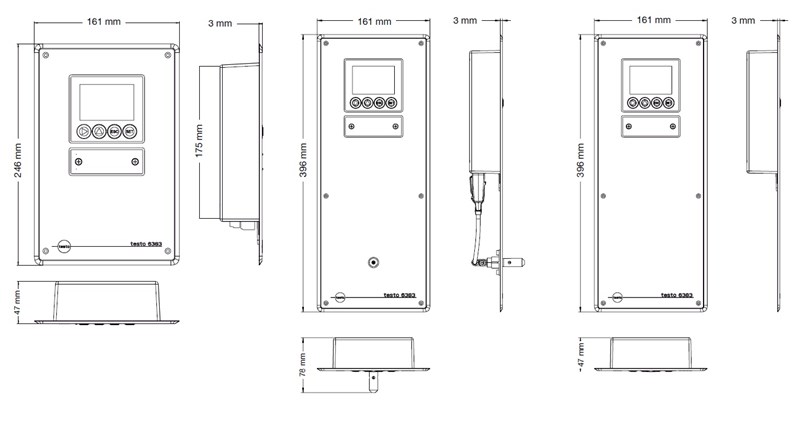

Technical drawings

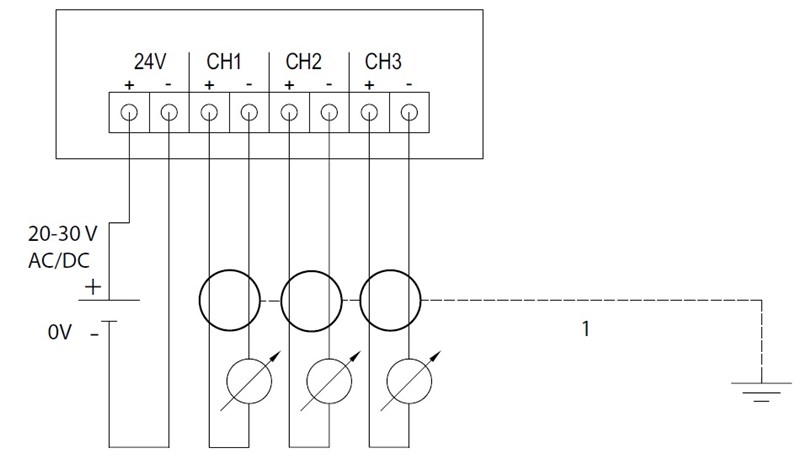

Connection plan

Testo 0555 6383-C Differential Pressure Transmitter Specifications

Parameters Differential pressure
Measuring range	0 to 10 Pa 0 to 50 Pa 0 to 100 Pa 0 to 500 Pa 0 to 10 hPa	-10 to +10 Pa -50 to +50 Pa -100 to +100 Pa -500 to +500 Pa -10 to +10 hPa
Measurement uncertainty	±0.3% of measurement range final value ±0.3 Pa Temperature gain drift: 0.02% of measuring range per Kelvin deviaton from nominal temperature 22 °C Zero point drift: 0% (thanks to cyclic zeropoint adjustment)
Selectable units	Differential pressure in Pa, hPa, kPa, mbar, bar, mmH2O, kg/cm2, PSI, inch HG, inch H2O
Sensor	Piezoresistive sensor
Autom. zero-point adjustment	via magnetic valve Frequency adjustable: 15 sec, 30 sec, 1 min, 5 min, 10 min
Overload	Measuring range Overload 0 to 10 Pa 20000 Pa 0 to 50 Pa 20000 Pa 0 to 100 Pa 20000 Pa 0 to 500 Pa 20000 Pa 0 to 10 hPa 200 hPa -10 to 10 Pa 20000 Pa -50 to 50 Pa 20000 Pa -100 to 100 Pa 20000 Pa -500 to 500 Pa 20000 Pa -10 to 10 hPa 200 hPa
Parameters Humidity/temperature optional
Probe	Integrated probe	testo 6613	testo 6614	testo 6615	testo 6617
Type		Channel	Duct heated	Cable trace humidity	Cable with cover electrode monitoring
Parameters	%RH / °C/°F / °Ctd / °Ftd / g/kg / gr/lb / g/m3 / gr/ft³ / ppmV / °Cwb / °Fwb / kJ/kg / mbar / inch H2O / °Ctm (H2O2)/°Ftm (H2O2) / % Vol
Meas. range
Humidity / trace humidity	0 to 100 %RH			-60 to +30 °C td	0 to 100 %RH
Temperature	-20 to +70 °C -4 to +158 °F	-40 to +180 °C -40 to +356 °F		40 to +120 °C -40 to +248 °F	-40 to +180 °C -40 to +356 °F
Measurement uncertainty
Humidity	Integrated probe	testo 6613	testo 6614	testo 6615	testo 6617
	±(1.0 + 0.007 * MV) %RH for 0 to 90 %RH ±(1.4 + 0.007 * MV) %RH for 90 to 100 %RH		±(1.0 + 0.007*MV) %RH for 0 to100 %RH		±(1.2 + 0.007MV) %RH for 0 to 90 %RH ±(1.6 + 0.007MV) %RH for 90 to 100 %RH
	for deviations from media temp. ±25 °C:±0.02 %RH/K
Dewpoint				±1 K at 0 °Ctd ±2 K at -40°Ctd ±4 K at -50 °Ctd
Temp. at +25°C / +77°F	±0.15 °C / 32.2 °F Pt1000 Class AA			±0.15 °C/ 32.2 °F Pt100 Class AA	±0.15 °C/ 32.2 °F Pt1000 Class AA
Inputs/outputs Analog outputs
Quantity	Standard: 1; with optional humidity probe: 3
Output type	0/4 to 20 mA (4-wire) (24 VAC/DC) 0 to 1/5 to 10 V (4-wire) (24 VAC/DC)
Scaling	Differential pressure: scalable ±50% of measuring range final value; freely scalable within measuring range
Meas. cycle	1/sec
Resolution	12 bit
Max. load	max. 500 Ω
Other outputs
Ethernet	Optional Relay :Optional: 4 relays (free allocation to measurement channels or as collective alarm in operating menu/P2A), up to 250 VAC/3A (NO or NC)
Digital	Mini-DIN for P2A software
Voltage supply	20 to 30 VAC/DC, 300 mA current consumption, galvanically separate signal and supply line
General technical data
Model
Material	Front plate stainless steel, housing plastic
Dimensions	without humidity/temperature: 246 x 161 x 47 mm with humidity/temperature:396 x 161 x 78 mm
Weight	Version without humidity: 0.9 kg; Version with integrated humidity probe:1.35 kg; version with preparation for external humidity probe: 1.26 kg
Display
Display	optional: 3-line LCD with multi-language operating menu
Resolution
Differential pressure	Measuring range 0 to 10 Pa 0 to 50 Pa 0 to 100 Pa 0 to 500 Pa 0 to 10 hPa -10 to 10 Pa -50 to 50 Pa -100 to 100 Pa -500 to 500 Pa -10 to 10 hPa			Resolution 0.1 Pa 0.1 Pa 0.1 Pa 0.1 Pa 0.01 hPa 0.1 Pa 0.1 Pa 0.1 Pa 0.1 Pa 0.01 hPa
Humidity	0.1 %RH
Temperature	0.01 °C / 0.01 °F
Miscellaneous
Protection class	IP 65
Connection nipple	Ø 6 mm --> suitable hoses 4 mm + 4.8 mm
Operating conditions
With / without display
Operation temperature	-5 to +50 °C / +23 to +122 °F
Storage temperature	-20 to +60 °C / -4 to +140 °F
Process temperature	-20 to +65 °C / -4 to +149 °F
