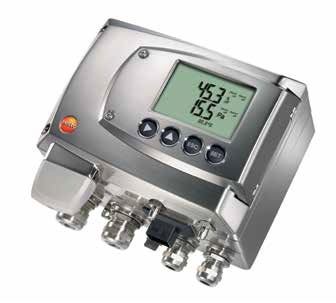

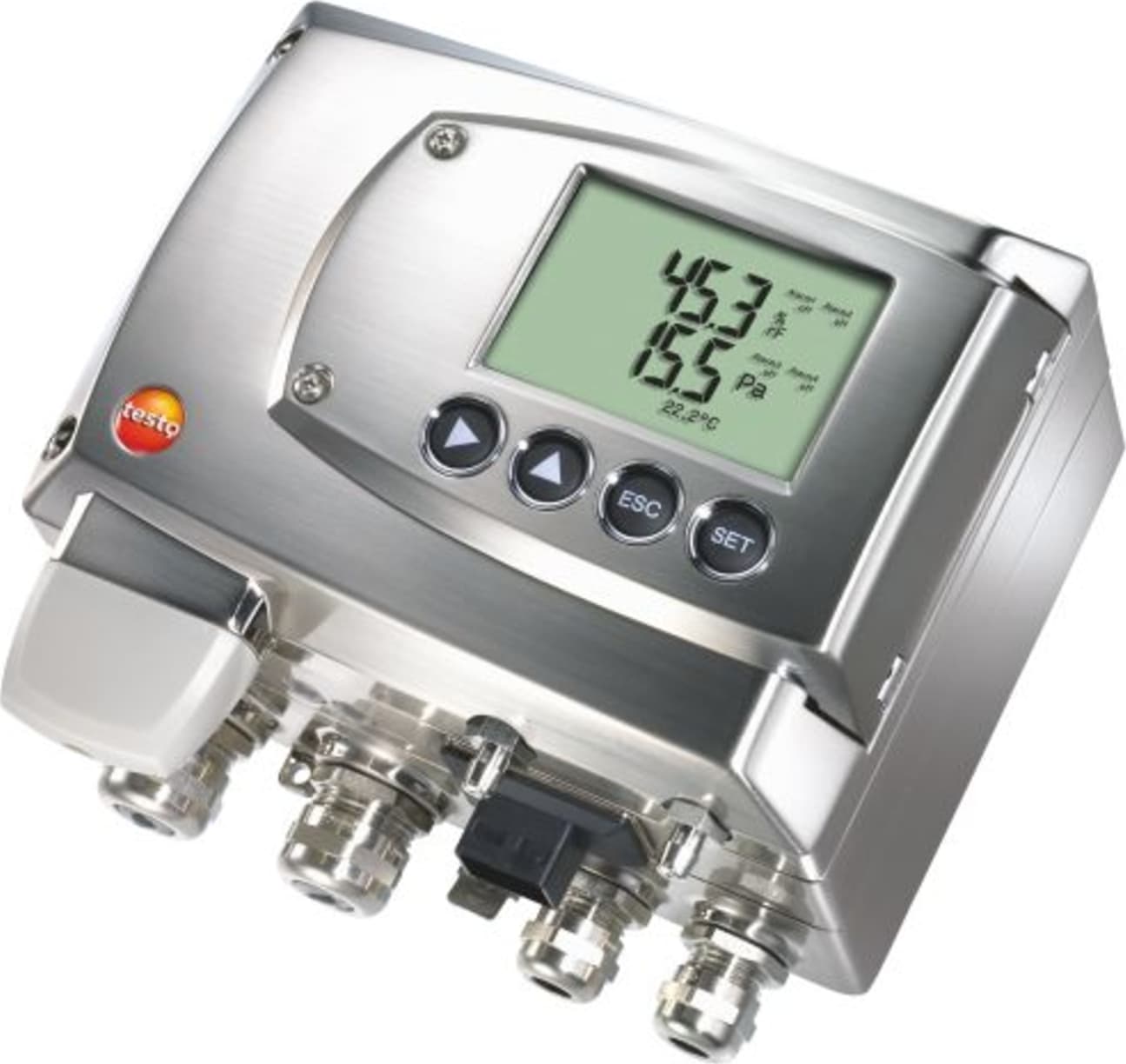

Testo 0555 6381-C Differential Pressure Transmitter

testo 6381 differential pressure transmitter with calculation of flow velocity and optionally with humidity/temperature, accuracy ±0.5% of measuring range final value, automatic zero-point adjustment, selectable measuring range between 10 to 1000hPa, selectable signal outputs, optional display, output of all relevant pressure, flow and humidity paramters

The testo 6381 transmitter was specially designed for monitoring differential pressure in the 10 Pa to 1,000 hPa measuring range.

In cleanroom technology, the maintenance of positive pressure prevents the entry of contaminated air. In order to keep the cleanroom conditions constant, the transmitter additionally calculates volume flow and flow velocity from the measured differential pressure.

An optional probe from the testo 6610 probe series also enables simultaneous recording of humidity and temperature with one transmitter.

A particularly outstanding feature of the testo 6381 pressure transmitter for differential pressure is the automatic zero-point adjustment, which ensures high accuracy and long-term stability. The integrated self-monitoring and early warning function also guarantees the operator high system availability.

testo 6381 pressure transmitter for differential pressure – the applications

• Differential pressure monitoring between rooms; optional: simultaneous measurement of ambient temperature and humidity
• Monitoring drying processes
• Differential pressure measurement in filling processes and spray-painting systems

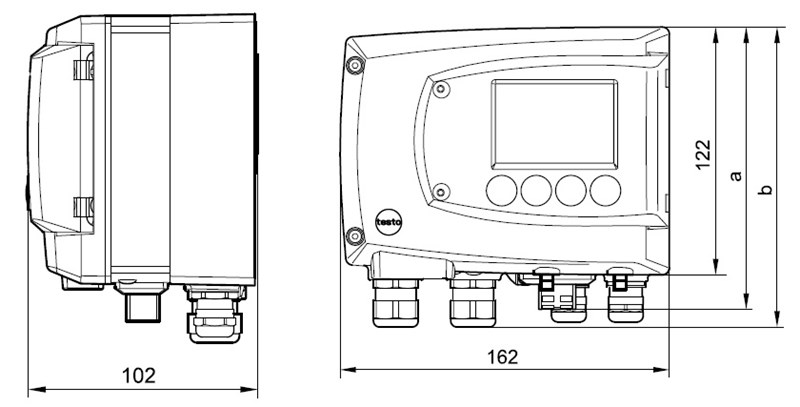

Technical drawings

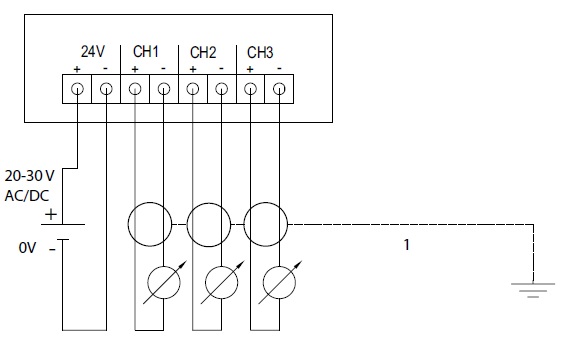

Connection plan
