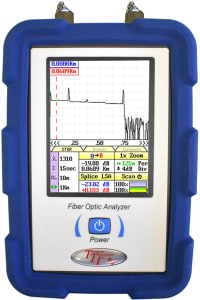

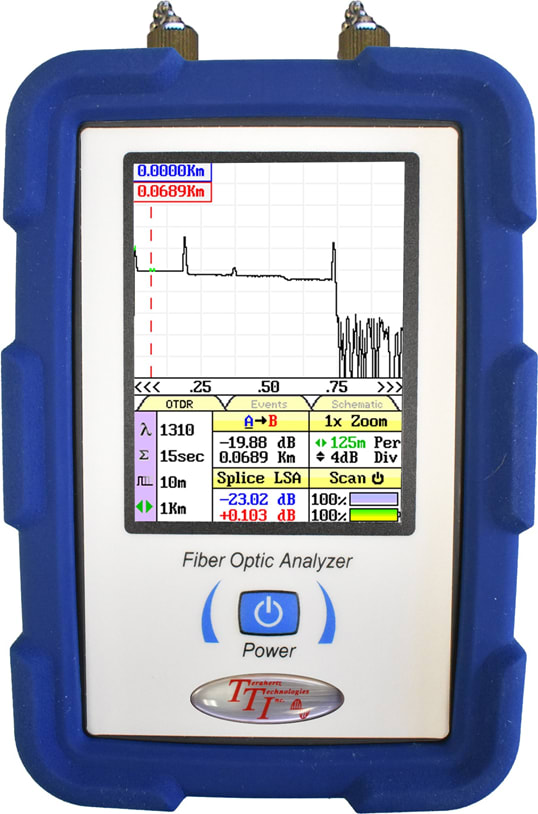

Terahertz FTE-8200-CWDM - 18 Channel Checker with Video Scope Capability

• Model FTE-8200-CWDM
• 18 Channel Analyzer
• Pass/Fail Thresholds
• Fast real time with <1/2 second update
• Rugged Case w/Impact Resistant Boot

The FTE8200-CWDM Channel Analyzer is rugged, affordable and easy to use. The standard CWDM handheld analyzer is available in 18 or 8 channels with 20 nm spacing. The 18 channel analyzer tests 1271-1611nm and the 8 channel tests 1471-1611nm. The FTE-8200-CWDM analyzer is simple and fast to operate with its touch screen interface and twice a second scan.

This low cost, full featured CWDM Channel Analyzer is designed to withstand your field operations with power tilt feature with a full set of selectable scale limits. Information is displayed in graph mode which makes zeroing in on channel measurements easy and the user selects Pass/Fail thresholds that may be store in a project base file system. Up to 4000 tests that can be saved and downloaded via the USB PC port and documented with the included certification software.

Use the optional Video Inspection Scope and Probe with auto grading Fib-R-View system to ensure connector cleanliness prior to testing. The onboard Help system guides new users through operation and assists in parameter settings. The FTE-8200-CWDM is housed in a water-resistant enclosure with a robust protective boot.
