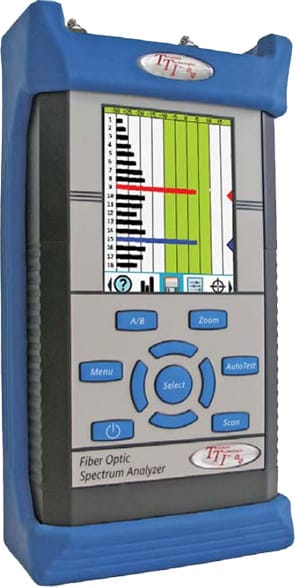

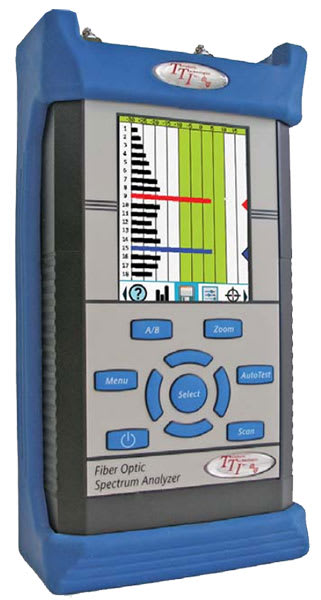

Terahertz FTE-8100-CWDM - Channel Analyzer

The FTE8100-CWDM Channel Analyzer is rugged, affordable and easy to use. The standard CWDM hand held analyzer is available in 18 or 8 channels with 20 nm spacing. The 18 channel analyzer tests 1271-1611nm and the 8 channel tests 1471-1611nm. The FTE8100 CWDM analyzer is simple and fast to operate with its touch screen interface and twice a second scan. This low cost, full featured CWDM Channel Analyzer is designed to withstand your field operations. It offers a one button auto-test feature, power tilt feature with a full set of selectable scale limits. Information is displayed in graph or table mode which makes zeroing in on channel measurements easy and the user selects Pass/Fail thresholds that may be store in a project base file system. Up to 1000 tests that can be saved for later downloaded via the USB PC port and documented with the included certification software for fast, easy reporting. Use the onboard Video Inspection Scope with auto grading Fib-R-View system to ensure connector cleanliness prior to testing. The onboard Help system guides new users through operation and assists in parameter settings. The FTE-8100CWDM is housed in a water resistant enclosure with a robust protective boot.
