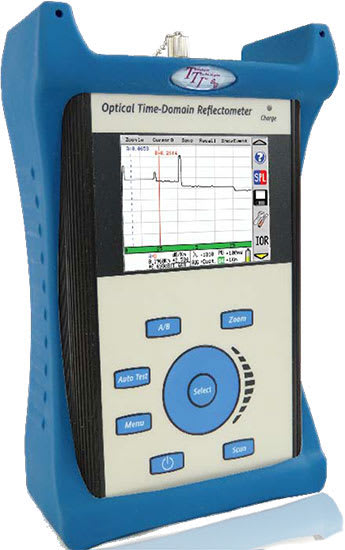

Terahertz FTE-7500A-CWDM-12 - 1471-1611nm +4 Additional Wavelengths of Choice, CWDM OTDR W/VFL, LTS, Video Scope Capability

The FTE7500A-CWDM is a CWDM OTDR with up to twelve wavelengths from the ITU-T G.694.2 available in a single hand-held piece of test equipment. This is the only non-tunable OTDR to offer this larger number of wavelengths in a single unit. Use the FTE7500A-CWDM for commissioning and troubleshooting CWDM Networks.

The FTE7500A-CWDM-12 offers up to 12 CWDM Wavelengths in a Single OTDR. These OTDRs may be order with 8, 10 or even 12 CWDM wavelengths. Standard units include 1471-1611nm for 8 wavelengths and 1431-1611nm for 10 wavelengths or configure a 12 wavelength unit using the 1471-1611nm 8 wavelength unit and add 4 additional wavelengths of your choice. Test a fiber at 1, 2 or up to 12 wavelengths with the touch of just one button. The Fault Finder mode uses one button to scan a fiber under test, have the OTDR select the best parameters at the selected wavelength and displays event analysis. The onboard Broadband Power Meter is calibrated at up to 12 CWDM wavelengths. to match the OTDR configuration. The FTE7500A-CWDM may be used as a CW light source. Select any of the configured wavelengths as a CW light source for commissioning or for Loss test with the onboard Power Meter.

The CertSoft Software Suite, project reporting and documentation is fast and easy with the supplied CertSoft reporting software. Reports can include, trace graph, schematic and table analysis, loss test table and connector image.
