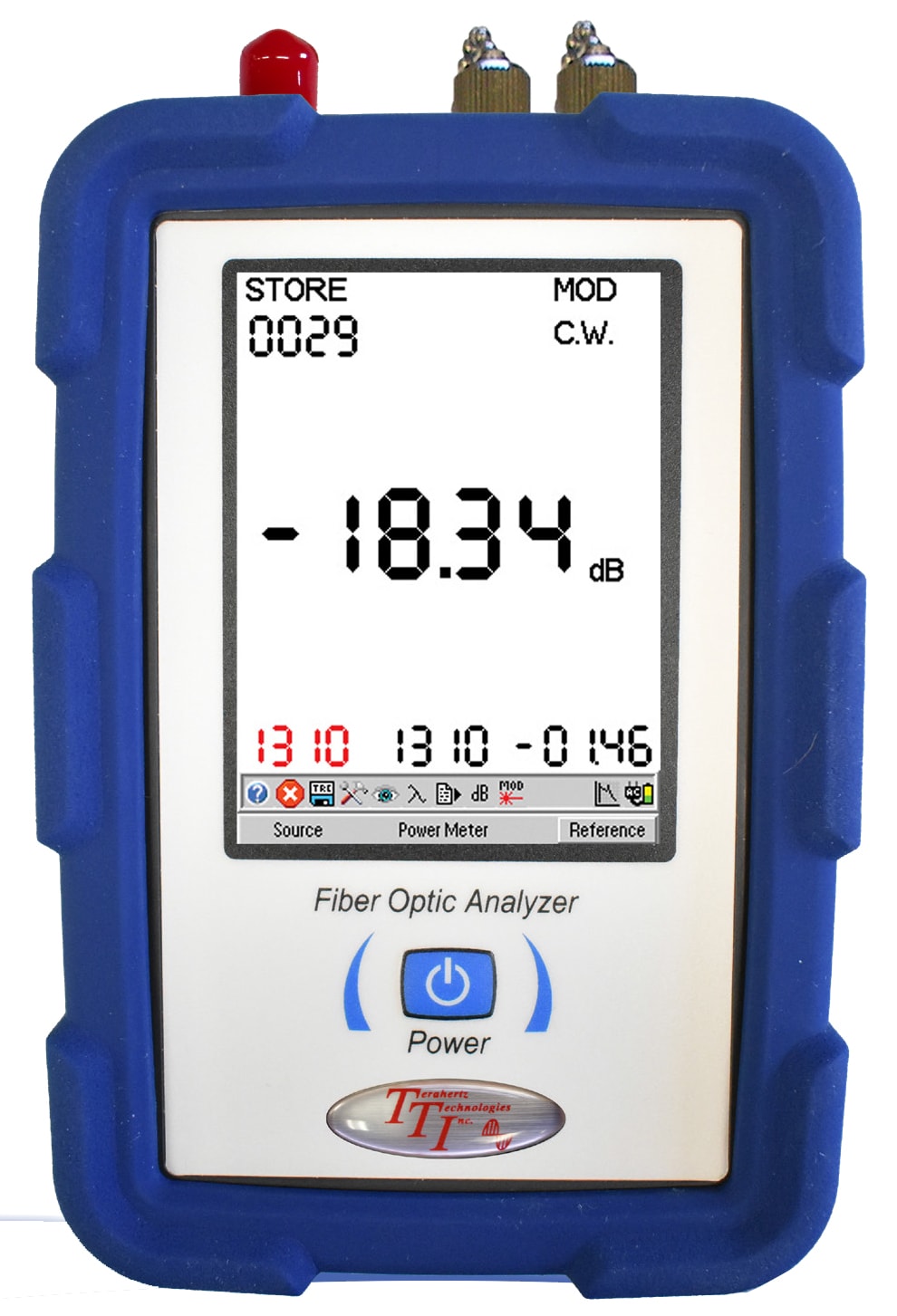

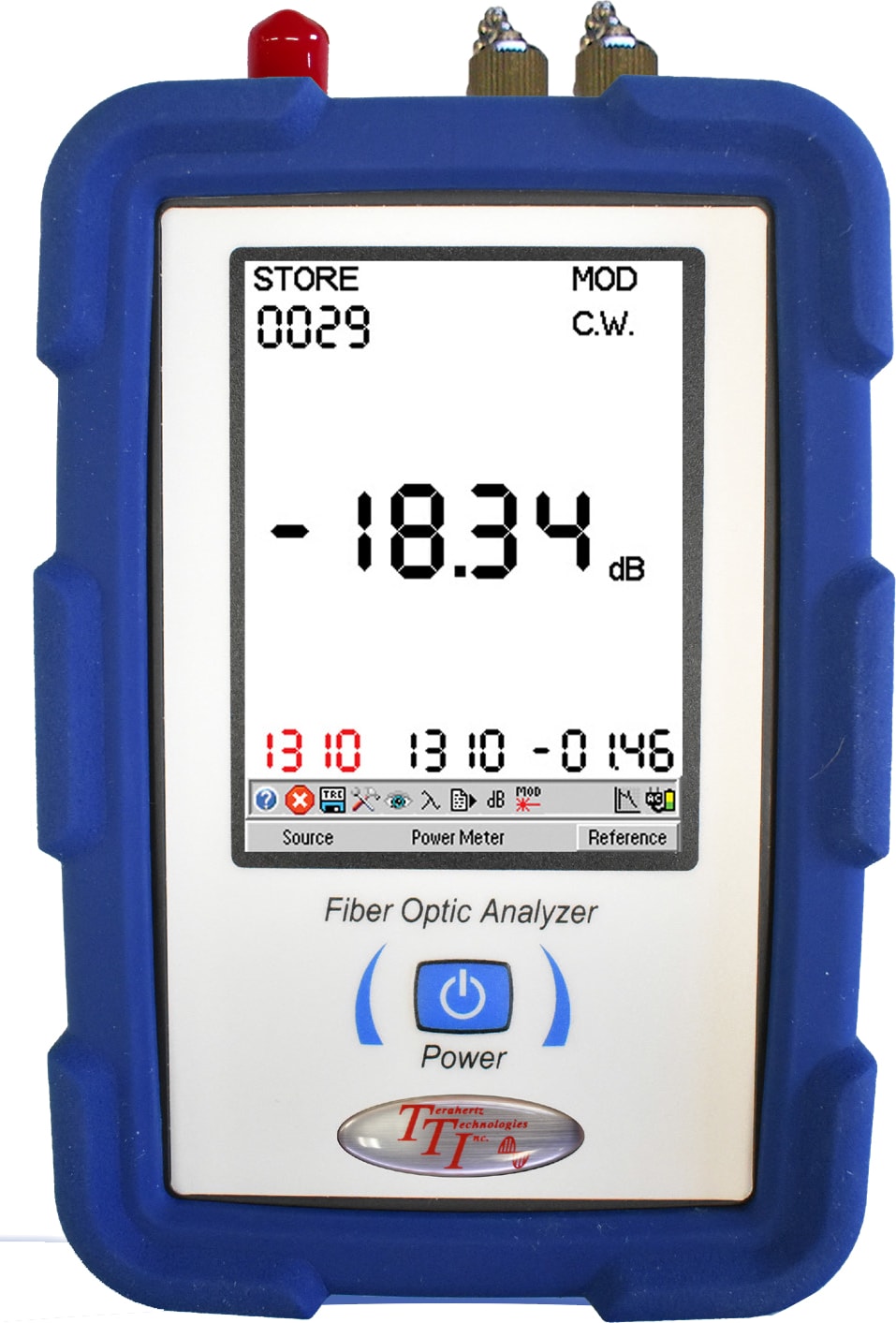

Terahertz FTE-5200-1315 - Advanced Loss Test Set with ORL, 850/1300/1310/1550nm Light Source, Quad Wave

The FTE-5200 combines four functions for testing optical networks together in one unit. It brings together a -60dB ORL meter (optional), power meter, laser source and Auto Center/Pass/Fail Video Scope. (probe sold separately). The LTS may be purchased as a standard unidirectional or as a fully bidirectional loss test set.

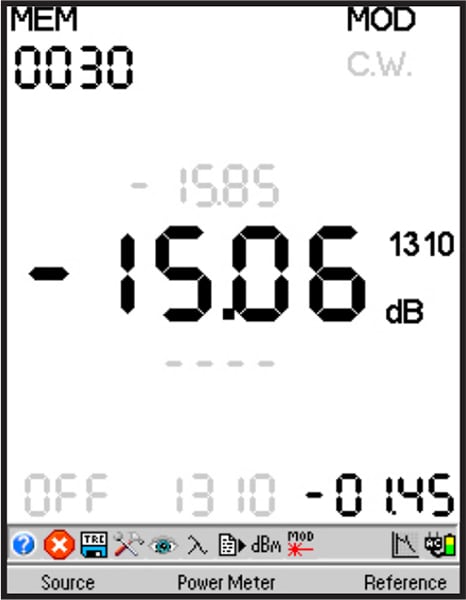

The FTE-5200 is a full featured ORL Loss Test Set. It has a 4” super bright color display with large easy to read characters. It performs optical return loss measurements to -60db at up to three wavelengths and is an automated loss test set with dual or triple wave Light sources. The power meter uses an InGaAs detector which is calibrated at 850,1300, 1310, 1490, 1550 and 1625nm, with a dynamic range to -77dBm (CATV version is available). These units are available in single, dual or triple or quad wavelength configurations and displays and test up to three wavelengths at one time. In the Autotest mode, the master unit changes wavelengths at a fixed rate and informs the slave unit of the wavelength currently being measured. Use this method to test up to three wavelengths at a time and store the loss measurements for each of the lasers fired during the test. Up to 5000 test may be stored and recalled via the unit’s USB port. Use TTI’s CertSoft PC application software for downloading stored data and generating reports.

The CertSoft software is compatible with all of our fiber optic test equipment. The information from OTDR , TLS, ORL and video scope may be combined to offer a comprehensive report for all of your network testing needs.

The FTE-5200 includes a video scope (probe sold separately). Use the video scope to ensure the integrity and cleanliness of the connectors being tested.

Use the modulation feature to perform fiber identification function. The power meter will identify modulated signals at 270, 1000 and 2000 Hz produced by the integrated light source.
