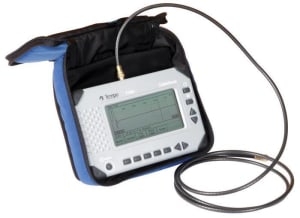

Tempo TV90US Cable Scout - Time Domain Reflectometer (TDR)

Find location of damage in drops

• Find impedance mismatches
• Locate bad passive devices
• Determine length of cable

Designed specifically for Cable TV and other coaxial cable applications, the Tempo TV90 applies the newest technology to provide both ease of use and coaxial cable testing performance not found in any other TDR.

Simply select the cable type to be tested and the TV90 does the rest. Pulse width, Vp, gain, and vertical position are automatically selected and adjusted as you scan the cable. Move the cursor to the fault and use the one-button zoom function to pinpoint its location.

The TV90 uses a 6 ns pulse width for close-in resolution. Faults as near as 3 feet from the pedestal are located with ease. Optimized pulsing and sampling, coupled with advanced filtering and signal-processing techniques, provide a clean waveform for easy event identification.
