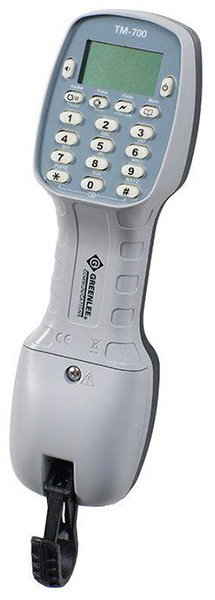

Tempo TM-700 Tele-Mate Telephone Test Set

Name: Tempo TM-700 Tele-Mate Telephone Test Set
Brand: Tempo
SKU: TempoTM-700
Price: 233.73 USD
Availability: InStock

0 reviews | Catalog: 52061409 | UPC: 783310009849 | Model: Tempo TM-700

Greenlee TM-700 Tele-Mate Telephone Test Set

Compare

BUTT SET, TELEMATE 700 (POS) (TM-700)

LCD (96 x 48 pixels, 5 lines) displays the following: Caller ID (name and number) and Call Waiting
Dialed number
Over-voltage conditions
Phone status (monitor, on hook etc.)
Line Voltage: 110 Vdc max
Loop Current: 125 mA max
Ring Frequency: 15-70 Hz. High impedance monitor enables use on DSL line
Ergonomic shape
32 digit memories
10 x speed dial memories plus ten "last number redial" stores
Over voltage and over current protection and warning
Tone and pulse dialing for versatility
Flash key for timed-break recall
Pause which can be stored
Headset included for hands-free operation (HS-001)
RJ11 socked and anchorage for strain relieved cords
Several cord options CS-01, CS-02, CS-03, CS-04, CS-05, CS-06, CS-07
Cordset with large "angled nose with bed-of-nails and spike" plus RJ11 plug

View Product Details

Your Price: $233.73

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Tempo TM-700 Tele-Mate Telephone Test Set

Bellcore and ETSI caller ID compatible

User-selectable ANSI, ETSI, or custom telephone performance
High voltage alert (110 VDC)
High current alert (125 mA)

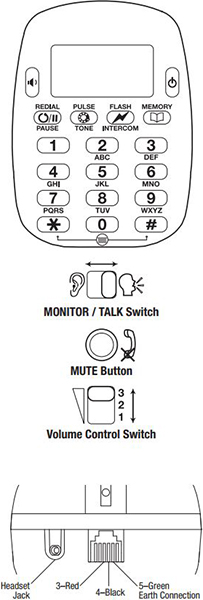

The Tempo Communications TM-700 Tele-Mate Pro Telephone Test Set is intended to assist with the installation and maintenance of complex telecom systems. A complete butt-in test set, the TM-700 adds useful features such as loudspeaker monitor, caller ID, speed dial, intercom, and line voltage/current/frequency meter.

The TM-700 not only works in handset mode, but can also be used with the standard headset (included) and with the amplified loudspeaker line monitor. Use the premium telco-type test leads and clips or the integral modular jack for line connection.

TM-700I Specifications
Telephone Compatibility**	TIA / EIA-470-B and ETS
Caller ID (CID) and Call Waiting (CIDCW)	Bellcore TR-NWT-000030 (GR30), SR-TSV-002476
Loop Limits (at 48 V)	Resistance: >5 kΩ Minimum Current: <10 mA
DC Resistance	Off Hook: <300Ω On Hook: >10 MΩ
Monitor Impedance	>400 k Ω
Pulse Dialing**	Rate: 10 pps or 20 pps Break: 60% or 66% Inter-Digit Pause: 800 ms (leakage during break >1 M)
DTMF/Tone Dialing**	-4 dBm / -6 dBm (ANSI); -9 dBm / -11 dBm (ETSI)
FSK Caller Name/Number and Call Waiting	Bellcore GR-30-CORE TR-NWT-000030 ETSI FSK Types
LCD	96 x 48 pixels, 5 lines. Displays the following: Caller ID (name and number) and Call Waiting Dialed Number Over-voltage Conditions Phone Status (monitor, on hook, etc.) Line Voltage: 110 Vdc max Loop Current: 125 mA max Ring Frequency: 15–70 Hz
Memory Dialing	10 Memories 10 LNR each holding 30 digits including pauses
Flash/Timed Break Recall**	100 ms 270 ms 600 ms
Line Protection	Over-voltage: 360 Vdc Continuous >500 V Peak Current Limited: 125 mA Lightning: ITU K.17, 20, 21 (1500 V)
Intercom Range	6 km
Toner Output	7 V pk-pk (square wave), two warble rates
Battery Life	2 x AA cells. Alkaline recommended. Will last 6 months with typical use.
Humidity	Operating: Up to 90% Storage: Up to 95%
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	14°F to 158°F (-10°C to 70°C)
