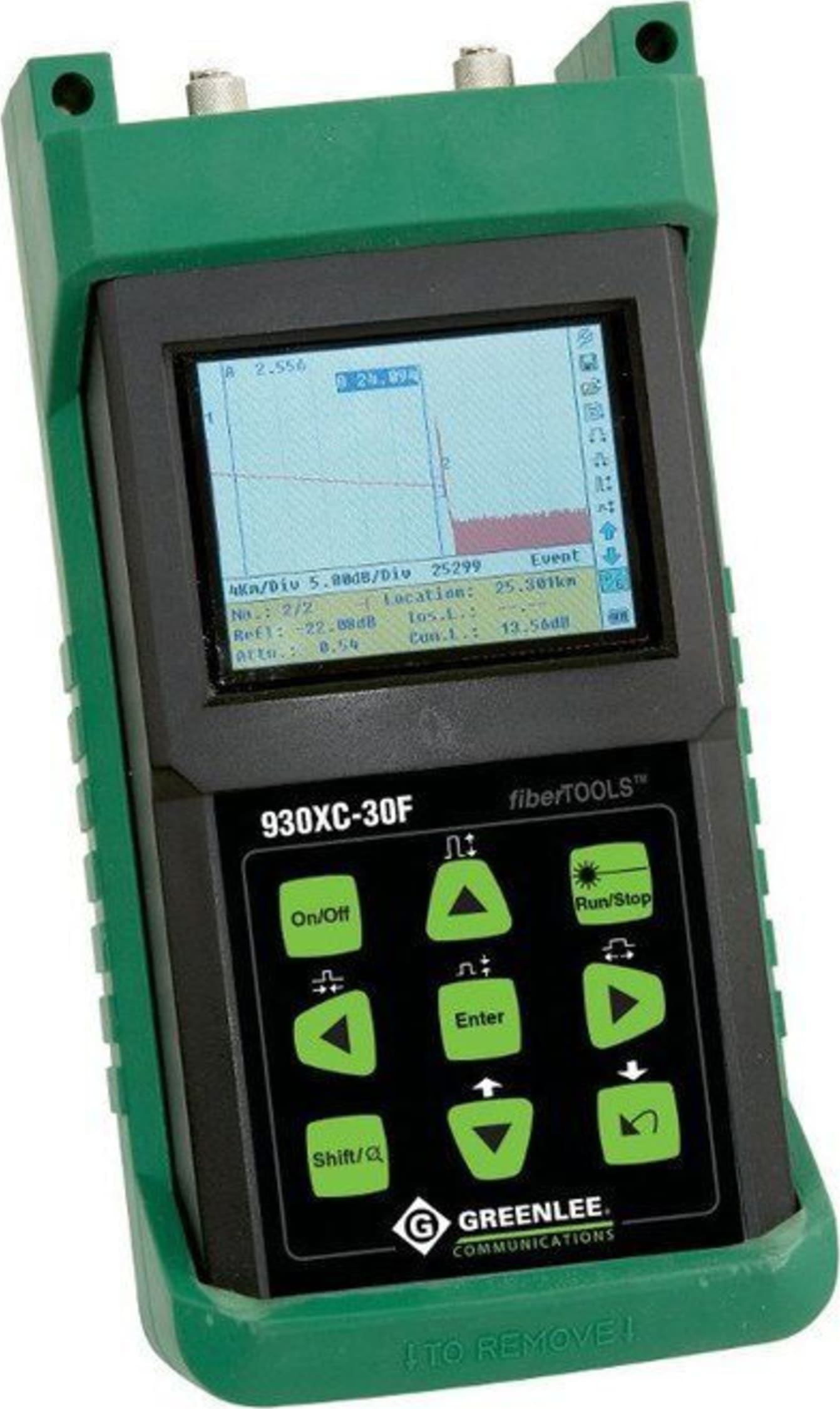

Tempo 930XC-30F-UPC-SC - Singlemode OTDR (1310/1550/1625), UPC/SC Connector

• One button test function - start with the push of a button
• Automatically sets test parameters for optimum test results
• Test live fibers without disrupting live service
• Link Viewer annotates entire fiber link in easy to interpret Pass/Fail format
• Generates custom reports including trace signature and fiber events

The 930XC OTDR is an easy to use, full-featured handheld test instrument that is capable of measuring the length to a fault or the length of singlemode and multimode fiber optic cables. The 930XC also measures the reflectance and insertion loss of reflective and non-reflective events.

The easy to learn user interface shortens the learning curve so that even inexperienced technicians can measure, qualify, and troubleshoot today’s and tomorrow’s high bandwidth fiber networks. Professional test reports are easily generated using industry standard SOR files that can besaved as a PDF for full documentation.

OTDR Operation Modes

INSTRUMENT SETUP

• Auto mode selects optimal distance range and pulse width
• All settings selected through easy to use menu selections
• Short pulsewidth (5ns) available for high-resolution measurements
• Color and high intensity monochrome settings for bright sunlight conditions
• Complete control of fiber analysis settings for auto measurement of splice and end of fiber

OTDR TRACE

• View and measure test results
• One button measurement of distance and loss information

Event View Mode
Page through each loss event for location in (meters/miles and feet) and loss in dB
Manual Measurement Mode
Perform manual measurement with A and B cursor for distance, loss and reflectance measurements
Measurement Setup
View settings used to acquire measurement
Fiber Analysis Software
View settings used for auto measurement of events

HI-RESOLUTION EVENT VIEWING

• Easy to view and measure in high-resolution mode
• One button to jump to high-resolution view
• One button jump back to entire trace view
• 0.1 meter sampling resolution
• Active cursor snaps to the next event in the fiber analysis table

Several styles available

The Tempo 930XC OTDR is available in four styles, as can be seen below. These cover a variety of wavelengths for both singlemode and multimode applications.
