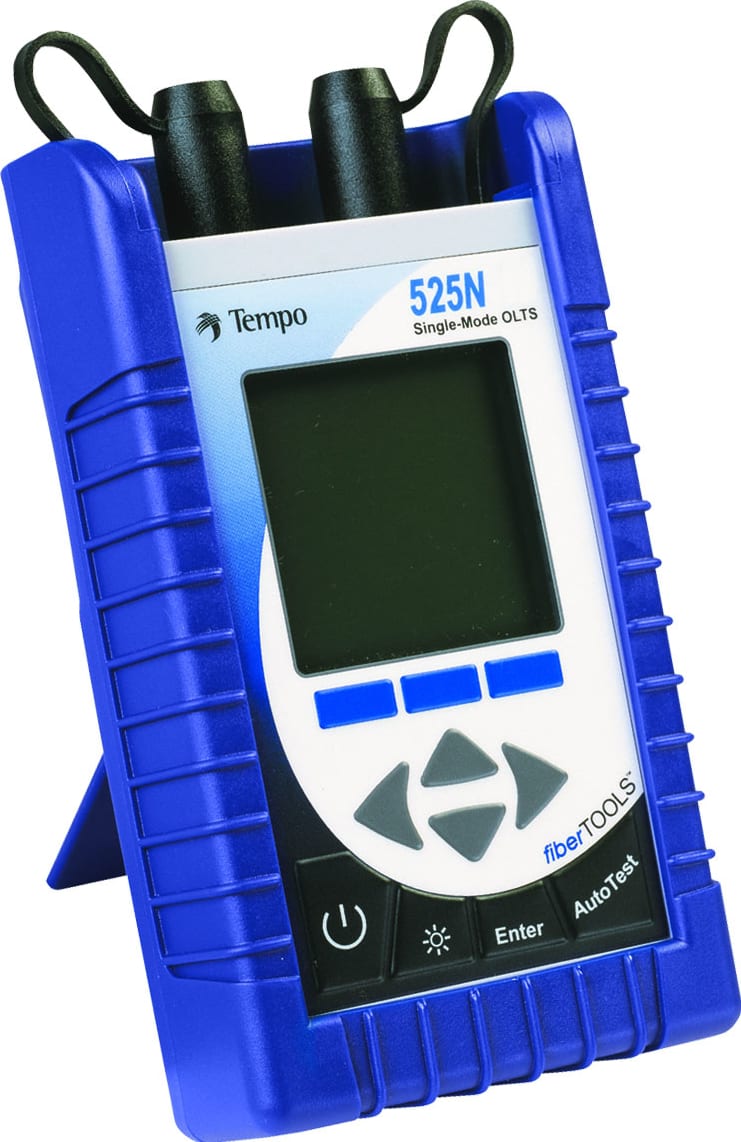

Tempo 525N-60 - Optical Loss Test Set (Single Mode 1310/1550)

• Optical loss test set
• For use with single mode system, 1310/1550nm
• Automated bi-directional testing
• Test End-to-End Loss and Return Loss
• One button AUTOTEST

Characterizing the insertion loss and return loss of your fiber has never been so easy! Testing fiber optic cable in the field is a time consuming and complicated process. The 525N simplifies acceptance testing by automating the measurement process, informing the user of PASS/FAIL condition on fiber under test based on user set thresholds. The 525N automatically assigns a fiber ID saving the test result to internal memory.

The 525N’s advanced engineering has simplified the measurement process to 4 simple steps:

1. Set-up: Menus to select type of measurement, wavelength(s), locations, user names, and insertion loss and return loss PASS/FAIL thresholds.
2. Perform reference measurement between units. (Only required once)
3. Press AUTOTEST and the instrument automatically performs bi-directional measurements, informs user of average loss, margin from threshold, and PASS/FAIL indicator. The test result is automatically stored to internal memory.
4. Once back in the office the user can download the measurements from the 525N via RS232 port to the Report Writer. The user can review the test results and print custom fiber or complete cable verification reports.

The 525N is housed is a rugged rubberized protective shell that can stand up to the rigors of the outside plant environment. The large backlit screen and sealed membrane panel enable the 525N to be used in the harshest of locations. The 525N is power by internal rechargeable batteries providing a continuous 8 hours of operation on a full charge.
