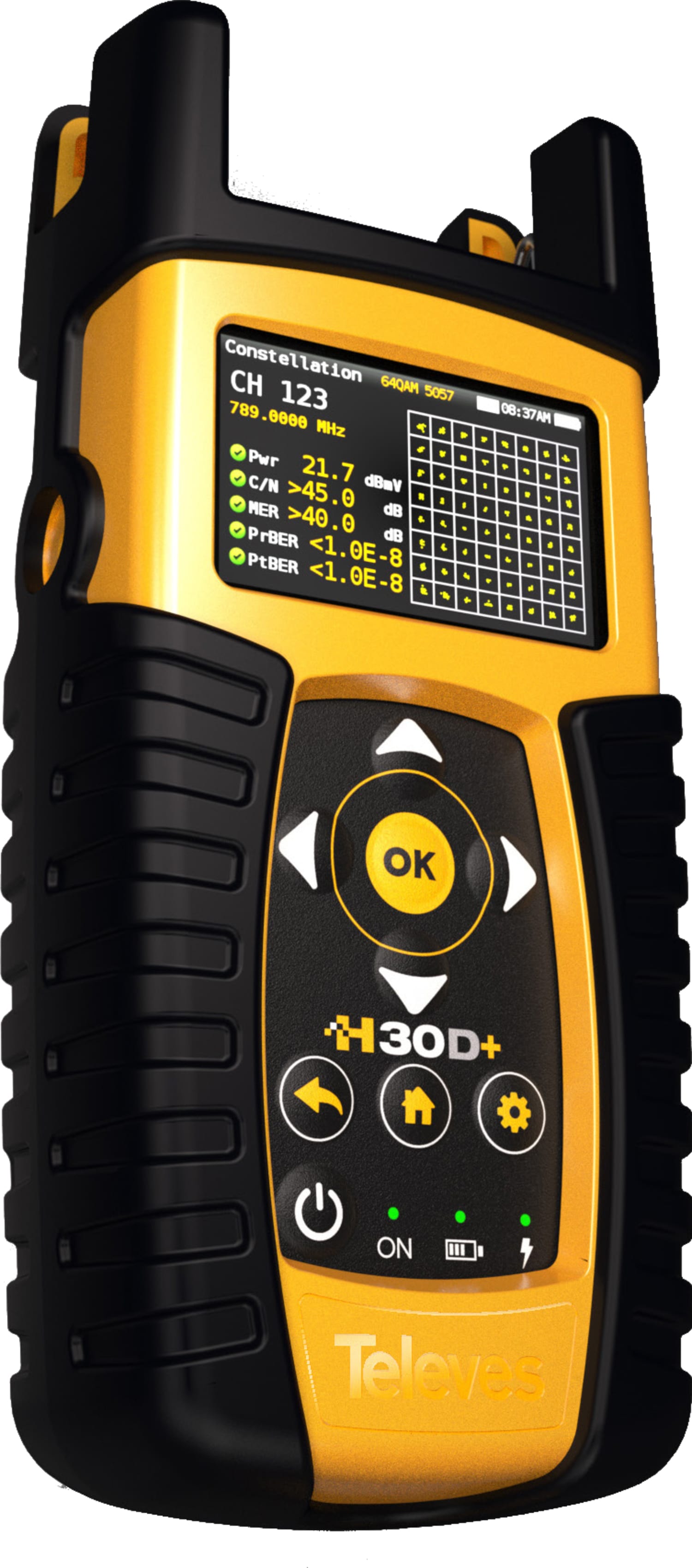

| Televes H30D+ Specifications |
| References |
| H30D+ |
593981 |
| Frequency |
| Range |
593981: 5 MHz to 1218 MHz |
| Resolution |
50 kHz |
| Tuning |
Frequency or channel |
| Input |
| Impedance |
75Ω F-type connector |
| Spectrum Analyzer |
| Span |
2.5, 6.25, 12.5, 25, 62.5, 125, 250, 500 MHz and Full |
| Scale |
5 and 10 dB/div |
| Auto and manual reference level |
✓ |
| Reverse Path Ingress Scan |
| Range |
Selectable 5 to 42MHz, 5 to 65MHz, 5 to 85MHz and 5 to 204MHz |
| Mode |
Peak, Average, Min, and Real-time |
| Digital Channel Power Measurements |
| Power |
-15 to +50 dBmV (-35 to +60dBmV opt.593235) |
| Accuracy |
±2dB |
| Resolution |
0.1dB |
| Digital Measurements ATSC 1.0 |
| Freq. Range |
42 - 1002MHz |
| MER |
Up to 38dB |
| PreBER |
9.9E-2 - 1.0E-6 |
| PostBER |
1.0E-3 - 1.0E-8 |
| Constellation with Zoom Capability |
✓ |
| Digital Measurements ATSC 3.0 (H30D+Adv or opt. 593280) |
| Freq. Range |
42 - 1002MHz |
| MER |
Up to 38dB |
| LDPCBER |
1.0E-2 - 1.0E-6 |
| BCHBER |
1.0E-3 - 1.0E-8 |
| Echoes |
✓ |
| Constellation with Zoom Capability |
✓ |
| Digital Measurements QAM |
| Freq. Range |
42 - 1002MHz |
| Demodulation |
ITU-T J.83 Annex A/B standard |
| Support |
16, 32, 64, 128 and 256 QAM, QPSK |
| Symbol Rate |
2 to 6.9 MS/sec |
| Q.A.L. Technology (QAM Auto Lock) |
Automatic detection of signal characteristics and modulation parameters |
| C/N |
Up to 45 dB |
| MER |
Up to 45 dB |
| Pre-BER and Post-BER (Annex B) |
1.0E-3 to 1.0E-8 |
| BER (Annex A) |
1.0E-3 to 1.0E-8 |
| Constellation with Zoom Capability |
✓ |
| Analog Measurements |
| Freq. Range |
42 MHz to 1002 MHz |
| Level measurement |
-15 to +50 dBmV (-35 to +60dBmV opt.593235) |
| V/A |
up to 30 dB |
| C/N |
up to 54 dB |
| Accuracy |
±2 dB |
| Resolution |
0.1 dB |
| Channel Plans |
| Factory channel plans |
FCC STD, FCC EXT, FCC OFFAIR, CCIR, CCIR+LTE |
| Custom channel plans (learning plan) |
✓ |
| System Scan |
| Channels |
User selectable zoom up to all channels (analog or digital) |
| Measurements |
Level bar representation and C/N BER/MER of the selected channel |
| Tilt |
| Channels |
Up to 16 channels (analog and/or digital) |
| Selectable markers |
✓ |
| Pass/Fail Indicators |
| Factory proFles |
Headend, Fiber Nod, Trunk, Bridge, Line Ext, Tap, End Line, Ground, Modem/STB, Off Air |
| Custom profiles |
up to 20 profiles |
| Voltmeter |
| Range |
±5VDC to ±150VDC, ±5VAC to ±100VAC |
| Accuracy |
±(0.5V +1%) |
| Speed Test |
| DCHP Status |
✓ |
| Connection Status |
✓ |
| Ping |
✓ |
| Lost packets |
✓ |
| DS/US speeds |
593902: 500Mbps |
| Service Info |
| Channel parameters |
NIT, PAT, TSID, CBRT, number of services |
| Service parameters |
SID, VID, AID, bitrate, encoding type |
| Video visualization |
MPEG-2 / MPEG-4 |
| HEVC visualization |
Up to 1080p (H30D+Adv or opt. 593252) |
| Cable Modem (H30D+ / H30D+ Adv) |
| Modes |
3.1 / 3.0 / BPI+ |
| Dowstream |
Up to 32 QAM channels and 2 OFDM channels of 192MHz |
| UpStream |
Up to 8 QAM channels and 2 OFDM-A channels |
| Connect Status |
DS and US frequency, DHCP, TOD, config. file name, security level, registration |
| Diplexer |
Auto (config. file) or user selectable (5-85MHz / 108-1002MHz) (5-204MHz / 258-1218MHz) |
| Measurements |
Bar diagram of DS and US channels. Power, MER, PreBER and PostBER of selected channel |
| Throughput Test |
IP modem, DS and US maximun speed, ping current and average delay, lost packets, transfer speed |
| Modem Emulation |
Connection status of the modem, instantaneous speed and size data sent through the modem |
| D3.1 Advanced Measurements |
PLC: Frequency, level, MER, CWE
Level: average, max, min
MER: average, std, pct
lNCP CWE
Profile A: Corrected / Uncorrected CWEMER: average, std, pctl |
| Upstream Equalizers |
Bar diagram of US channels equalizer, level, time and distance of selected channel |
| Throughput Test |
DHCP Status, Connection Status, Ping Delay, Lost Packets,
Upstream and Downstream Speed, Modem IP, maximum DS and US Speed,
current and average PING delay, lost packets, transfer speed (via FTP). |
| LT Monitoring |
| Historical measurements in the selected channel |
✓ |
| Time interval between two consecutive measure shots |
User defined |
| Connectivity |
| Bluetooth |
✓ |
| Wifi |
✓ |
| Wi - Fi Scan (H30D+Adv or Option 593250) |
| Automatic Wi-Fi networks scan |
✓ |
| Data shown |
networks name, MAC, channels, access point power, protection access type |
| Views |
list and map |
| IPTV Analyzer (H30D+Adv or Option 593251) |
| Measurements |
packets per second, min. and max. packet arrival time,
IP payload bitrate, UDP payload bitrate, media loss rate, lost IP frames |
| Service inf |
✓ |
| General Specification |
| Display |
2.8”TFT 400 x 240 full colour |
| Weight |
H30+ : 529g (1.16lb)H30D+ & H30D+Adv: 633g (1.39lb) |
| Dimensions |
6.9 x 3.9 x 2 in / 175 x 100 x 52 mm (H x W x D) |
| AC Adaptor |
Input: 100-240V ~ 50-60Hz
Output: 12VDC, 2A |
| Battery |
Li- Ion smart battery (7.2VDC, 2550mAh) |
| Operating Time |
Up to 4 hours |
| Operating Temperature |
-5ºC to 45ºC (23ºF to 104ºF) |
| Storage Temperature |
-20ºC to 70ºC (-4ºF to 158ºF) |
| Humidity |
5% to 95% non-condensing |
| Ruggedness |
Survives 1 m (3 ft) drop to concrete on all sides |
| Communication Interfaces |
RJ45 10/100/1000-T Ethernet interface for Remote Control, Measurements,
Datalog Retrieval and Automatic Software Updates |
| Storage |
1.5 GB (internal) for measurements |
| Power |
up time < 10 seconds |
