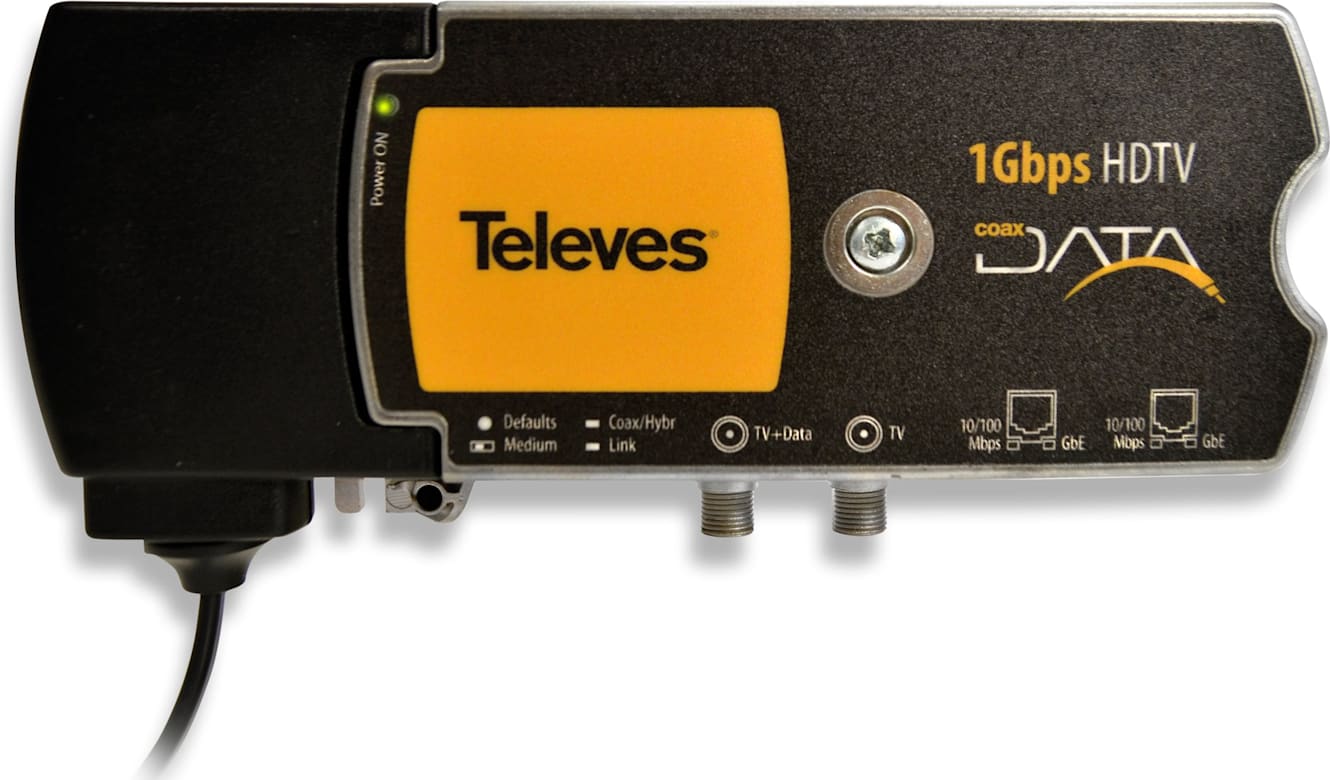

Televes 769281 Coax Data Network Modem - 1 Gbps - COAX+PLC - 2xETH (US)

Name: Televes 769281 Coax Data Network Modem - 1 Gbps - COAX+PLC - 2xETH (US)
Brand: Televes
SKU: Televes769281
Price: 199.00 USD
Availability: InStock

0 reviews | Model: Televes 769281

Compare

CoaxData Network Modem 1 Gbps - COAX+PLC - 2xETH (US)

CoaxData Network Modem 1 Gbps - COAX+PLC - 2xETH (US)
Incorporates power supply, two “F” connectors for TV and data connectors and two RJ-45 Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T
Flows perfectly suited to applications like VoIP, telephony, Internet TV, video on demand, internet access and exchange IP data in general
Integrated quality service (Quality of Service, QoS ). 128bit AES coding
Flexible and scalable solution up to 253 products
No changes to the television network. The system is compatible with a strong attenuation of coaxial cable (~ 85dB).
Remote administration using management software CoaxManager and software control 'of access .

View Product Details

List Price: $284.29

Your Price: $199.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Televes 769281 CoaxData Network Modem 1 Gbps - COAX+PLC - 2xETH (US)	Televes 769282 CoaxData Network Modem 1 Gbps - COAX+PLC - 1xETH+1xSFP (US)	Televes 769283 CoaxData Network Modem 1 Gbps - COAX - 1xETH (US)
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Televes 769281 - Coax Data Network Modem 1 Gbps - COAX+PLC - 2xETH (US)

Flows perfectly suited to applications like VoIP, telephony, Internet TV, video on demand, internet access and exchange IP data in general
Integrated quality service (Quality of Service, QoS ). 128bit AES coding
Flexible and scalable solution up to 253 products

Main Features

Connect your computer to the Internet access services, using existing wiring in your building.
Easy installation, no need to open the computer or install any software driver.
2xLED to indicate the status of the modem.
2xEthernet (Ref.769201) 1000BASE-T/100BASE-TX/10BASE-T to allow connection to multiple computers in your home to Gigabit speeds: PC, game console, printer, STB (Set-top Box).
IEEE 1901 Compliant with HomePlug AV PHY that supports 2880 OFDM carriers with 4096/1024/ 256/64/16/8 QAM, QPSK, BPSK and ROBO mode capable of transmitting up to 700 Mbps and up to 350 Mbps physical rate of rate UDP over coax.
Operating bandwidth in the return channel 2 to 67,5 MHz with a maximum attenuation of 85 dB supported. No requirement of minimum attenuation. Reach distances greater than 1km

The CoaxData 1Gbps-HDTV can transmit IP data over coaxial cable installations with coexistence of TV channels or other existing services. The Coaxial Ethernet modem immediately connects multiple PCs on the coaxial network or powerline on your home, hotel or buildings without additional cabling.

The 769201 CoaxData 1Gbps-HDTV incorporates power supply, two “F” connectors for TV and data connectors and two RJ-45 Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T.

Robust metal cover, which enables compliance with CE regulations Coaxial. Highly robust against external interference. Transfer up to 700 Mbps over coaxial and 500 Mbps over PLC for triple-play applications such as VoIP telephony, Internet TV, video on demand, Internet shared access. Quality of Service (QoS) for classifying the data and set priorities for multiple services. Allows up to 253 slaves ideal distribution datos. Datos shared services and private insured by encrypting the data. High coverage that supports high attenuation > 85dB and a distance of 1.2 Km via coax.

General
IP Network Adapter to Coaxial infrastructure and Powerline
Modes HomeNetworking and MDU / MTU
Up to 253 devices per master in Mode MDU / MTU
Supports multiple masters, up to 4, on the same frequency. A total of 1012 devices
Data Frequency Range	2 to 67,5 MHz
TV Frequency range	87-2150MHz
Maximum Attenuation	85 dB
Output Signal	130 dBuV
Power spectral density	-50dBm/Hz
Low Power spectral density	-135dBm/Hz
Temperature range	-5 ° C to 45 ° C
Distance
Coax Cable	1.2Km
PowerLine	300 m
LEDs
Led On/Off
Medium	Detection of Coaxial / Hybrid
LINK	Link Establishment and activity.
1000/100/10Mbps	Ethernet Link and Activity on
Standards
IEEE 802.3 10BASE-T, 100BASE-TX, 1000BASE-T
HomePlugAV IEEE P1901
SFP with support for 802.3z 1000BASE-X
Modulation and Channel Coding
Dynamic adaptation to channel conditions and frequency synchronization with the PLC network 50/60Hz
2880 OFDM carriers, QAM 4096/1024/256 / 64/16/8, QPSK, BPSK and ROBO mode.
Automatic error correction based on FEC (forward error correction) and TCC (Turbo Convolutional Codes)
QoS
Supports Multicast. IGMP snooping. MLDv2/IGMPv3 / IGMPv2
Four transmission queues prioritized
VLAN IEEE 802.1p prioritization
Type of Service (ToS) and COS (Class of Service)
Source/Destination MAC Address Classi®er
Source / Destination IP Address Classi®er.
Other adjustable classi®ers ®lters
AC and Consumption
108V-254V~ 50/60Hz
Consumption	Max 6Watts
Low Power Mode (Advanced Power Management) Max 1.8Watts
Transmit Modes
HomeNetworking	Asynchronous mode based on CSMA / CA with low latencies.
MxU	Token-based synchronous mode (Hidden Node) which synchronizes slave transmissions and supports long distances
Security
Establishment of private networks using network key (NPW, Network Password key)
Privacy of communications using AES-128 encryption (NEK, Network encrytion key)
Privacy settings on devices using AES-128 access key (NVAK, Non-Volatile Access key)
Connectors
Electric cable EURO
2 x "F" Connectors 75 Ohm, low pass ®lter to the data (2 to 67.5 MHz) and high-pass ®lter for TV Services (87MHz- 2150MHz).
2x RJ45 ports for 1000/100/10Mbps.Auto Ethernet MDI / MDIX.
Normative
Compact Design, robust and shielded that meets all applicable regulations
UNE-EN 60950-1:2007 / AC: 2012: product safety
UNE-EN 55022:2008 Radio Interference
UNE-EN 55024:2011 immunity requirements
UNE-EN 50412-2-1:2006 Immunity requirements for low voltage installations for communications equipment over powerline.
