Televes H30D3 CATV DOCSIS 3.0 Meter and Analyzer with Remote Control
Big features,
small package
Your go to meter for installation, remote monitoring, or troubleshooting. Rugged, light-weight, and extremely easy to use. Install, maintain, and troubleshoot digital and analog cable TV networks, onsite or remotely.

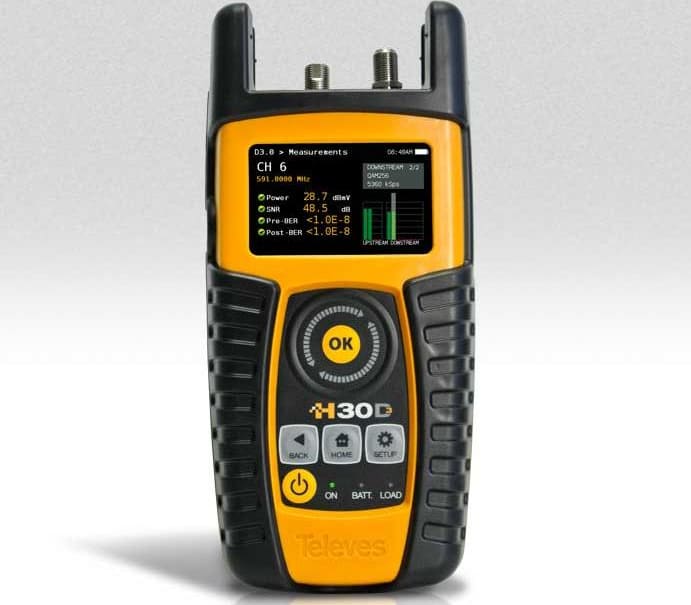

The H30 Series meters are light weight hand-held units, packed with all the features needed to install and troubleshoot DOCSIS 3.0 networks and television systems using QAM digital modulation as well as NTSC analog signals.
The H30 Series meters are light weight hand-held units, packed with all the features needed to install and troubleshoot DOCSIS 3.0 networks and television systems using QAM digital modulation as well as NTSC analog signals. This handy little meter is even inexpensive enough to leave in your headend and use its unique in its class remote measurement and control capabilities to provide long term monitoring or to trouble shoot those hard to find, intermittent problems.
Available for the first time in such a portable and affordable package, its real-time digital processing engine gives the installers the lab-precision measurements needed in today’s fulfillment environment. New from Televes, a go-to meter designed with the needs of a Cable TV operator in mind.
Remote Control & Measurements
In an affordable package
Control your meter and access your measurements from a smartphone, tablet, laptop or any other internet connected device. Ideal for extended signal tests over time in headends and broadband distribution networks. Leave your H30 connected to your headend or anywhere in your plant and control the unit to measure signals and quality parameters remotely. Once finished, export the results to your computer using the included HSuite software.
Rugged and Light Weight
Total reliability
A unique dual injected rubber and polycarbonate plastic housing ensures the best protection and durability. Weighing only one pound, the H30 is comfortable to carry and use. You can put it in your pocket or hang it from its sturdy built-in grommets using the provided shoulder strap... you will hardly know it's there!
Intuitive User Interface
Reducing the learning curve
Easy to use one-level menu structure with very intuitive functions for increased usability, faster operation and maximum productivity. No function requires more than three successive button pushes to achieve the desired operation. It doesn't get any easier than this, you will fly through the functions without ever reading the user manual.
Ergonomic Handheld Design
Three buttons + thumbwheel
Intuitive and smooth operation for quick and easy function selection. The capacitive thumbwheel and three button keypad enable easy one-handed operation for maximum field work flexibility and second to none ease-of-use. Do you know how to use your cell phone?... then you know how to use an H30, plain and simple.
Long Battery Life
Over 5 hours on a full charge
High quality Li-Ion batteries, in conjunction with our advanced low power consumption technology, provide enough juice for even the largest jobs. One hour of fast charging will provide almost three hours of extended operation.
Lab-quality Precision
Real-time digital processing
Designed from the ground up to instantaneously obtain all the information in the signal in real time, a true milestone in field testing. The H30 provides the accuracy and speed needed to detect the faintest transients, ingress, or spurious signals affecting your cable system. Lab-quality precision available for the first time in such a portable and affordable package.
Comprehensive Functions
With pass/fail indicators
Complete set of CATV features such as Single Channel Measurements, System Scans, Tilt Function, Constellation, Spectrum Analyzer, Service Identification, Datalogs, Reverse Path Ingress Scan, Plan Learning… as well as comprehensive DOCSIS 3.0 functionality including Connection Status Information, Quality Parameters for every upstream / downstream carrier, Throughput and Modem Emulation
Automatic SW upgrades
Updated at all times
User selectable automatic updates. Simply hook up to an internet connection and the H30 will download the latest software version from the cloud keeping itself fresh with the most up-to-date functionality and latest improvements available. You don't have to worry about when the last time you updated the software was, because your H30 will take care of that for you.
100% Automatic
Signal detection
Completely automatic, ITU-T J.83 Annex A/B/C and NTSC parameter detection and measurement with no setup needed. The H30 will immediately detect if the input signal is analog or digital and determine its constellation, symbol rate, and other modulation parameters, providing instantaneous readings with no user intervention.
Functionality? The H30 Series has you covered
Complete set of easy-to-use functions to install and monitor analog and digital cable TV, and DOCSIS 3.0 networks on-site or remotely.
Troubleshoot those hard to find, intermittent problems using its unique in its class remote measurement and control capabilities to provide long term monitoring. With the H30 Series meters you can ensure quality at all times, while you are on site and while you are away.
The H30 Series provides the complete portfolio of tools needed to assure the quality of analog and digital television and DOCSIS 3.0 services delivered over cable. Combined with our powerful real-time advanced techniques and unparalleled ease-of-use, the H30 is the ideal tool for engineers and technicians installing and maintaining next-generation cable systems.
Connection
Step by step
Get a step by step pass/fail indication as the modem finds, connects, and registers with the CMTS and get all the critical parameters along the way. Watch and confirm as the modem first finds a downstream channel then an upstream channel. Afterwards, it’ll get the configuration such as an address from the DHCP server, time from the TOD server, and the full configuration file and registration information.
Measurements
At a glance
See a summary pass/fail view of up to 8 downstream and 4 upstream channels at once. Select one of the channels and see the critical measurements all on the same screen. Select from one of the factory configured or user created profiles to set the appropriate pass/fail thresholds. Get all the pertinent details at a glance for any given channel including the modulation, symbol rate, frequency, power, MER, and both the pre and post error correction Bit Error Rates
Throughput Test
Speedometer
This function measures the upstream and downstream rates of the DOCSIS network. The rate measurements are performed using an FTP server that must be configured by the user (URL, file, get/put, user, password). This feature shows the IP modem within the DOCSIS network and the maximum speed negotiated (DS/ US). When you start the speed test, the speed value is constantly updated.
Modem Emulation
Building a bridge
This function sets the H30 to be used as a DOCSIS modem and to use it to give to another device a connection to the DOCSIS network via the H30’s ethernet port. This feature shows the connection status of the modem as well as the instantaneous speed and the size of the data sent through the modem.
Spectrum Analyzer
2.5MHz to full span
The H30's spectrum analyzer includes 2.5, 6.25, 12.5, 25, 62.5, 125, 250, 500MHz, and 1GHz full span settings, as well as automatic reference level adjustment. Real-time processing speeds ensure capture of any fast, intermittent plant impairments. You'll be blown away by the accuracy and level of detail provided by this ultra-portable pocket-sized spectrum analyzer. A definitive tool for identifying and locating noise, interference, ingress and other waveforms that may be affecting cable services quality.
Channel Info
Less is more
Sometimes a quick glance at a particular channel is all you need. The H30's advanced single channel measurement automatically detects the type of channel, providing video and audio levels, V/A, and C/N for analog signals, and Power, C/N, MER, Pre-BER, and Post-BER in digital mode. All these tests are completed using just one button push and all the metrics reported based on user-defined location thresholds providing pass/fail results easy to interpret by even the least experienced technician in the team.
Pass/Fail Indicators
Improve decision making
Reduce installer errors with on screen pass/fail indicators that give a quick and easy to understand interpretation of the test results. Different thresholds are available for different testing locations such as headend, launch amp, tap, bonding block, customer premises, etc. But not only are there presets, you can configure your own custom thresholds too.
Tilt Function
Always in balance
Get a quick view of your signal level differences over a specified frequency range so you can apply attenuation or equalization to adjust them. Take the meter to your farthest extents and see at a glance what carriers' power levels are out by their red, yellow, and green colors. Any number between 2–12 analog, digital or DOCSIS channels can be measured using the tilt measurement, and you can even select which carriers are your reference points to determine the tilt between any of the channels included in the measurement.
Constellation Display
Fine-tune your digitals
The Constellation display is an indispensable tool for the technician when trying to measure the quality of the QAM modulated signals. Constellation diagrams help detect the presence of noise, phase jitter, interference, and gain compression, all of which impact overall signal quality leading to service disruption. By visually inspecting the size and shape of the dots within the constellation matrix, the technician can easily identify the nature of the problem.
System Scan
With channel plan auto-learn
Learn which channels are present in your distribution with the ultra-fast learning plan feature. Then select any stored plan and scan every existing analog and digital channel in real time to determine the overall frequency response of the system. The scan measurement leverages the location based thresholds to clearly show whether or not signal levels comply with the cable system’s specifications by their green, yellow and red bar level indicators. This gives an easy-to-understand real-time view of the distribution, including the BER and MER values of the selected channel.
CSO & CTB
Deep dive into those analogs
Cable TV networks are generally located in densely populated areas or extend over large geographical regions. This makes cascading large numbers of amplifiers a frequent necessity that can be the cause of quality of service to drop below minimum acceptable levels. Composite second order (CSO) and composite triple beat (CTB) are commonly used quality parameters that can be measured with the H30 to ensure the best possible quality video for customers receiving analog signals.
Voltmeter & Hum
Cover all your bases
Don't want to worry about bringing a seperate volt meter with you?... no problem, the H30 will do that too. The H30 will also give you a Hum percentage to help you diagnose those ground and power interference problems that may result from a defective power supply or faulty/overloaded power inserters.
Reverse Path Ingress Scan
Maximum, average, peak
Help identify reverse path problems before your customers are affected. Poorly shielded coaxial cable and faulty terminations are important sources of ingress noise which can easily add up in the return due to the large number of subscriber-generated signals that are sent back to the headend. The combined and amplified interference is often responsible for service disruption, so having a good reverse path ingress scan tool is always a must.
Datalogs
Save and Download
As you are taking measurements or looking for problems, you can log data samples of all the signal parameters to further analyze problems, or just to keep for your records and job reports. May be a great training tool for others as well.
Equalizer Display
Track down impedance mismatches
You cleaned up your system getting the C/N ratio to reasonable levels, ingress and impulse noise are under control, the forward and reverse amps have been balanced, for the most part things are working reasonably well, but modems in some parts of the system are still having problems, or your higher order QAM channels aren't as good as you'd like... one possible culprit is microreflections, reflections, or echoes. Impedance mismatches are everywhere: connectors, amplifier inputs and outputs, passive device inputs and outputs, and even the cable itself.
The QAM auto-equalizer filter helps to get rid of this multi-path interference in the cable plant. The H30's equalizer analysis function displays the level of the equalizer coefficients in real time helping you pinpoint any possible mismatches in the distribution that can cause problems.
Service Info
Study MPEG details
Do you want to know what program content is on that QAM channel? The H30’s Service Info feature will tell you. In addition to the short description of the service, you’ll get the important parameters including the NIT, PAT, and TSID for the channel, and for the individual service you’ll get the SID and the PID, encode type, resolution, and bit rate for both the audio and video, all of which greatly help when trouble shooting your encoder configuration.
IP Speed Test
Double-check connectivity
Need a quick check of your data network at the headend or at a customer’s unit? The H30’s IP Speed Test allows you to check your basic network performance parameters so you don’t need to get your laptop out. This includes your upload and download speeds as well as your ping times and lost packets statistics.
