| Frequency |
|
Range
|
5 MHz to 1002 Mhz |
| Resolution |
10 kHz |
| Tuning |
Frequency or channel |
| Input |
| Impedance |
75Ω F-type connector |
| Spectrum Analyzer |
| Span |
2.5, 6.25, 12.5, 25, 62.5, 125, 250, 500 MHz and Full |
| Scale |
5 and 10 dB/div |
| Automatic and manual reference level |
✔ |
| Reverse Path Ingress Scan |
|
Range
|
Selectable 5 to 42 MHz, 5 to 68 MHz, and 5 to 85 MHz
|
| Mode |
Peak, Average, Min, and Real-time |
| Digital Measurements |
| Demodulation |
ITU-T J.83 Annex A / B / C standard |
| Support |
16, 32, 64, 128 and 256 QAM, QPSK |
| Symbol Rate |
2 to 6.9 MS/sec |
| Q.A.L. Technology (QAM Auto Lock) |
Automatic detection of signal characteristics and modulation parameters |
| DFE filter |
On / Off |
| Power |
-30 to +60 dBmV |
| C/N |
up to 45 dB |
| MER |
up to 40dB |
| Accuracy |
±2 dB |
| Resolution |
0.1 dB |
|
Pre-BER and Post-BER (Annex B)
|
1.0E-3 to 1.0E-8 |
| BER (Annex A/C) |
1.0E-3 to 1.0E-8 |
| Constellation |
| Display |
16, 32, 64, 128 and 256 QAM |
| Zoom Capability |
✔ |
| Channel Equalizer |
| Graphical representation |
✔ |
| Analog Measurements |
| Level measurement |
-30 to +60 dBmV |
| V/A |
up to 30 dB |
| C/N |
up to 54 dB |
| Accuracy |
±2 dB |
| Resolution |
0.1 dB |
| CSO/CTB |
✔
|
| Channel Plans |
| Factory channel plans |
Standard CATV, Return (T-Channels), HRC, IRC, Broadcast, CCIR |
| Custom channel plans (learning plan) |
up to 20 user-generated channel plans |
| System Scan |
| Channels |
user-selectable zoom up to ALL CHANNELS (analog and/or digital) |
|
Measurements
|
Level bar representation and C/N
BER/MER of the selected channel |
| Tilt |
| Channels |
1 to 16 or ALL CHANNELS channels (analog and/or digital) |
| Selectable markers |
✔ |
| Pass/Fail Indicators |
| Factory profiles |
Headend, Fiber Node, Trunk, Bridger, Line Extender, Tap, End of Line, Ground Bock, Modem/STB, Off Air |
| Custom profiles |
up to 20 user-generated pass/fail profiles |
| Voltmeter |
|
Range
|
9V to 150V |
|
Accuracy
|
±1% |
| Hum |
|
Range
|
2 to 5% |
|
Accuracy
|
±1% |
| IP Speed Test |
|
DHCP status, connection status, ping,
lost packets, down/upstream speeds
|
Optional |
| Service Info |
|
NIT, PAT, Transport Stream ID, Number
of services, Service name, SID, PID,
Encode Type, Resolution, Audio
and Video bit rates
|
Optional |

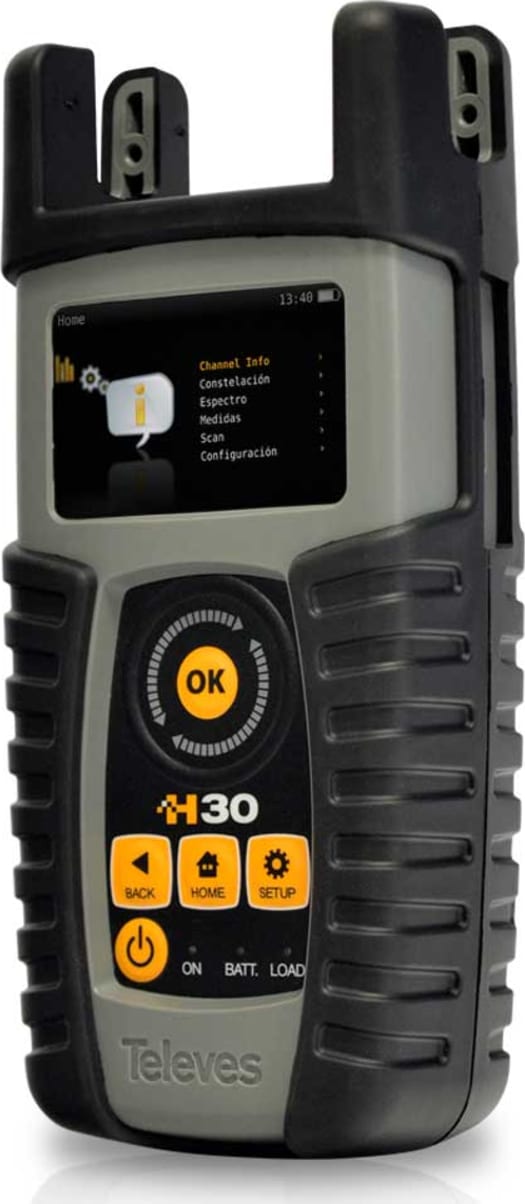

| Cable modem |
H30 |
H30D3 |
|
Modes: DOCSIS 3.0/2.0/1.1/1.0/BPI/ BPI+
|
- |
✔ |
|
DS: up to 8 channels / US: up to 4 channels
|
- |
✔ |
|
Connect Status: DS and US frequency, DHCP, TOD, configuration name, security level, DOCSIS version
|
- |
✔ |
|
Measurements: Power bar representation of DS and UP channels and Power, MER, PreBER and PostBER of the selected channel
|
- |
✔ |
|
Throughput Test: Modem IP, DS and US maximum speed, current ping and average delay, lost packets, transfer speed
|
- |
✔ |
|
Modem Emulation: Modem connection status, instantaneous speed and size of the data sent through the modem
|
- |
✔ |
