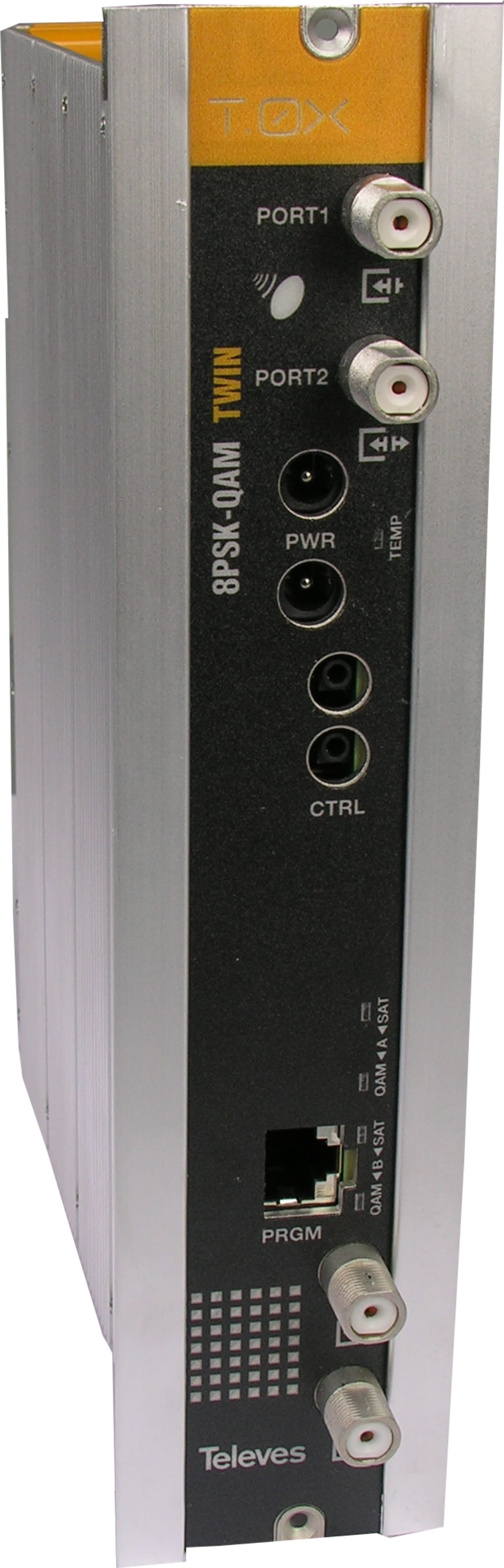

Televes 563701 - HDTV Transmodulator, Dual 8PSK to QAM

The T.0X Series is a complete family of digital cable headend products. These products include satellite QPSK and 8PSK to QAM transmodulators, universal modulators and fiber optic transmitters/receivers, amplifiers, and splitters. The T.0X family of products all fit in a standard 19” rack chassis that contains a power supply and room for 7 modules.

Each of the T.0X Q/8PSK modules contain 2 completely independent transmodulators that are capable of being fed from either the same or different sources with output frequencies able to be set independently across the entire range in order to provide maximum flexibility.


The entire transponder’s multiplex is converted to a single QAM channel so all content regardless of whether it is video or music, MPEG2 or MPEG4, SD or HD, encrypted or not, will be output unaltered eliminating the need for additional costly encoding or encryption equipment in the head-end.

Additionally, both inputs and outputs can be daisy-chained with the input/output of a module being added to the input/output of all the preceding modules thus eliminating the need for RF splitters and combiners.

Configuration and Control of the modules can either be done through the handheld controller or from any Internet connection with the use of the CDC headend controller module. The remote control of the system provides two easy to use options with the TSuite computer application or through any internet browser for maximum customer choice.


Block Diagram
