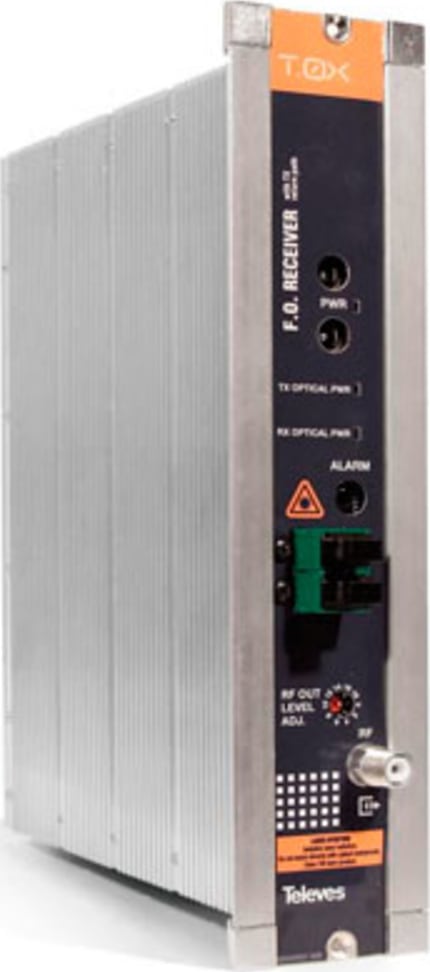

Televes 233501 T.0X Broadband Fiber Optic Receiver

Name: Televes 233501 T.0X Broadband Fiber Optic Receiver
Brand: Televes
SKU: Televes233501
Price: 311.25 USD
Availability: InStock

0 reviews | Model: Televes 233501

Compare

T.0X BROADBAND FIBER OPTIC TRANSMITTER AND RECEIVER

Multi-window input (1200 ···1600 nm)
Wide input dynamic range (-10 to 6 dBm)
RF amplified output capable of delivering: 114dBμV in MATV, and 117dBμV in SAT IF
Control signals available for monitoring optical input signal. Ref.2336 and 233601 also monitors the optical output signal in the return path
Equipped with tension-free connections (relay) for use as an alarm when the received optical power falls

View Product Details

List Price: $355.71

Your Price: $311.25

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Televes 233501 T.0X BROADBAND FIBER OPTIC TRANSMITTER AND RECEIVER	Televes 233601 T.0X BROADBAND Fiber Optic Receiver / Return Path Transmitter (1310nm / 6dB ...
Price
In Stock
Type (Fiber Optic Tx Rx Node)	Fiber Optic Receivers	Fiber Optic Receivers, Fiber Optic Transmitters
Compare	Add to compare	Add to compare

Recommended for you

Televes 233501 Accessories

Choose a Category

for the Televes 233501

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Televes 7234 T.0X UNIVERSAL PROGRAMMING UNIT

(1)

In Stock!

Add to Cart

Televes 5301 19 inch Rack Ring, installation for multiple T12/T.0X modules

(0)

In Stock!

Add to Cart

Televes 233501 - T.0X Broadband Fiber Optic Receiver

Multi-window input (1200 ···1600 nm)
Wide input dynamic range (-10 to 6 dBm)
RF amplified output capable of delivering: 114dBμV in MATV, and 117dBμV in SAT IF

Optical receivers that deliver the original RF signal that has previously been converted by a fiber optic transmitter.

Multi-window input.
Wide input dynamic range
Control signals available for monitoring optical input signal.
Equipped with tension-free connections (relay) for use as an alarm when the received optical power falls

T.0X Broadband Fiber Optic Receiver

Power
Power LED
Forward path power LED
Return path power LED
Alarm connector
Return path optical output
Forward path optical input
Return path attenuator
RF output
54 - 2150 MHz (forward path)
5 - 42 MHz (return path)

Optical Transmitters

LED ON	Indicates
TX Optical PW	Forward path optical power delivered between 9.5 to 10.5dBm
RX Optical PW	Return path optical level received between -7 to 3dBm

Reference					2335
USA version					233501
INPUT	F.O. Forward path	Wavelength		nm	1200...1600
		Detection bandwidth		MHz	1...3000
		Optical power received (max)		dBm	4/6
		Optical connector			SC/APC
	RF Return path	Frequency range		MHz	-
		Return path input level DIN45004B		dBµV	-
		Equivalent input noise figure @ 30 MHz		dbm/Hz	-152,5
		Return losses		dB	-
		Impedance		O	-

OUTPUT	RF Forward path	Frequency range		MHz	87...2150 54...2150 (1)
		Max. output level for CSO & CTB >= 60 dB(2)	MATV	dBµV/dBmV	93 / 33
			SAT IF	dBµV/dBmV	90 / 30
		Regulation margin		dB	0 - 18
		Return losses		dB	≥ 11
		Impedance		O	75
	F.O. Return path	Wavelength		nm	-
		Optical power transmitted (max)		dBm	-
		Optical connector			-

GENERAL		Powering voltage		Vdc	12 - 24
		Consumption 24Vdc		mA	155
		Ingress protection		IP	20
		Dimensions (WxHxD)		mm	50 x 216 x 175

Tech Specs

Video Distribution Equipment/Fiber Optic Transmitters / Receivers / Nodes
Type (Fiber Optic Tx Rx Node)	Fiber Optic Receivers
Test Equipment General Attributes
Warranty	2 YEARS
Warranty Details	Televes warrants, only to the original Purchaser, all Products be free from any defect in materials or workmanship for a period of two (2) years from the date of original purchase, unless otherwise specified.
Product Weight	1.87 LBS
Product Height	6.88 IN
Product Length	1.96 IN
Product Width	8.54 IN
Shipping Weight	1.87 LBS
Country of Origin	Spain
