Teledyne LeCroy T3SA3100 - 9 kHz to 2.1 GHz Spectrum Analyzer

Name: Teledyne LeCroy T3SA3100 - 9 kHz to 2.1 GHz Spectrum Analyzer
Brand: Teledyne LeCroy
SKU: LeCroyT3SA3100
Price: 3665.00 USD
Availability: InStock

0 reviews | Catalog: T3SA3100 | Model: Teledyne LeCroy T3SA3100

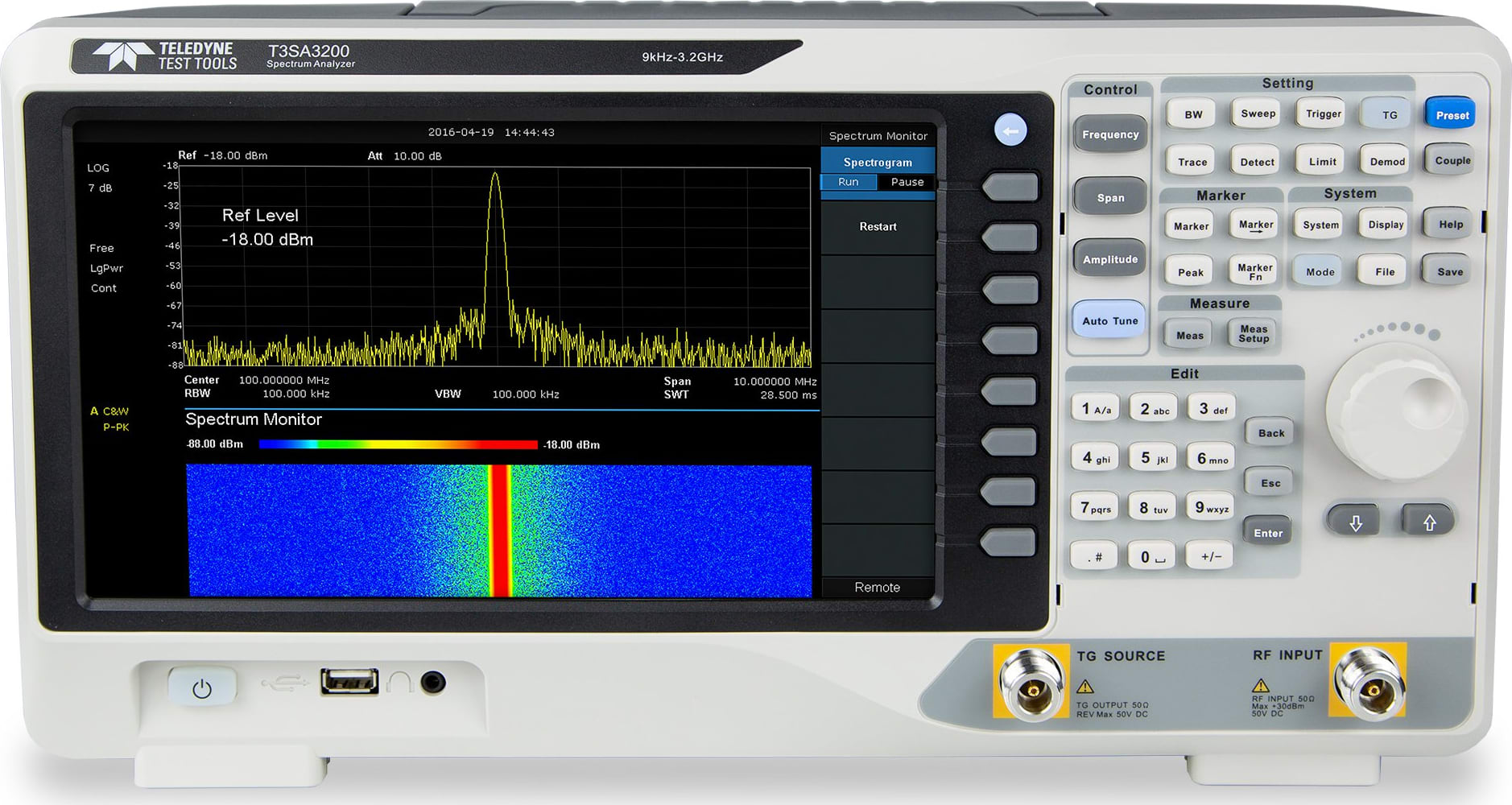

Teledyne Test Tools T3SA3000 Spectrum Analyzer

Compare

9KHz-2.1GHz, Spectrum Analyzer, Phase Noise<-98dBc/Hz, Amplitude Accuracy<0.7dB, 10.1 inch Color Display

-161 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
Total Amplitude Accuracy < 0.7 dB
1 Hz Minimum Resolution Bandwidth (RBW)
All-Digital IF Technology
Standard Preamplifier
Up to 3.2 GHz Tracking Generator Kit (Opt.)
Reflection Measurement Kit (Opt.)
Advanced Measurement Kit (Opt.)
EMI Pre-compliance Test Kit (Opt.)
10.1 lnch WVGA (1024 x 600) Display

View Product Details

Your Price: $3,665.00

In Stock:

Request a Demo

View Payment Options

Request Quote

Recommended for you

Teledyne LeCroy T3SA3100 Accessories

Choose a Category

Spectrum Analyzer Kits

for the Teledyne LeCroy T3SA3100

Cal Test CT4040 Spectrum Analyzer Accessory Kit

Catalog: CT4040

(6)

In Stock!

Add to Cart

Teledyne LeCroy T3SA3100 - 9 kHz to 2.1 GHz Spectrum Analyzer

Frequency range: 9 kHz - 2.1 GHz
Frequency resolution: 1 Hz
Range: 0 Hz, 100 Hz to 2.1 GHz
Reference frequency: 10.000000 MHz

Teledyne LeCroy T3SA3000 Spectrum Analyzer range consists of models with frequency ranges from 9 kHz to 2.1 GHz or 9 kHz to 3.2 GHz. The small footprint and easy user interface are augmented by a high-performance specification with many advanced measurement functions and capabilities.

The high-performance Spectrum Analysis capability can be enhanced further with options to extend its measurement capability.

Optional Tracking Generator: Adds tracking generator capabilities to your Spectrum Analyzer to make transmission measurements on backplanes, cables, filters, amplifiers, etc.
Optional EMI Pre-compliance test kit: Add EMI Receiver Measurements following CISPR 16-1-1.
Optional Reflection Measurement Kit: Adds VSWR, Return Loss, and Reflection Coefficient measurements.
Optional Advanced Measurement kit: Adds channel power, adjacent channel power ratio, time-domain power, occupied bandwidth, third-order intercept, etc, to further enhance the measurement capability of your spectrum analyzer.

Teledyne LeCroy spectrum analyzers offer comprehensive measurement capabilities even in the base units. The enhancement options support the user when conducting more complex measurements and make daily measurement tasks easier and faster.

General Specifications
Frequency Characteristic
---	T3SA3200	T3SA3100
Frequency
Frequency range	9 kHz – 3.2 GHz	9 kHz – 2.1 GHz
Frequency resolution	1 Hz	1 Hz
Frequency Span
Range	0 Hz, 100 Hz to 3.2 GHz	0 Hz, 100 Hz to 2.1 GHz
Accuracy	± Span / (number of sweep points - 1)
Internal Reference Source
Reference frequency	10.000000 MHz
Frequency reference accuracy	± [(time since last adjustment × frequency aging rate) + temperature stability + calibration accuracy]
Initial calibration accuracy	< 1 ppm
Temperature stability	< 1 ppm/year, 0°C ~ 50°C
Frequency aging rate	< 0.5 ppm/first year, 3.0 ppm/20 years
Marker
Marker resolution	Span / (number of sweep points - 1)
Marker uncertainty	± [frequency indication × frequency reference uncertainty + 1% × span + 10 % × resolution
bandwidth	+ marker resolution]
Frequency counter resolution	1 Hz
Frequency counter uncertainty	± [frequency indication × frequency reference accuracy + counter resolution]
Bandwidths
Resolution bandwidth	(-3 dB) 1 Hz ~ 1 MHz 1), in 1-3-10 sequence
Resolution filter shape factor	< 4.8:1 (60 dB:3 dB), Gaussian-like
RBW uncertainty	< 5 %
Video bandwidth	(-3 dB) 1 Hz ~ 3 MHz, in 1-3-10 sequence
VBW uncertainty	< 5%
1) The DANL with RBW set to 1 or 3 Hz will be similar to 10 Hz

Amplitude Characteristic
---	T3SA3200		T3SA3100
Amplitude and Level
Measurement range	DANL to +10 dBm, 100 kHz ~ 1 MHz, preamplifier off DANL to +20 dBm, 1 MHz ~ 3.2 GHz, preamplifier off
Reference level	-100 dBm to +30 dBm, 1 dB steps Preamplifier
	20 dB (nom.), 9 kHz ~ 3.2 GHz Input attenuation
	0 ~ 51 dB, 1 dB steps
Maximum input DC voltage	±50 VDC
Maximum average RF power	30 dBm, 3 minutes, fc ≥ 10 MHz, attenuation > 20 dBm, preamp off Maximum
damage level	33 dBm, fc ≥ 10 MHz, attenuation > 20 dBm, preamp off
Displayed Average Noise Level (DANL) 20°C
&nbps;	20°C ~ 30°C, attenuation = 0 dB, sample detector, trace average > 50
Preamp off		RBW = 10 Hz	Normalization to 1 Hz
	9 kHz ~ 100 kHz	-100 dBm (nom.)	-110 dBm (nom.)
	100 kHz ~ 1 MHz	-97 dBm, -101 dBm (typ.)	-107 dBm, -111 dBm (typ.)
	1 MHz ~ 10 MHz	-122 dBm, -126 dBm (typ.)	-132 dBm, -136 dBm (typ.)
	10 MHz ~ 200 MHz	-127 dBm,-131 dBm (typ.)	-137 dBm, -141 dBm (typ.)
	200 MHz ~ 2.1 GHz	-125 dBm, -129 dBm (typ.)	-135 dBm, -139 dBm (typ.)
	2.1 GHz ~ 3.2 GHz	-116 dBm, -122 dBm (typ.)	-126 dBm, -132 dBm (typ.)
Preamp on	9 kHz ~ 100 kHz	-107 dBm (nom.)	-117 dBm (nom.)
	100 kHz ~ 1 MHz	-122 dBm, -127 dBm (typ.)	-132 dBm, -137 dBm (typ.)
	1 MHz ~ 10 MHz	-138 dBm, -144 dBm (typ.)	-148 dBm, -154 dBm (typ.)
	10 MHz ~ 200 MHz	146 dBm, -151 dBm (typ.)	-156 dBm, -161 dBm (typ.)
	200 MHz ~ 2.1 GHz	-145 dBm, -148 dBm (typ.)	-155 dBm, -158 dBm (typ.)
	2.1 GHz ~ 3.2 GHz	-135 dBm, -139 dBm (typ.)	-145 dBm, -149 dBm (typ.)
Phase Noise
	20°C ~ 30°C, f c= 1 GHz
Phase Noise	<-95 dBc/Hz @10 kHz offset, <-98 dBc/Hz (typ.)
	<-96 dBc/Hz @100 kHz offset, <-97 dBc/Hz (typ.)
	<-115 dBc/Hz @1 MHz offset, <-117 dBc/Hz (typ.)
Level Display
Logarithmic level axis	10 dB to 200 dB
Linear level axis	0 to reference leve
Units of level axis	dBm, dBmV, dBμV, dBμA, V, W
Number of display points	751
Number of traces	4
Trace detectors	Positive-peak, Negative-peak, Sample, Normal, Average (Voltage/RMS/Video), Quasi-peak (with EMI option)
Trace functions	Clear write, Max Hold, Min Hold, View, Blank, Average
Frequency Responce
	20°C to 30°C, 30 % to 70 % relative humidity, attenuation = 20 dB, reference frequency 50 MHz
Preamp off	±0.8 dB
	±0.4 dB, (typ.)
Preamp on	±0.9 dB
	±0.5 dB, (typ.)

Amplitude Characteristic
	T3SA3200	T3SA3100
Error and Accuracy
Resolution bandwidth switching uncertainty	10 kHz RBW Logarithmic resolution ±0.2 dB, liner resolution ±0.01, nominal
Input attenuation switching uncertainty	20 to 30 , fc = 50 MHz, preamp off, Relative to 20 dB, 1 to 51 dB attenuation ±0.5 dB
Absolute amplitude accuracy	20°C to 30°C, fc = 50 MHz, RBW = 1 kHz, VBW = 1 kHz, peak detector, attenuation = 20 dB, 95th percentile reliability
	preamp off ±0.4 dB, input signal -20 dBm
	preamp on ±0.5 dB, input signal -40 dBm
Total amplitude accuracy	20°C to 30°C, Fc >100 kHz, input signal -50 dBm ~ 0 dBm, RBW = 1 kHz, VBW = 1 kHz, peak detector, attenuation = 20 dB, preamp off, 95th percentile reliability ± 0.7 dB
RF input VSWR	input attenuation 10 dB, 1 MHz ~ 3.2 GHz <1.5, nominal
Distortion and Spurious Responses
Second harmonic distortion	fc ≥ 50 MHz, mixer level -30 dBm, attenuation = 0 dB, preamp off, 20°C to 30°C, typ. -65 dBc
Third-order intercept	fc ≥ 50 MHz, two -20 dBm tones at input mixer spaced by 100 kHz, attenuation = 0 dB, preamp off, 20°C to 30°C, typ. +10 dBm
1dB Gain Compression	fc ≥ 50 MHz, attenuation = 0 dB, preamp off, 20°C to 30°C, nom. >-5 dBm
Residual response	input terminated = 50 Ω,attenuation = 0 dB, 20°C to 30°C, typ. <-90 dBm
Input related spurious	Mixer level = -30 dBm, 20°C to 30°C <-65 dBc
Sweep and Trigger
Sweep time	1 ms to 3000 s
Sweep accuracy	Accuracy, Speed
Sweep mode	Sweep	FFT
	RBW = 30 Hz ~ 1 MHz	RBW = 1 Hz ~ 10 kHz
Sweep rule	Single, Continuous
Trigger source	Free, Video, External
External trigger	5 V TTL level, rising edge/falling edge

Tech Specs

Spectrum Analyzers/Spectrum Analyzers Template
Bandwidth Range Max	2.1 GHz
Bandwidth Range Min	9 kHz
Type(Spectrum Analyzers)	Benchtop
Test Equipment General Attributes
Product Height	11.00 IN
Product Length	18.00 IN
Product Width	10.00 IN
Shipping Weight	13.00 LBS
Country of Origin	China
Shipping Height	11.00 IN
Shipping Length	18.00 IN
Shipping Width	10.00 IN
