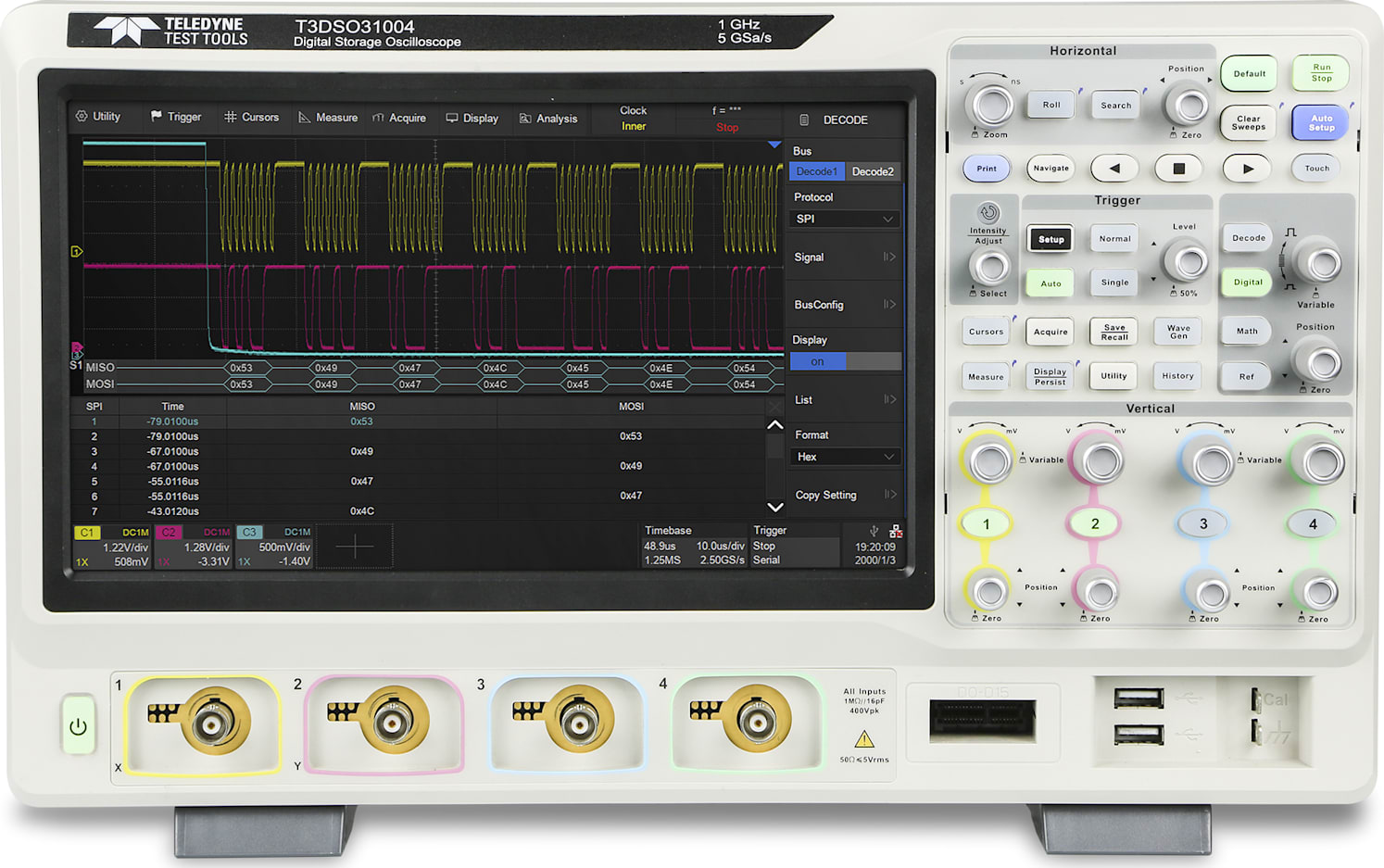

• Limited time promotional package, includes MSO probe
• 4 Channel / 500 MHz Bandwidth
• Standard serial bus triggering and decoding, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S.
• Decode only for MIL-STD-1553B, SENT and Manchester (use standard oscilloscope trigger functionality)

Powerful User Set Zone Trigger Extends Trigger Capability

Set up to 2 zones defining each as either an Intersect or a Non Intersect. Trigger occurs when conditions are met. Zone Trigger helps to simplify advanced triggering.

Record Length of up to 250 Mpts

The record length of up to 250 Mpts (interleaved) or up to125 Mpts (non-interleaved) allows use of a higher sampling rate to capture more signal detail. The hardware-based Zoom then allows quick zoom in to any area of interest.

Waveform Capture Rate up to 500,000 wfm/s

With a waveform capture rate of up to 500,000 wfm/s (sequence mode) and 110,000wfm/s (normal mode) the T3DSO3000 can easily capture glitches, infrequent anomalies, and other low-probability events.

History Mode

The always enabled History mode records up to 100,000 waveforms allowing users to scroll back through previous acquisitions to analyze past events and locate anomalies quickly. Serial decode, zoom and cursor measurements can be used.

16 Digital Channels/MSO (Optional) Included With Limited Time Package

The MSO option adds 16 digital channels to the T3DSO3000 enabling users to trigger and acquire digital as well as analog waveforms in a mixed signal debug environment.

Advanced Math Function

Two Math traces support Plus, Minus, Multiply, Divide, FFT, integration, differential, square root, average, Eres and formula editor, providing a quick insight into the waveform characteristics.

High Performance Front End

T3DSO3204: At 200 MHz bandwidth, the input noise floor is typically only 80 uVrms.

Serial Bus Trigger and Decode

Trigger and decode up to 2 common embedded and automotive serial buses, I2C, SPI, UART, LIN, CAN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and Manchester. Protocol information can be quickly and intuitively displayed, time aligned with the waveform and in table format.

Complete Connectivity

Connectivity includes External Trigger Input, Pass/Fail and Trigger Out, USB Device (USBTMC) and LAN for remote control, and a Kensington Lock security point.

Bode Plot

The T3DSO3000 Bode Plot application can control the T3DSO1000-FGMOD-A waveform generator, or any T3AFG40-80-120 function generator, to make Bode Plot measurements of passive or active components and circuits. The application scans the amplitude and phase response over frequency, making it possible to replace expensive network analyzers in less demanding applications. The T3DSO1000-FGMOD-A waveform generator allows Bode Plot measurements up to 25 MHz whereas using the T3AFG120 allows Bode Plot measurements up to 120 MHz.

Power Analysis

The T3DSO3000 Power Analysis application provides a full suite of power measurements and analysis tools. These tools enable an improvement in the efficiency of measurements made on switching power supplies and power devices. The Power Analysis application can measure Power Quality, Current Harmonics, Inrush Current, Switching Loss, Slew Rate, Modulation, Output Ripple, Turn On/ Turn Off, Transient Response, PSRR and Efficiency. Each measurement has a help screen showing a connection diagram with notes.
