Four channel digital oscilloscope

• 100 MHz bandwidth
• Automatic measurement function for 38 parameters
• Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)

Teledyne Test Tools new T3DSO1000 Oscilloscopes feature two channel and four channel models. The two channel model is available with 100 MHz analog bandwidth, a single ADC with a 1 GSa/s maximum sample rate, and a single memory module with 14 Mpts of sample memory. The four channel scope is available in 100 and 200 MHz models and incorporates two 1 GSa/s ADCs and two 14 Mpts memory modules. When all channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 7 Mpts. When only a single channel per ADC is active, the maximum sample rate is 1 GSa/s and the maximum record length is 14 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design. Tools for Improved Debugging

---

• Long Capture - 7 Mpts/Ch and 14 Mpts interleaved
• Math and Measure - 7 basic math functions plus FFT and 38 automatic measurement parameters
• Connectivity - USB for mass storage, printing and PC control, plus LAN for fast data transfer
• Serial Bus Trigger and Decode - I2C, SPI, UART, RS232, CAN, LIN
• Waveform Sequence Recorder - record and play back up to 80,000 waveforms
• Optional MSO - 16 Digital Channels (4 channel series only)
• Capture more time and show more waveform detail
• Extract results from waveforms and measurements
• Save data for external analysis and screen images for reports
• Debug serial buses directly in your Oscilloscope
• Replay the changing waveform history
• Add mixed signal debugging to your Oscilloscope

Function and Characteristics

---

When all channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel per pair is active, that channel has sample rate of 1 GSa/s

The four channel series has two 1 GSa/s ADC chips (channel 1 and 2 share one, channel 3 and 4 share another), so that each channel can achieve sample rates up to 500 MSa/and work on bandwidths of 200 MHz when all channels are enabled.

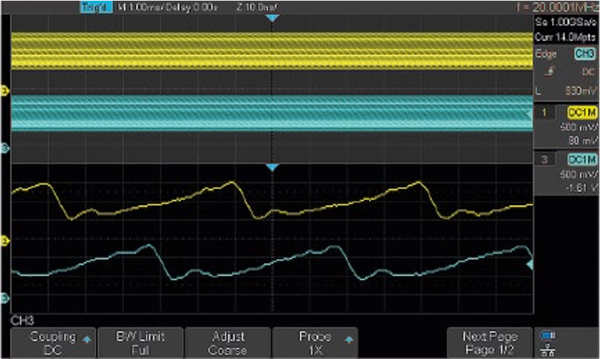

Record Length of Up to 14 Mpts (single  channel/pair mode), 7 Mpts/CH (two channels/ pair mode)	Waveform Capture Rate Up to 400,000 wfm/s
×	×

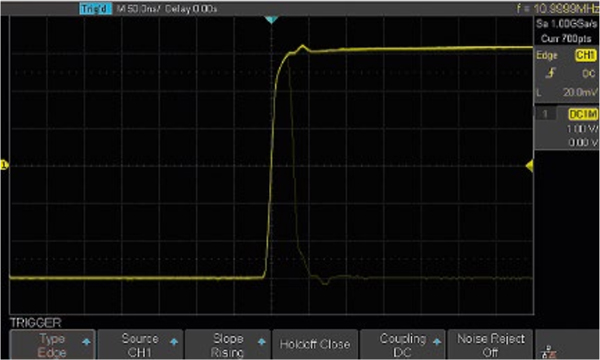

Using hardware-based Zoom technologies and max record length of up to 14 Mpts, users are able to over-sample to capture longer time periods at higher resolution and use the zoom feature to see more details within each signal.	With a waveform capture rate of up to 400,000 wfm/s (sequence mode), the oscilloscope can easily capture the unusual or low-probability events.

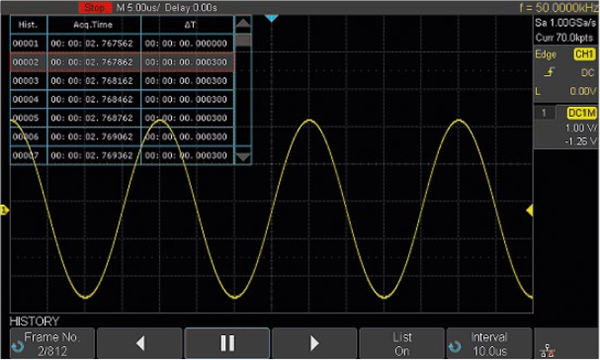

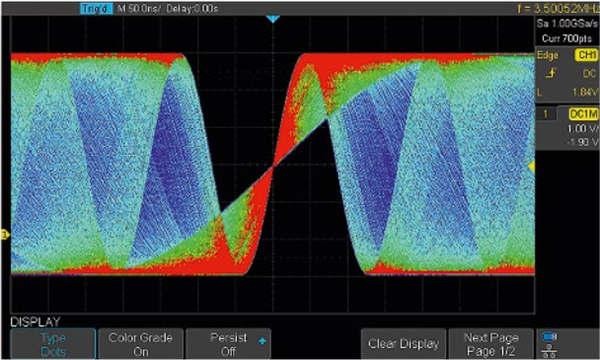

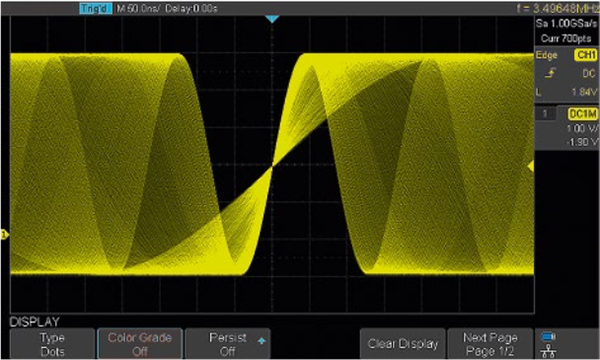

256-Level Intensity Grading and Color Temperature Display	History Waveforms (History) Mode and Segmented Acquisition (Sequence)
×	×
New display technology provides for fast refresh rates. The resulting intensity-graded trace is brighter for events that occur with more frequency and dims when the events occur with less frequency.	Playback the latest triggered events using the history function. Segmented memory collection will store trigger events into multiple (Up to 80,000) memory segments, each segment will store triggered waveforms and timestamp each frame.

×	×

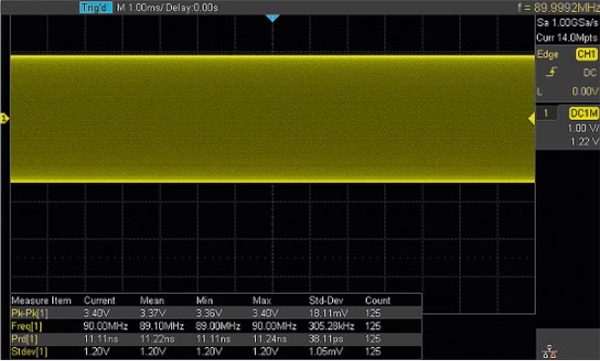

The color temperature display is similar to the intensity- graded trace function, but the trace occurrence is represented by different colors (color “temperature”) as opposed to changes in the intensity of one color. Red colors represents the more frequent events, while blue is used to mark points that occur lest frequently.	At any one timebase, T3DSO1000 can measure using all 14 M sample points. This ensures the accuracy of measurements while the math coprocessor decreases measurement time and increases ease-of-use.

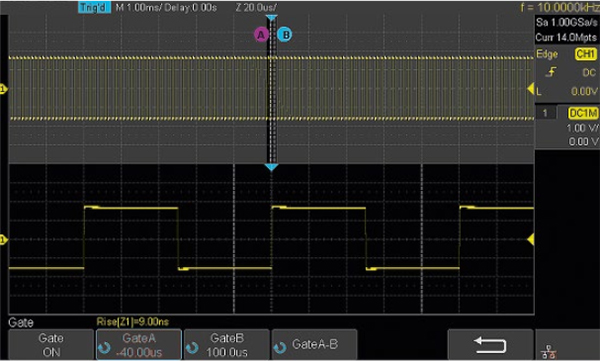

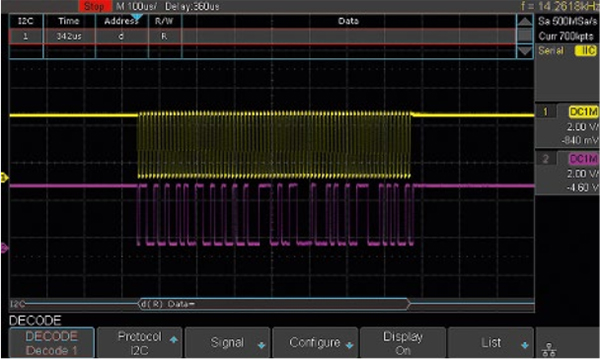

Serial Bus Decoding Function (Standard)	Gate and Zoom Measurement
×	×
T3DSO1000 displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.	Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing the measurements’ validity and flexibility.

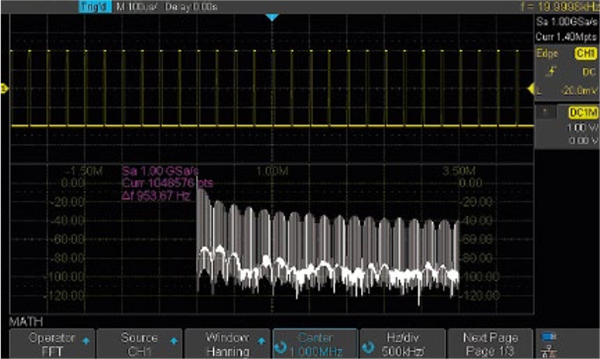

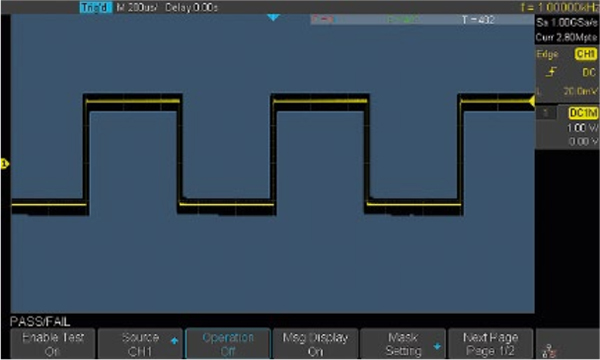

1 M points FFT	Hardware-Based High Speed Pass/Fail function
×	×
The new math co-processor enables FFT analysis of incoming signals using up to 1 M samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs.	The T3DSO1000 utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass/Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing.

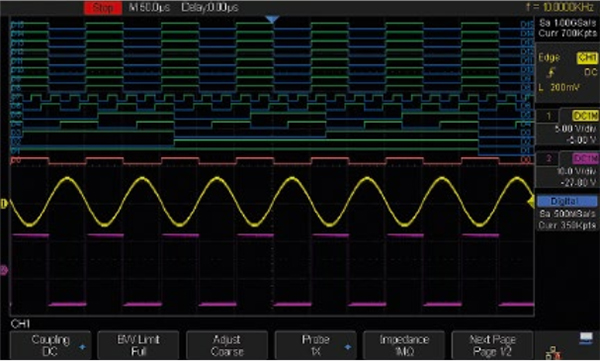

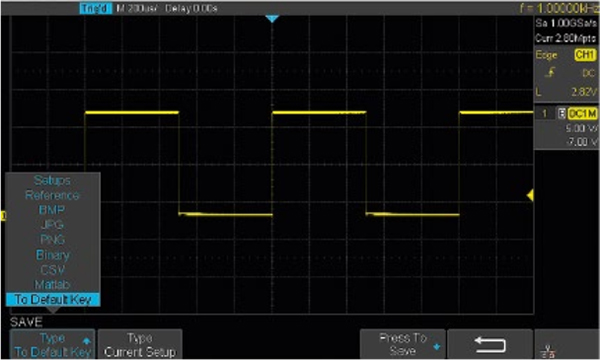

16 Digital Channels/MSO (four channel series only, option)	Customizable Default Key
×	×
16 digital channels enables users to acquire and trigger on the waveforms then analyze the pattern, simultaneously with one instrument. Color coded logic levels clearly differentiate high and low states.	The current parameters of the oscilloscope can be preset to Default Key through the Save menu.

The T3DSO1000 4 channel series can search events specified by the user in a frame. It can also navigate by time (delay position) and historical frames.   T3DSO1000 can control the USB AWG module, control an independent Teledyne Test Tools T3AFG instrument, scan an object’s amplitude and phase frequency response, and display the data as a Bode Plot. It can also show the result lists, and export the data to a USB disk.
