The SPG600 and SPG300 each provide four black-burst output channels which may be independently timed over the full NTSC or PAL color frame range. The black-burst output channels can be configured as a black-burst or a test signal output, providing outstanding flexibility to handle your production facility's needs. In analog-to-digital transition environments especially, the sync generator needs to provide a variety of sync outputs. The SPG600 and SPG300 are suitable for use as a master sync generator for small facilities or as a slave sync generator in larger environments. With Option 02 the SPG600 can provide four additional black-burst outputs, and with Option 01 the fine timing offset can be individually adjusted for each black-burst output in 0.1 ns increments, to support timing adjustments to analog systems.
The SPG600 and SPG300 also provide basic test signals for analog facilities. These test signal outputs can include ID text (up to 20 characters) or logo insertion. The ID text or logo may be positioned anywhere in the viewable area and, if desired, be made to blink.

The SPG600 and SPG300 provide two independently timed SD SDI black outputs with full frame range for 525/60 or 625/50. The SD SDI black output channel can be configured to provide SD SDI black or SD SDI test signals, similar to the analog black-burst outputs. With Option 03 the SPG600 offers two additional SD SDI black outputs.
The SPG600 and SPG300 also provide fundamental test signals for digital broadcast environments, which are selected individually from the analog test signals. As with the analog outputs, up to 20 characters of ID text or your logo can be inserted into the signal, positioned anywhere in the image, and, if desired, set to blink.
There are 16 channels of embedded audio which can be active in the SD SDI outputs. Audio Click (1 s, 2 s, 3 s, and 4 s) is available for easy channel identification.

The SPG600 provides four BNC connectors and two XLR connectors for AES/EBU Digital Audio. Frequency and level can be set on the eight AES/EBU unbalanced outputs, and each channel can have separate Audio Click channel identification. The two XLR balanced outputs can be set up to match the 1+2 and 3+4 BNC outputs. One-word clock output is available.

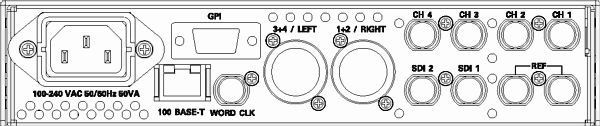

The SPG300 provides two XLR connectors for AES/EBU Digital Audio, and provides a one-word clock output.

The default setting for the two XLR outputs is AES/EBU Digital Audio. For analog audio applications, these two XLR outputs can be configured as two analog audio outputs. Frequency, level, and audio identification can be set on each channel.

The SPG600 and SPG300 both support SNMP, making it easy to integrate these generators into automated service and maintenance functions. The Java applet based remote control makes it easy to remotely control these generators, and the remote monitoring software gives you a view of SPG600 or SPG300 operation at a distance. The SPG600 and SPG300 also provide traditional GPI features for reporting alarms and recalling presets.
