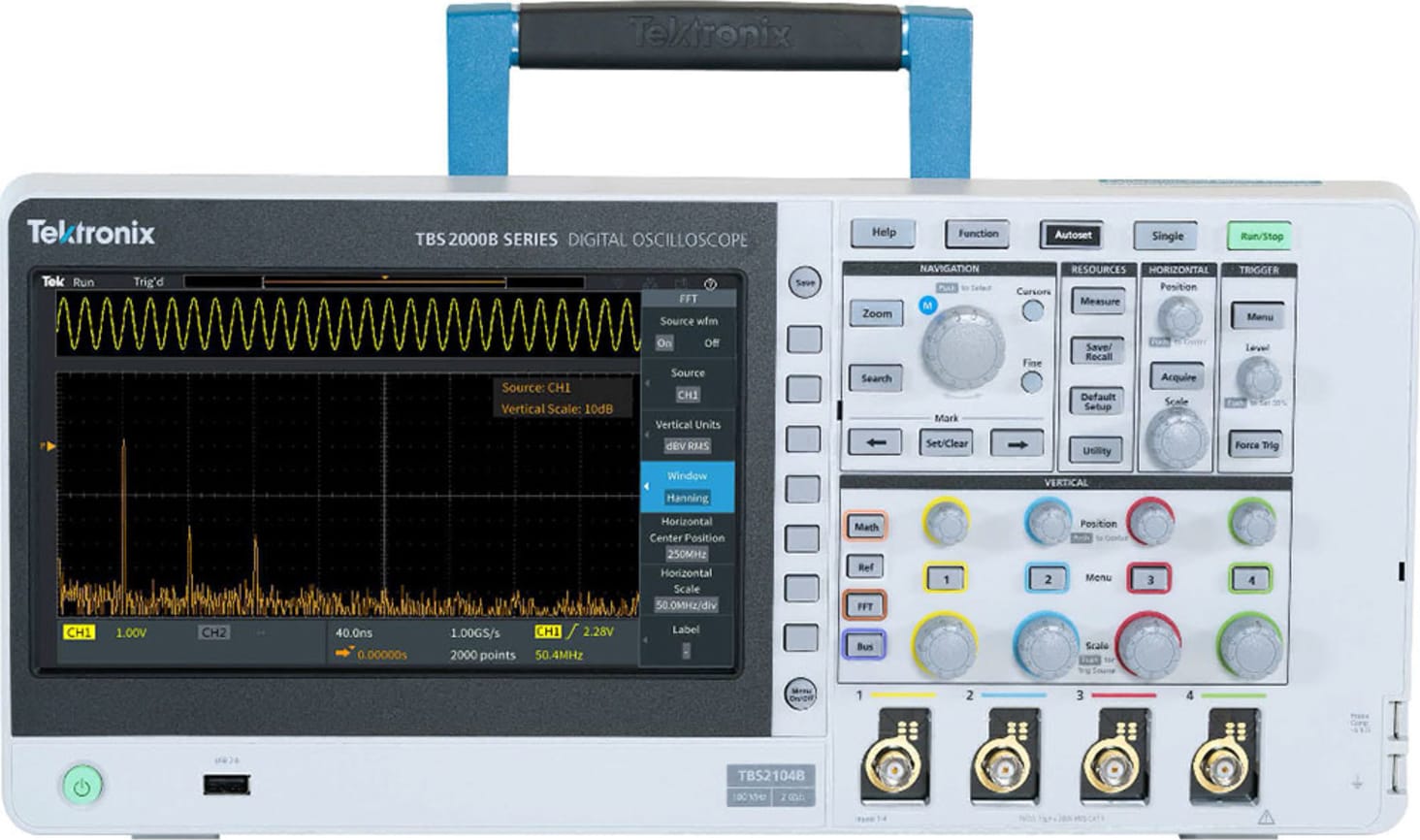

| Channels |
4 |
| Bandwidth |
100 MHz |
| Max Sample Rate |
2 GS/s - Half
Channel
1 GS/s - All Channels |
| Record length |
5 M points |
| Hardware bandwidth limits |
20 MHz |
| Input coupling |
DC or AC |
| Input impedance |
1 MΩ ± 1 %, 13 pF ± 1.5 pF |
| Input sensitivity range |
1mV/div to 10 V/div |
| Vertical resolution |
8 bits |
| Maximum input voltage, 1 MΩ |
300 VRMS, Installation header II; with peaks ≤ ±450 V |
| Sample |
Acquire sampled values. |
| Peak Detect |
Captures glitches as narrow as 3.5 ns at all sweep speeds. |
| Average |
From 2 to 512 waveforms included in average. |
| Hi-Res |
Averages multiple sample of one acquisition interval into one waveform point. |
| Roll |
Scrolls waveforms right to left across the screen at sweep speeds slower than or equal to 40 ms/div. |
| All units |
Ch 1 - Ch 2
Ch 2 - Ch 1
Ch 1 + Ch 2
Ch 1 X Ch 2
FFT |
| 4 channel units |
Ch 3 - Ch 4
Ch 3 + Ch 4
Ch 4 - Ch 3
Ch 3 X Ch 4 |
| DC balance |
± (1 mV +0.1 div) |
| DC gain accuracy |
± 2% 10 V/div through 5 mV/div
± 3% typical 1 mV/div |
| Average of > 16 waveforms |
±((DC Gain Accuracy) X |reading - (offset - position)| + Offset Accuracy + 0.11 div + 1 mV) |
| Delta Volts between any two averages of ≥16 waveforms acquired with the same oscilloscope setup and ambient conditions |
±(DC Gain Accuracy X |reading| + 0.08 div + 1.4 mV) |
| Vertical position range |
± 5 divisions |
| Volts/Div setting |
1 MΩ, Input |
| 1 mV/Div to 50 mV/Div |
±1 V |
| 51 mV/div to 505 mV/div |
± 10 V |
| 510 mV/div to 10 V/div |
± 100 V |
| 200 MHz models |
DC to >200 MHz |
| 100 MHz models |
DC to ≥100 MHz |
| 70 MHz models |
DC to ≥70 MHz |
| Common mode rejection ratio (CMRR), typical |
100:1 at 60 Hz, reducing to 10:1 with 50 MHz sine wave with equal Volts/div and coupling settings on each channel. |
| Maximum duration of time captured at highest sample rate (all channels) |
5 ms |
| Time base range |
TBS220xB, TBS207xB, TBS210xB: 1 ns/div to 100 sec/div |
| Seconds division range |
TBS207xB, TBS210xB, TBS220xB: 1 ns/div to 100 sec/div in a 1-2-4 sequence |
| Time-base delay time range |
-15 divisions to 5000 s |
| Deskew range |
±100 ns |
| Time base accuracy |
±25 ppm over any ≥1 ms interval |
| Trigger modes |
Auto, Normal, and Single |
| Trigger holdoff range |
20 ns to 8 s |
| Edge |
Positive or negative slope on any channel. Coupling includes DC, HF reject, LF reject, and noise reject. |
| Pulse |
width Trigger on width of positive or negative pulses that are >, <, =, or ≠ a specified period of time. |
| Runt |
Trigger on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again. |
| Trigger |
coupling analog channels DC, Noise Reject, High Freq Reject, Low Freq Reject |
| Trigger level ranges |
Input channels: ± 4.90 divisions from center screen |
| Nonvolatile memory retention time, typical |
No time limit for Front Panel Settings, saved waveforms, setups, and calibration constants |
| Real-Time clock |
A programmable clock providing time in years, months, days, hours, minutes, and seconds |
| Cursors |
Time, amplitude, and screen |
| Automated measurements |
32, of which up to six can be displayed on-screen at any one time. Measurements include: Period, Frequency, Rise Time, Fall Time, Positive Duty Cycle, Negative Duty Cycle, Positive Pulse Width, Negative Pulse Width, Burst Width, Phase, Positive Overshoot, Negative Overshoot, Peak to Peak, Amplitude, High, Low, Max, Min, Mean, Cycle Mean, RMS, Cycle RMS, Positive Pulse Count, Negative Pulse Count, Rising Edge Count, Falling Edge Count, Area, Cycle Area, Delay FR, Delay FF, Delay FR, and Delay RR. |
| Gating |
Isolate the specific occurrence within an acquisition to take measurements on, using either the screen, between waveform cursors or full record length. |
| Arithmetic |
Add, subtract, and multiply waveforms. |
| FFT |
Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman-Harris. |
| Web page |
Built-in web page enables remote control of horizontal and vertical scale, trigger settings, and measurements. Allows waveform and image save to USB flash drive. |
| Display type |
9 inch (228 mm) wide format liquid crystal TFT color display. |
| Display resolution |
800 horizontal by 480 vertical displayed pixels (WVGA). |
| Waveform styles |
Vectors, Variable Persistence, and Infinite Persistence. |
| Graticules |
Grid, None. |
| Format |
YT and XY |
| USB 2.0 high-speed host port |
Supports USB mass storage devices, Wi-Fi dongle, One port available on rear panel and one on front panel. |
| Device port |
Rear-panel connector allows for communication/control of oscilloscope through USBTMC or GPIB with a TEK-USB-488 |
| Compatible USB-WIFI dongles |
NETGEAR WNA1000M, WNA3100M, D-LINK DWA-131, TP-LINK TL-WN823N |
| LAN port (Ethernet) |
RJ-45 connector, supports 10/100BASE-T |
| Amplitude |
5 V |
| Frequency |
1 kHz |
| Kensington-style lock |
Kensington-style lock |
| Power source voltage |
100 to 240 VAC RMS ±10% |
| Power source frequency |
47 Hz to 63 Hz (100 to 240 V)
360 Hz to 440 Hz (100 to 132 V |
| Power consumption |
80 W maximum |
| TBS2xx2B |
Height: 174.9 mm (6.89 in)
Width: 372.4 mm (14.66 in)
Depth: 103.3 mm (4.07 in) |
| TBS2xx4B |
Height: 201.5mm (7.93 in)
Width: 412.8 mm (16.25 in)
Depth: 128.1 mm (5.04 in) |
| Cooling clearance |
50 mm (2 in) required on left side and rear of instrument. |
| Operating |
0 °C to +50 °C (+32 ºF to 122 ºF) |
| Nonoperating |
-40 °C to +71 °C, (-40 ºF to 160 ºF) |
| Operating |
5% to 95% relative humidity (% RH) at up to +30° C
5% to 60% RH above +30° C up to +50° C non-condensing |
| Nonoperating |
5% to 95% RH (Relative Humidity) at up to +30° C
5% to 60% RH above +30° C up to +60° C non-condensing |
| Operating |
5% to 95% relative humidity (% RH) at up to +30 °C
5% to 60% RH above +30 °C up to +50 °C, noncondensing. |
| Nonoperating |
5% to 95% RH (Relative Humidity) at up to +30 °C
5% to 60% RH above +30 °C up to +60 °C, noncondensing. |
| Operating |
Up to 3,000 meters (9,842 feet). |
| Non-Operating |
Up to 12,000 meters (39,370 feet).
Altitude is limited by possible damage to LCD at higher altitudes. This damage is independent of operation. |
| Electromagnetic compatibility |
EC Council Directive 2014/30/EU |
| Safety |
UL61010-1, UL61010-2-030, CAN/CSA-C22.2 No. 61010.1, CAN/CSA-C22.2 No. 61010-2:030; complies with the Low Voltage
Directive 2014/35/EU for Product Safety |
