0 reviews | Model: TekBox TBWADA/bundle
amplifier set 1 TBWA2/20dB, 1 TBWA2/40dB, 1 TBDA1/14, 1 TBDA1/28
Your Price: $499.00
Sign-in for EDU Pricing!
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(6)
In Stock!

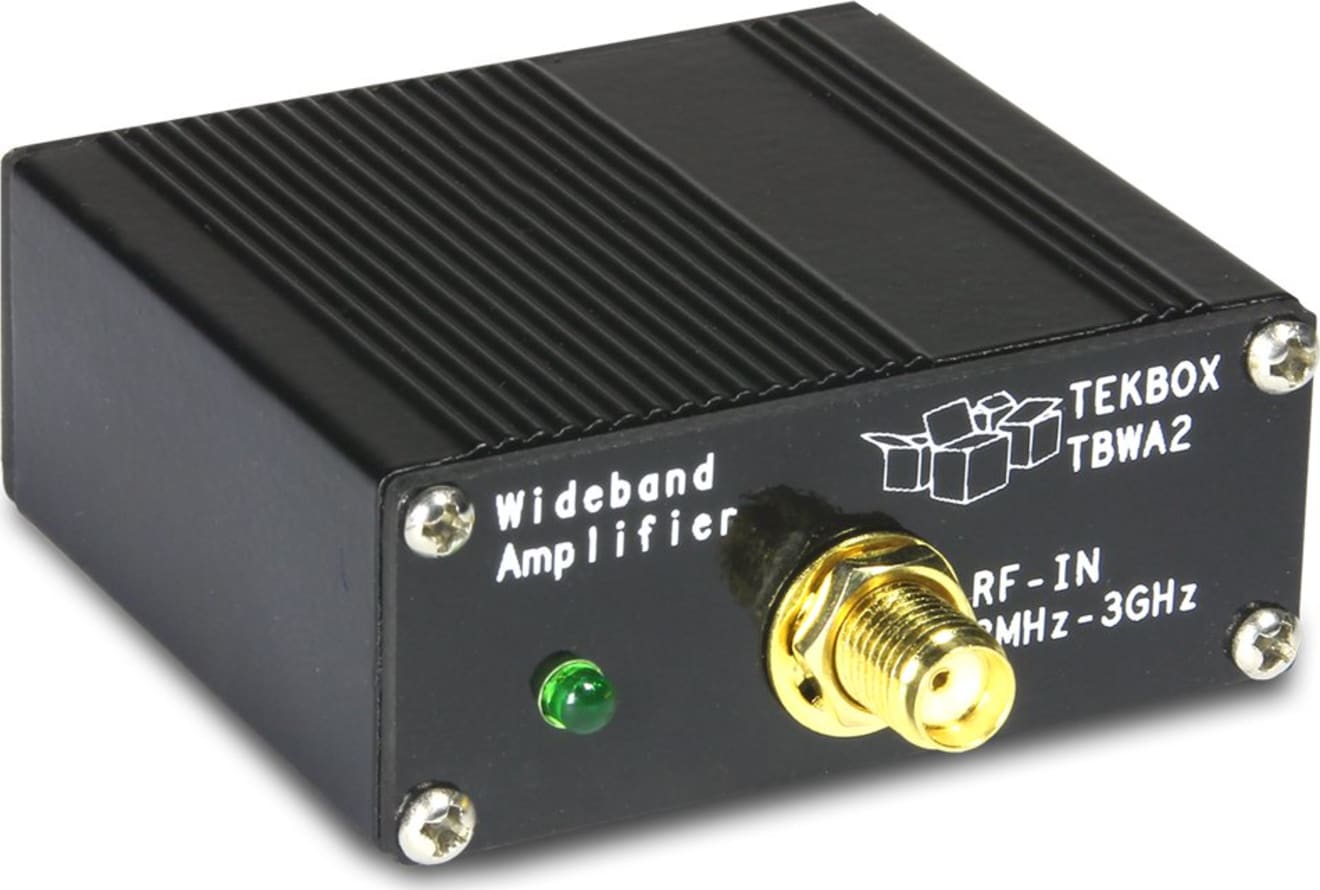

The TBWA2/20dB and TBWA2/40db wideband amplifiers are connected between EMC probe and Spectrum Analyzer to increase the dynamic range of the measurements. The larger the tip diameter, the lower the coupling loss at frequencies below 1GHz. At frequencies above 1GHz, the performance in terms of coupling loss of all probes is similar. The H20 has a resonance in the range of 1.3GHz. The smaller the loop, the better the spatial response.
TheTBDA1wideband driver amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a frequency range of 40MHz to 3GHz and an output power of + 22 dBm at 1dB compression, they are ideal to boost the amplitude of low power RF sources or to drive power amplifier stages. The TBDA1 wideband amplifiers are available with 14dB or 28dB gain.
Part Number
Frequency range [MHz]
Gain [dB] typ.
N.F. [dB] typ
Max. pwr. @ P1dB [dBm]
IP3 out
[dBm]
Max. input pwr. rating [dBm]
Supply voltage [V]
Supply current [mA]
Application
TBWA2/20dB
1.5 - 3000
20
4.5
35
10
5
110
EMC probe amplifier
TBWA2/40dB
2.5 - 3000
40
-10
210
TBDA1/14
20 - 3000
14
4
22
115
Wideband driver amplifier
TBDA1/28
28
6
225
