RF Surface Current Monitoring Probe, 30kHz to 400MHz

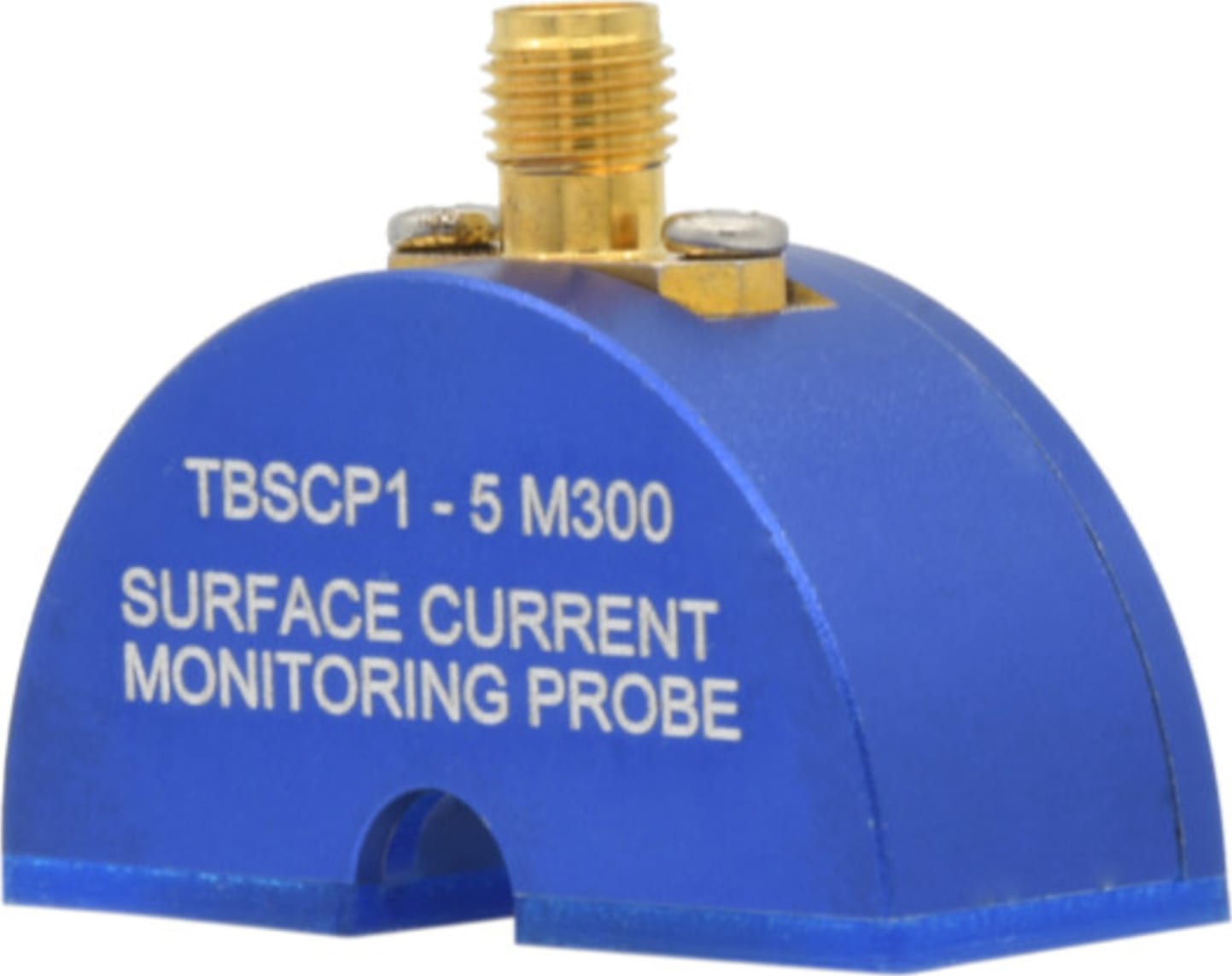

The TekBox TBSCP1-5M300 is an RF surface current monitoring probe designed to measure RF currents flowing on surfaces such as PCB ground planes or traces, metal planes, or wires. The probe has a very flat response from 5 MHz to 300 MHz and is characterized over the frequency range from 30kHz to 400MHz. The footprint of the RF current monitoring probe measures 40mm x 15mm. The transfer impedance is -7 dB Ohm with a typical 3dB bandwidth from 5MHz to 300MHz.
