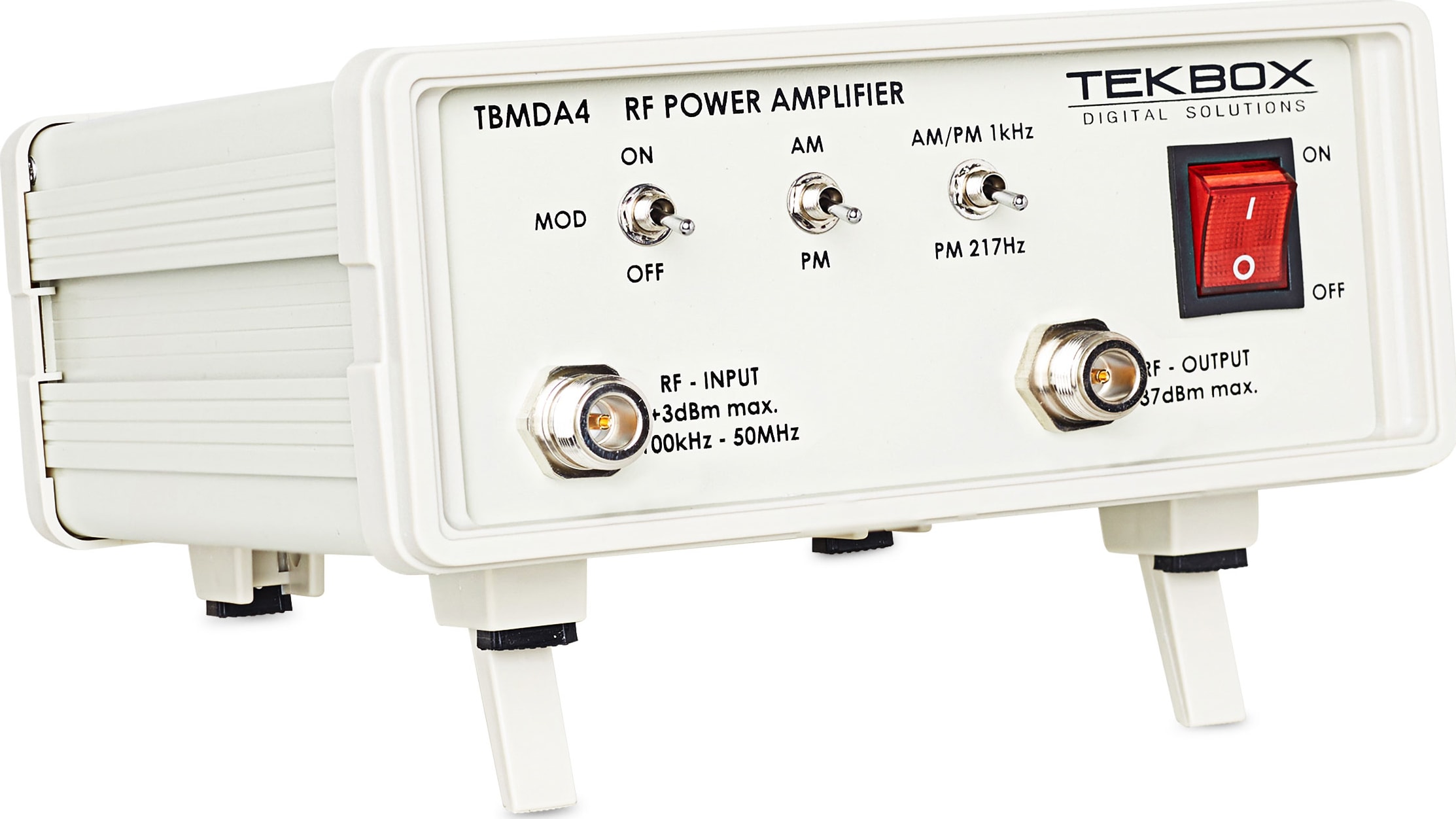

TekBox TBMDA4 Modulated Wideband Power Amplifier
Application:
- General-purpose power amplifier
- Signal source for immunity testing, driving near field probes
- Signal source for immunity testing, driving TEM Cells
The TBMDA4 modulated wideband power amplifier is designed in order to create an inexpensive signal source for immunity testing of electronic building blocks and products. It is designed to be driven by the tracking generator output of spectrum analyzers. With an input power range of -5 dBm…0 dBm, it can boost the output power of a tracking generator up to 5W. With a frequency range from 100 kHz to 50 MHz, it is an ideal complement to the TBMDA3, which covers 10 MHz to 1 GHz.
The TBMDA4 is ideal to drive Tekbox near field probes in order to find the sensitive spot of an electronic circuit or to create electric fields up to 550V/m when driving the Tekbox TEM Cell TBTC0, 300V/m when driving the TBTC1, 150V/m when driving the TBTC2 or 100V/m when driving the TBTC3. Test signals for immunity testing can be CW, AM or PM modulated. Consequently, the TBMDA4 provides built in modulation capability to generate 1 kHz AM or PM signals. In PM mode, the TBMDA4 can also generate a 217 Hz Signal with 12.5% duty cycle in order to simulate mobile phone TDMA noise.
Small Signal Gain (measured with Pin = – 20 dBm):
| 50 kHz |
100 kHz |
500 kHz |
1 MHz |
5 MHz |
10 MHz |
25 MHz |
50 MHz |
70 MHz |
| 39.3 dB |
44.9 dB |
47.1 dB |
47.2 dB |
47.3 dB |
47.5 dB |
48.6 dB |
49.9 dB |
44.5 dB |
Figure 1 - 1 kHz, 80 % AM envelope, 25 MHz
Figure 2 - 1 kHz, 50 % PM envelope, 25 MHz
Figure 3 - 217 Hz, 12.5 % PM envelope, 25 MHz
Applications
Immunity testing using a TEM cell
Figure 4 - immunity testing set up
Immunity testing using near field probes
Figure 5 - immunity testing set up
PC Software for immunity testing
The Tekbox EMCview SW is regularly updated and now supports immunity testing with a feature for automated tracking generator control. This significantly simplifies immunity testing, especially in case of repeated testing during validation of DUT modifications/improvements.
Tekbox EMCview currently supports Rigol, Siglent, R&S FPC and FPH series spectrum analyzers.
Screenshot of the tracking generator control feature of EMCview
