• Frequency range: 9 kHz to 30 MHz
• Impedance: 50 Ω ║ (50 µH + 5 Ω)
• Artificial hand: 220 pF + 511 Ω
• Switchable PE: 50 Ω ║ 50 µH
• Limiter / attenuator: 150 kHz to 30 MHz; 10 dB
• Air core inductors

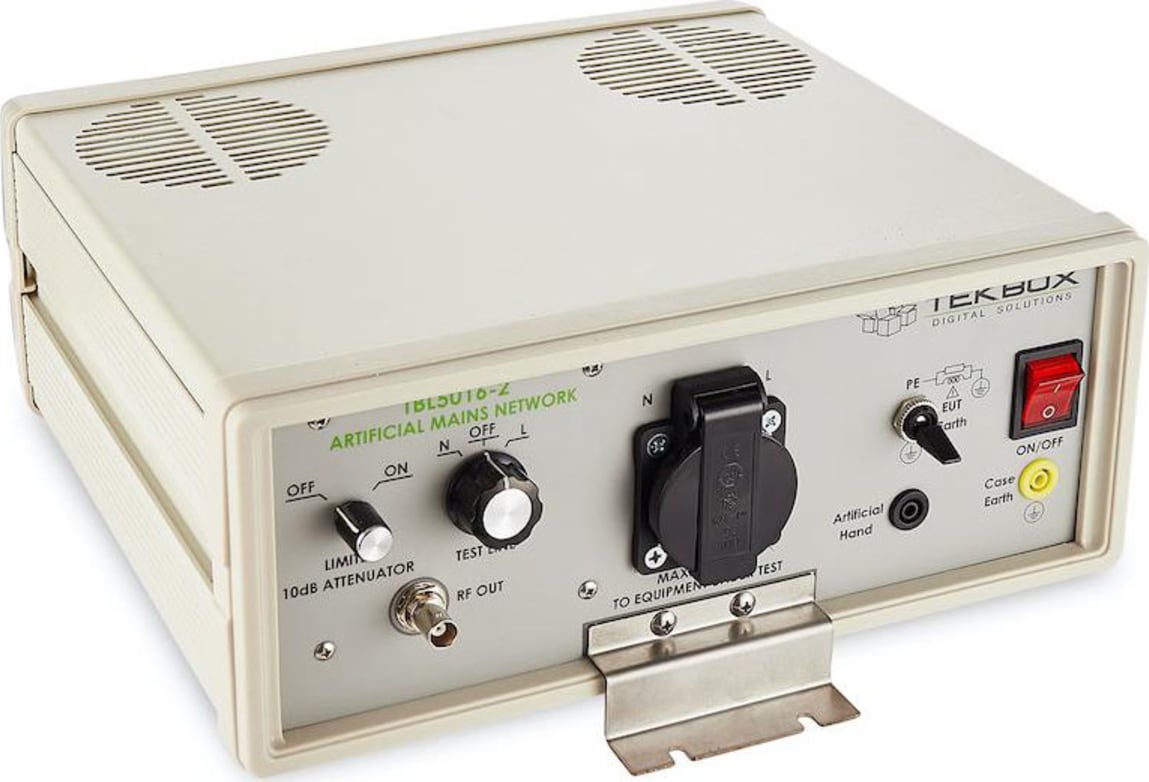

The TBL5016-2 is a Line Impedance Stabilization Network for the measurement of line-conducted interference within the range of 9kHz to 30MHz, according to the CISPR 16-1-2 standard.

The device is designed for testing single phase, AC-powered equipment with supply voltages up to maximum 240V and 16A.

Conducted noise can be measured on the phase and on the neutral conductor. The TBL5016-2 is equipped with a switchable limiter/attenuator and an artificial hand connection.

The device is available with country-specific DUT connectors.

Application

EMC conducted noise measurements
