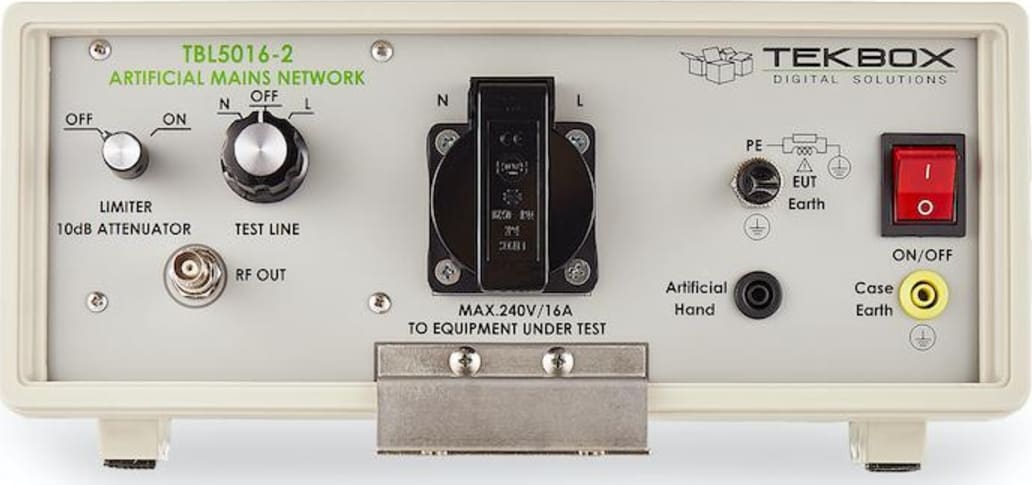

50uH 16A Line Impedance Stabilisation Network LISN
The TBL5016-2 is a Line Impedance Stabilization Network for the measurement of line-conducted interference within the range of 9kHz to 30MHz, according to the CISPR 16-1-2 standard.
The device is designed for testing single phase, AC-powered equipment with supply voltages up to maximum 240V and 16A.
Conducted noise can be measured on the phase and on the neutral conductor. The TBL5016-2 is equipped with a switchable limiter/attenuator and an artificial hand connection.
The device is available with country-specific DUT connectors.
