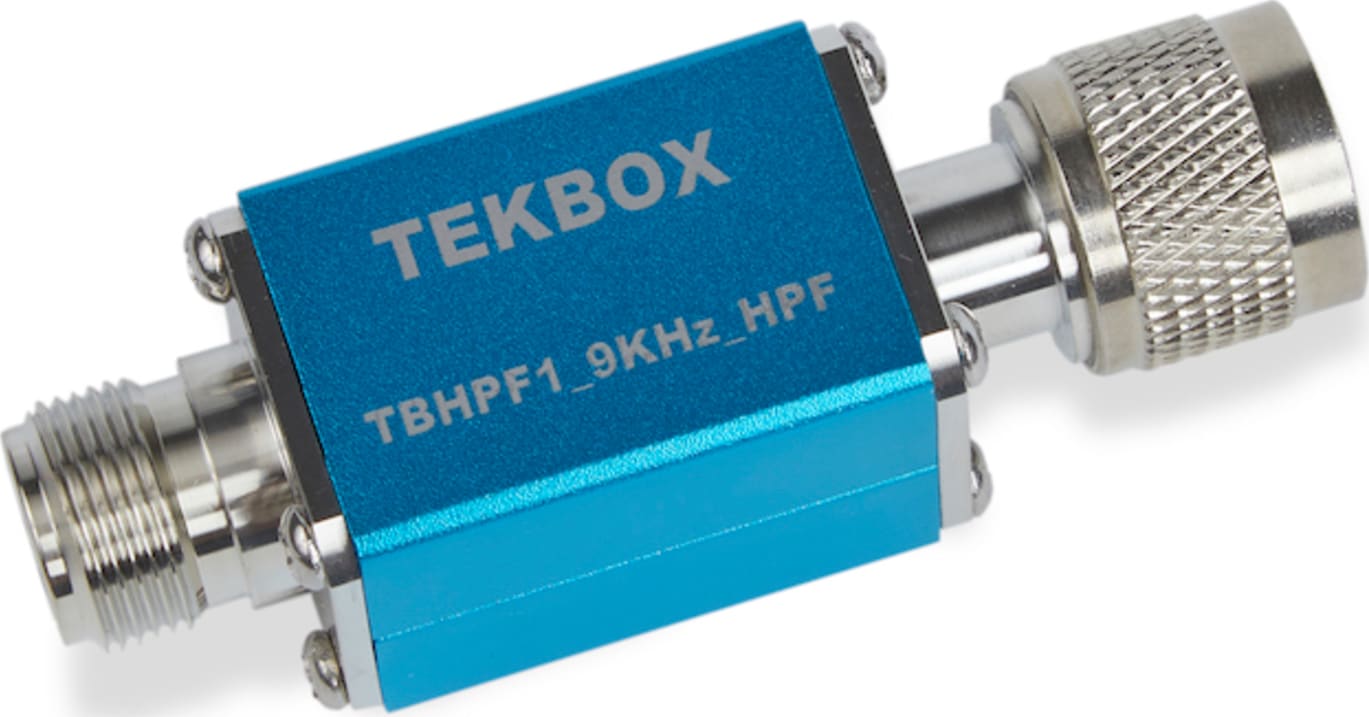

TekBox TBHPF1-9kHz - 9 kHz High Pass Filter (N-female, N-male)

Name: TekBox TBHPF1-9kHz - 9 kHz High Pass Filter (N-female, N-male)
Brand: TekBox
SKU: TekBoxTBHPF1-9kHz
Price: 89.00 USD
Availability: InStock

0 reviews | Model: TekBox TBHPF1-9kHz

Compare

9kHz High Pass Filter

High Pass Filter, reflective, 50 Ohm
3dB bandwidth: 9 kHz - 3 GHz
Maximum input voltage: 100V; 250V for < 5 sec.
Maximum permitted input current at frequencies < 9kHz and open output: 160 mA
Maximum input power at frequencies 20 kHz - 1 GHz: 10W
Resistive dampening to prevent pulses with high rise time cause excessive ringing
Connectors: N-Male / N-Female

View Product Details

Your Price: $89.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

TekBox TBHPF1-9kHz

High Pass Filter, reflective, 50 Ohm
3dB bandwidth: 9 kHz - 3 GHz
Maximum input voltage: 100V; 250V for < 5 sec.
Maximum permitted input current at frequencies < 9kHz and open output: 160 mA
Maximum input power at frequencies 20 kHz - 1 GHz: 10W

9 kHz High Pass Filter (N-female, N-male)

9 kHz Highpass Filter for protection of spectrum analyzer or EMI-receiver RF inputs against high amplitude subharmonics and residual 50 Hz voltage in conducted emission measurement set ups.
