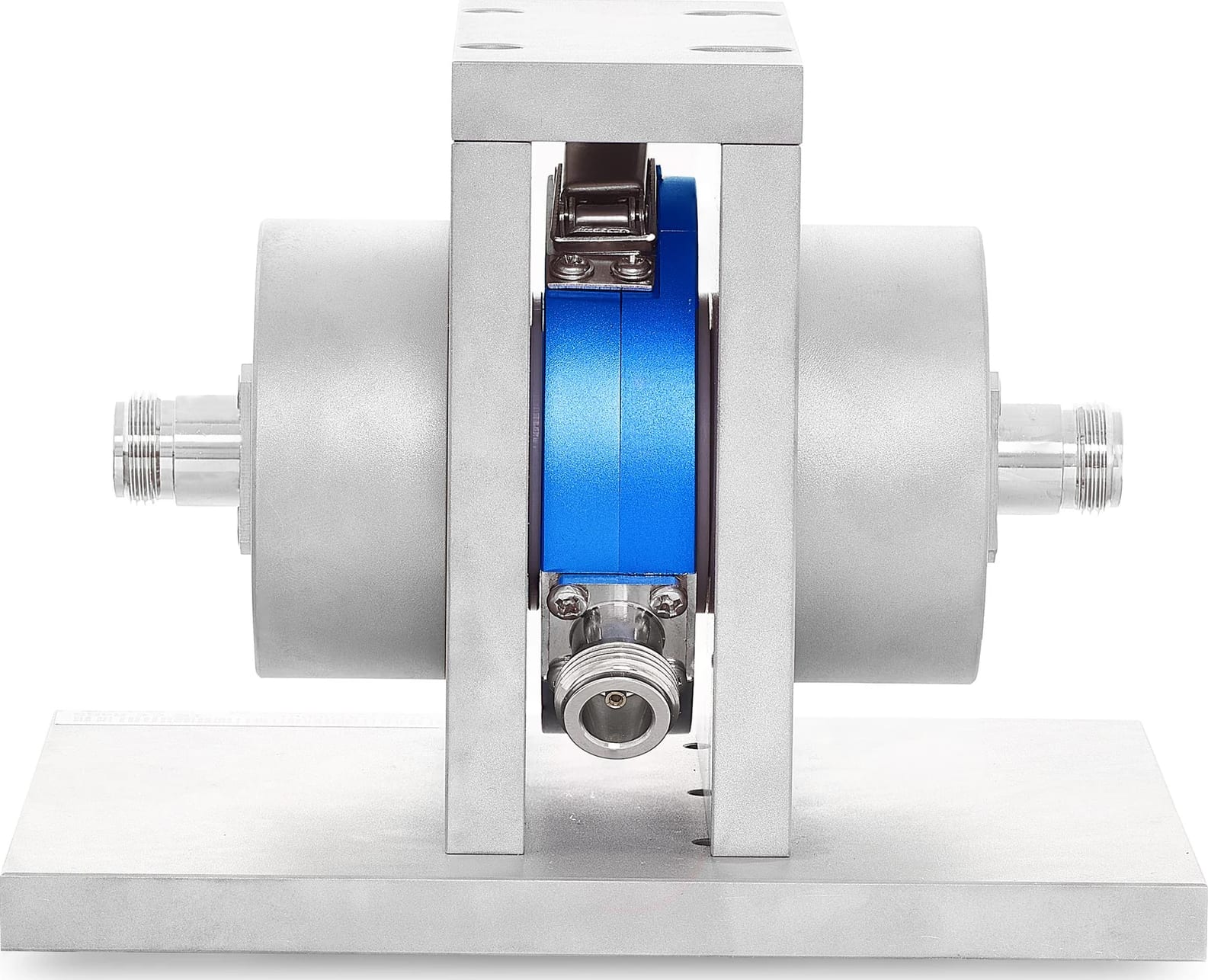

TekBox TBCP3-CAL - Calibration Fixture for TBCP3 Current Probe Series, 50 Ω Termination

The TBCP1_CAL, TBCP2_CAL, TBCP3_CAL and TBCP4_CAL are calibration fixtures corresponding with the TBCP1, TBCP2, TBCP3 and TBCP4 series of RF current monitoring probes.

RF current probe calibration fixtures are used in combination with a Vector Network Analyzer or Spectrum Analyzer equipped with tracking generator in order to measure the transfer impedance of RF current monitoring probes.

Every Tekbox RF current monitoring probes is shipped together with a corresponding calibration sheet containing the transfer impedance values vs frequency. Consequently there is no acute need to acquire a calibration fixture together with the probe. Calibration fixtures can be used for periodic inspection of the probes or for health checks, in case that a probe dropped and there is suspect that its ferrite core may have suffered damage.
