5 (2 Reviews) | UPC: 094308390956 | Model: TekBox TBCP2-750

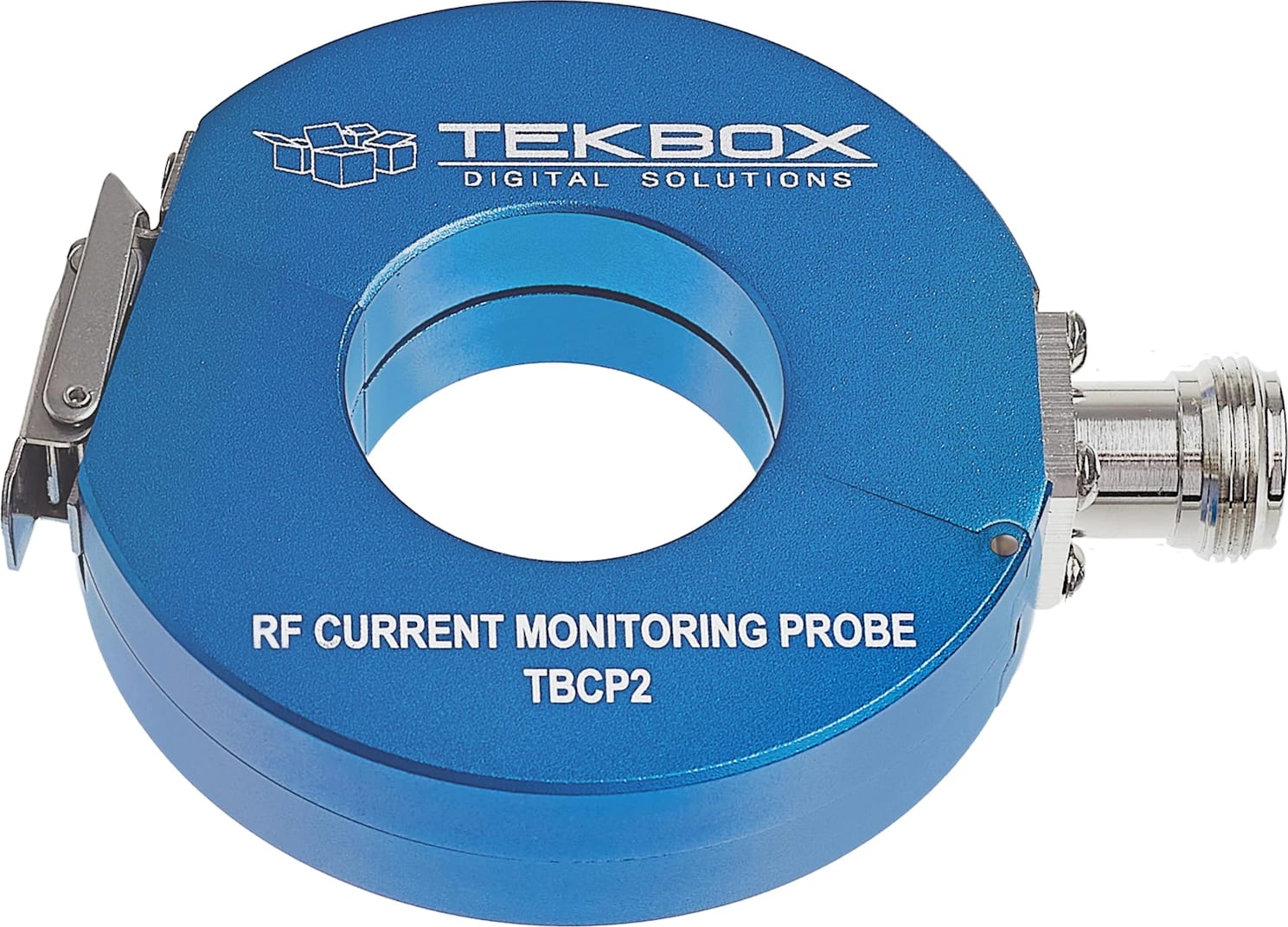

Current Monitoring Probe, snap on aperture 32mm
Your Price: $729.00
Sign-in for EDU Pricing!
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
The TBCP2-750 is a snap-on RF current monitoring probe. It has a very flat response with a 3dB bandwidth of 750 MHz and is characterized and usable over the frequency range from 10kHz to 750 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is > 15 dB Ohm in the range from 1 MHz to 750 MHz.

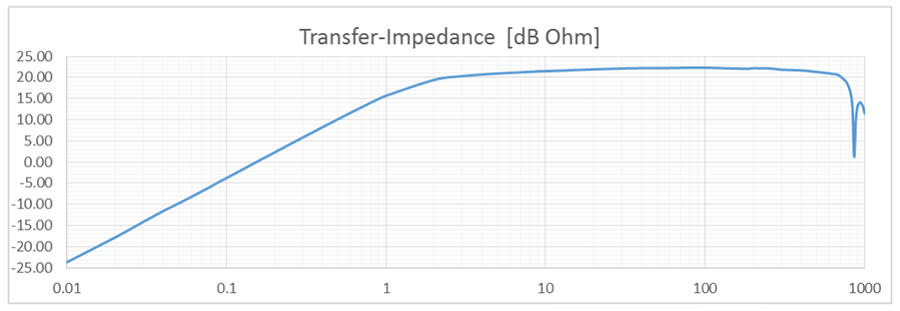

Figure1: typical transfer impedance: 10 kHz to 1 GHz, linear
Figure2: typical transfer impedance: 10 kHz to 1 GHz, logarithmic
