Snap-On RF Current Monitoring Probes (10 Hz - 500 MHz)

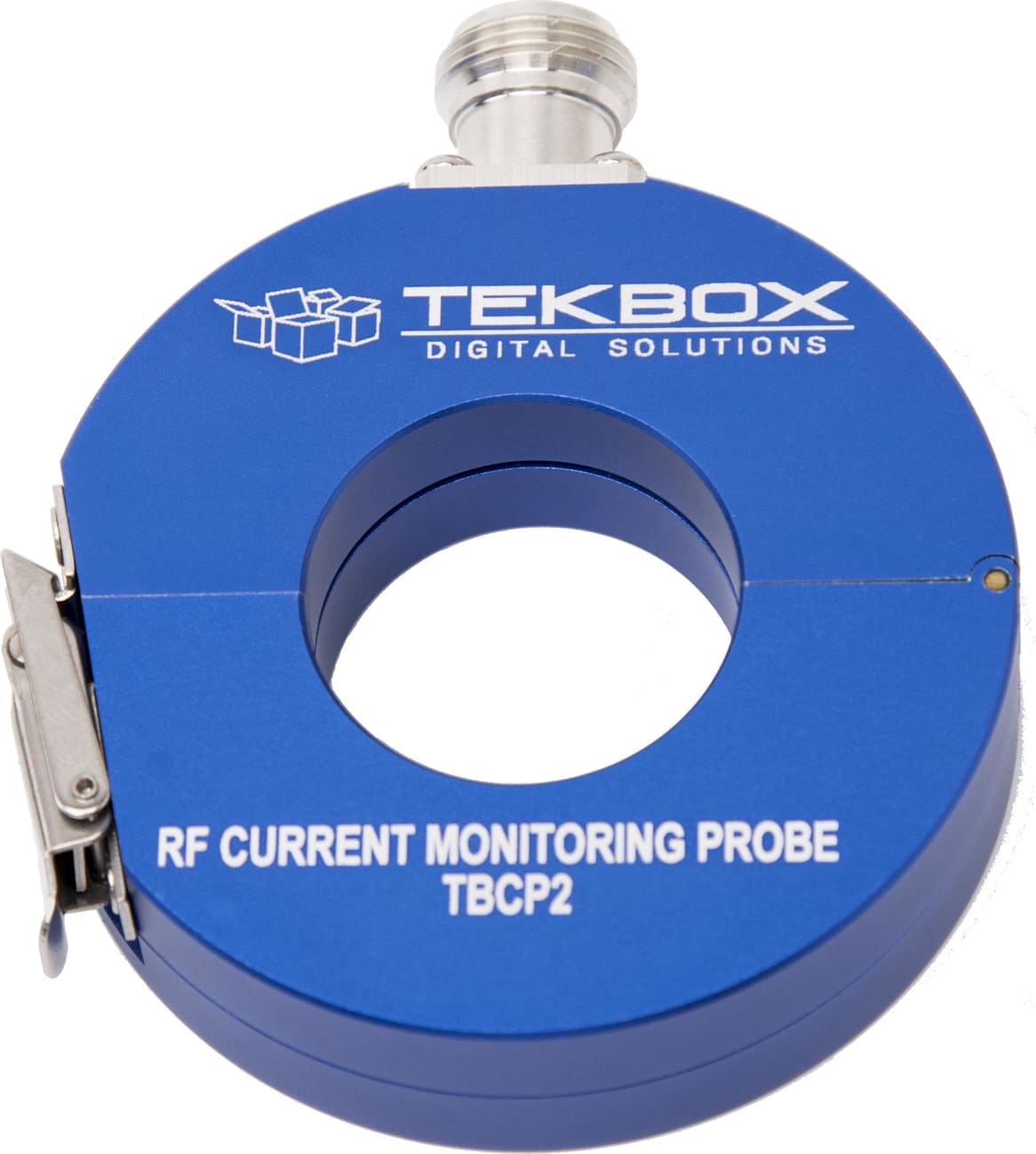

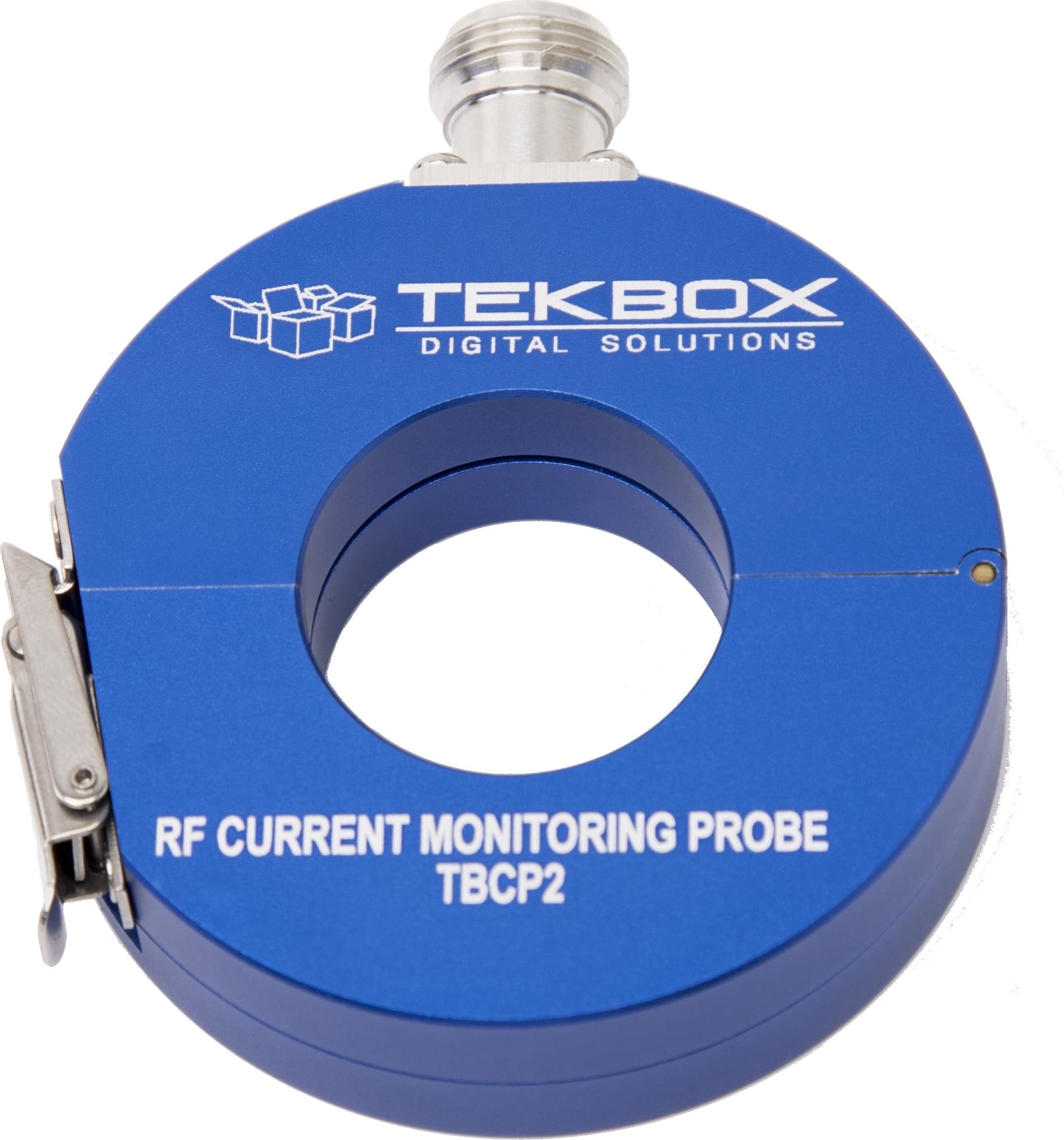

The TBCP2-30K400 is a snap-on RF current monitoring probe, expanding the Tekbox product range of affordable EMC pre-compliance test equipment.
The probe has a very flat response from 30kHz to 400 MHz and is characterized over the frequency range from 10 Hz to 500 MHz. The TBCP5-30K400 is for RF current monitoring applications that need higher sensitivity in the low-frequency range, compared to our other current monitoring probe series. The higher sensitivity at low frequencies comes at the cost of a slightly reduced overall trans-impedance.
The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is 3 dB Ohm with a 3dB bandwidth from 30kHz to 400 MHz.
