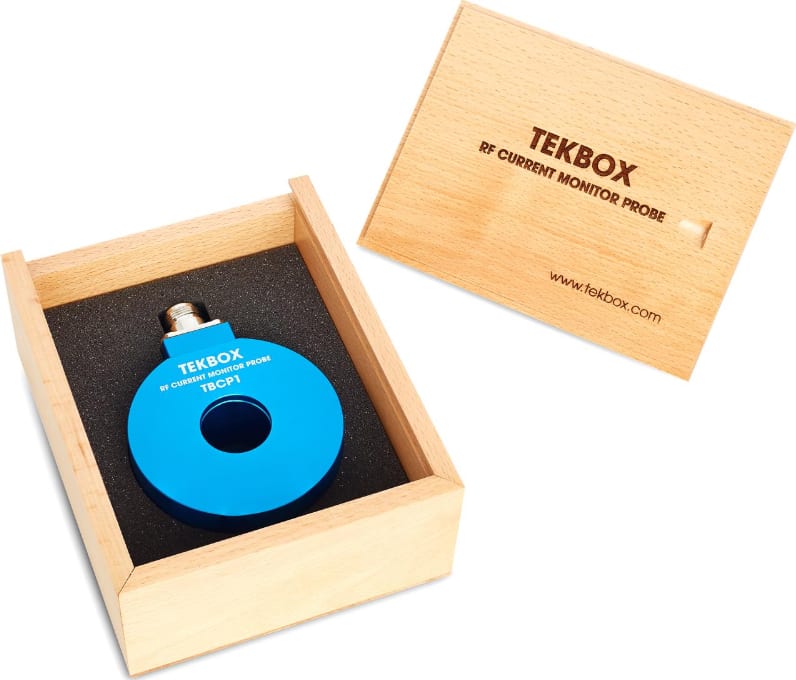

TekBox TBCP1-200 RF Current Monitoring Probe

Name: TekBox TBCP1-200 RF Current Monitoring Probe
Brand: TekBox
SKU: TekBoxTBCP1-200
Price: 299.00 USD
Availability: InStock
Rating: 5.00 (2 reviews)

5 (2 Reviews) | Model: TekBox TBCP1-200

Compare

Current Monitoring Probe, fixed aperture 25mm

3dB bandwidth of approximately 200 MHz
Characterized and usable over the frequency range from 10kHz to 500 MHz
The aperture of the RF current monitoring probe is 25 mm
Transfer impedance is > 14 dB Ohm in the range from 40 kHz to 200 MHz

View Product Details

Your Price: $299.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	TekBox TBCP1-200 Current Monitoring Probe, fixed aperture 25mm	TekBox TBCP1-250 Current Monitoring Probe, fixed aperture 25mm	TekBox TBCP1-500 Current Monitoring Probe, fixed aperture 25mm	TekBox TBCP2-250 Current Monitoring Probe, snap on aperture 32mm	TekBox TBCP2-500 Current Monitoring Probe, snap on aperture 32mm	TekBox TBCP2-750 Current Monitoring Probe, snap on aperture 32mm	TekBox TBCP4-250 Current Monitoring Probe, fixed aperture 32mm	TekBox TBCP4-750 Current Monitoring Probe, fixed aperture 32mm	TekBox TBCP4-500 Current Monitoring Probe, fixed aperture 32mm	TekBox TBCP2-30K400 Current Monitoring Probe, snap on aperture 32mm
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

TekBox TBCP RF Current Monitoring Probe

3dB bandwidth of approximately 200 MHz
Characterized and usable over the frequency range from 10kHz to 500 MHz
The aperture of the RF current monitoring probe is 25 mm

The TBCP1-200 is a fixed aperture RF current monitoring probe, expanding the Tekbox product range of affordable EMC pre-compliance test equipment. The probe has a 3dB bandwidth of approximately 200 MHz and is characterized and usable over the frequency range from 10kHz to 500 MHz.

The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance is > 14 dB Ohm in the range from 40 kHz to 200 MHz.

General Specifications
Characterized frequency range	10 kHz to 500 MHz
Aperture diameter	25 mm
Outside diameter	76 mm
Height	31 mm
Weight	320 g
Connector type	N female
Transfer impedance	3 to 17dBΩ
Max. primary current (DC -400 Hz)	80 A
Max. primary current (RF)	3 A
Max. core temperature	125 °C

Accessories/Probes/RF Probes Template
Maximum Bandwidth	200 MHz
Test Equipment General Attributes
Product Weight	0.70 LBS
Product Height	1.22 IN
HTS/Schedule B Number	9030908961
ECCN Number	EAR99
Country of Origin	Vietnam
