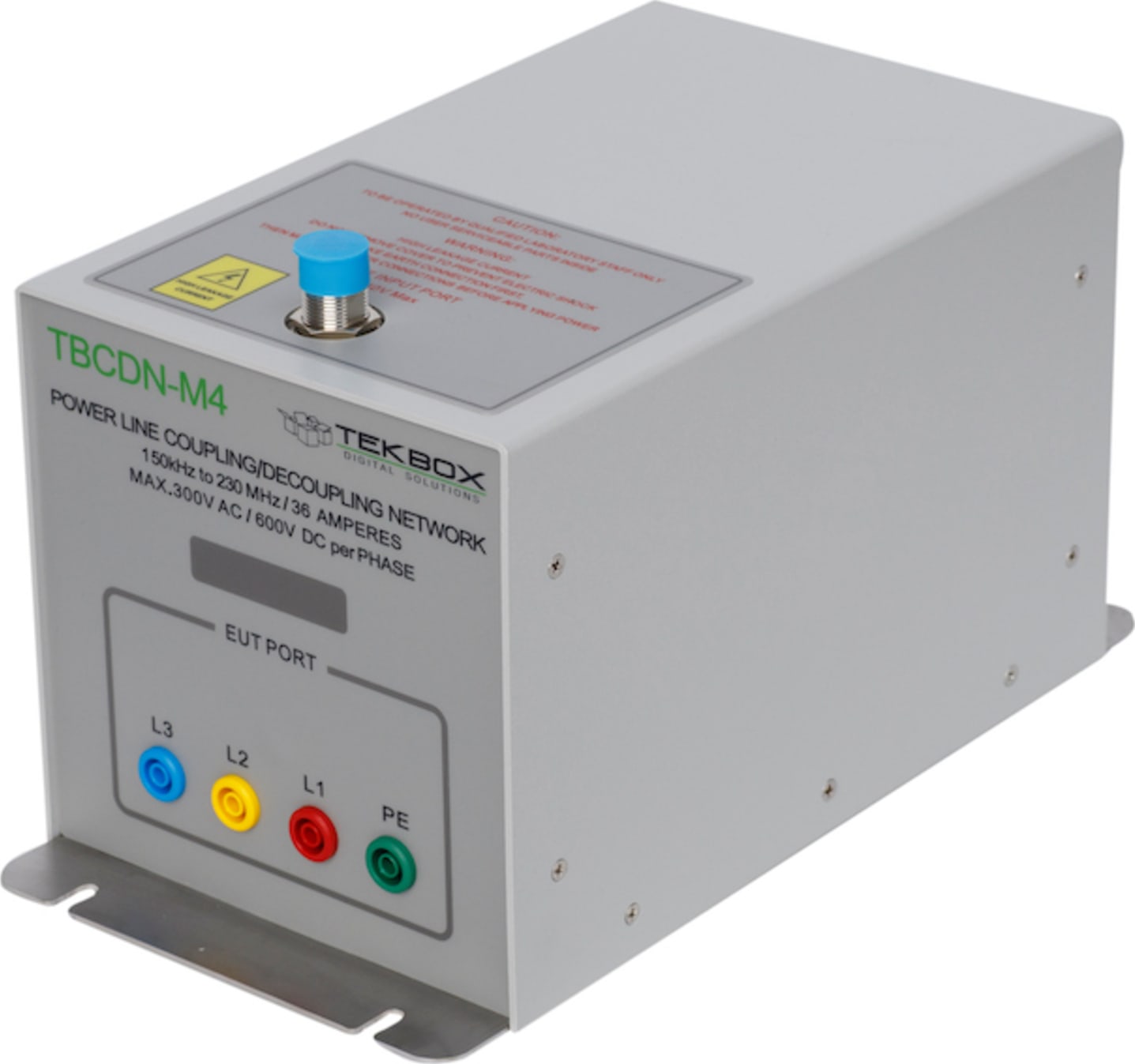

TekBox TBCDN-M4 - Coupling Decoupling Network M4 (36A Max Current)

Name: TekBox TBCDN-M4 - Coupling Decoupling Network M4 (36A Max Current)
Brand: TekBox
SKU: TekBoxTBCDN-M4
Price: 1375.00 USD
Availability: InStock

0 reviews | Model: TekBox TBCDN-M4

Compare

In Stock:

Coupling Decoupling Network M4 (36A Max Current)

Maximum supply voltage: 300V AC, 600V DC
Maximum current: 36A
Frequency range: 150 kHz – 230 MHz
Maximum RF input power: 6.5W CW
Maximum RF input voltage: 32 V
Common mode impedance: 150 kHz – 24 MHz: 150 Ω ± 20 Ω ; 24 MHz – 80 MHz: 150 Ω + 60 Ω / – 45 Ω ; 80 MHz – 230 MHz: 150 Ω ± 60 Ω
Voltage Division Ratio: 150 kHz – 80 MHz: 9.5 dB ± 1 dB; 80 MHz – 230 MHz: 9.5 dB + 3 dB / – 2 dB
RF input connector: N – female
EUT / AE connectors: 4 mm banana safety jacks, 4mm slots in base plate for GND connection
Housing material: powder coated aluminium, stainless steel base plate

View Product Details

In Stock:

Items in This Series



Product	TekBox TBCDN-M4 Coupling Decoupling Network M4 (36A Max Current)	TekBox TBCDN-M1 Coupling Decoupling Network M1	TekBox TBCDN-M2 Coupling Decoupling Network M2	TekBox TBCDN-M3 Coupling Decoupling Network M3
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Add to cart

TekBox TBCDN-M4 Accessories

Choose a Category

Misc Connectors / Adapters

Misc Connectors / Adapters for the TekBox TBCDN-M4

TekBox TBCDN-50-150 50 Ohm to 150 Ohm N-male to N-female adapter

Catalog: TBCDN-50-150

(0)

In Stock!

Add to Cart

TekBox TBCDN-M4-AP Adapter Panel with Shorting Bar for M4 Coupling Decoupling Network...

Catalog: TBCDN-M4-AP

(0)

In Stock!

Add to Cart

TekBox TBCDN-M4

Maximum supply voltage: 300V AC, 600V DC
Maximum current: 36A
Frequency range: 150 kHz – 230 MHz
Maximum RF input power: 6.5W CW
Maximum RF input voltage: 32 V

Coupling Decoupling Network M4 (36A Max Current)

The TekBox TBCDN-M4 is a Coupling Decoupling Network for conducting immunity testing according to IEC 61000-4-6.

The TBCDN-M4 is compliant with IEC 61000-4-6 Annex D2. It is designed to inject common mode disturbance signals in the frequency range from 150 kHz to 230 MHz into unscreened AC and DC power supply lines.
